Installation Procedure

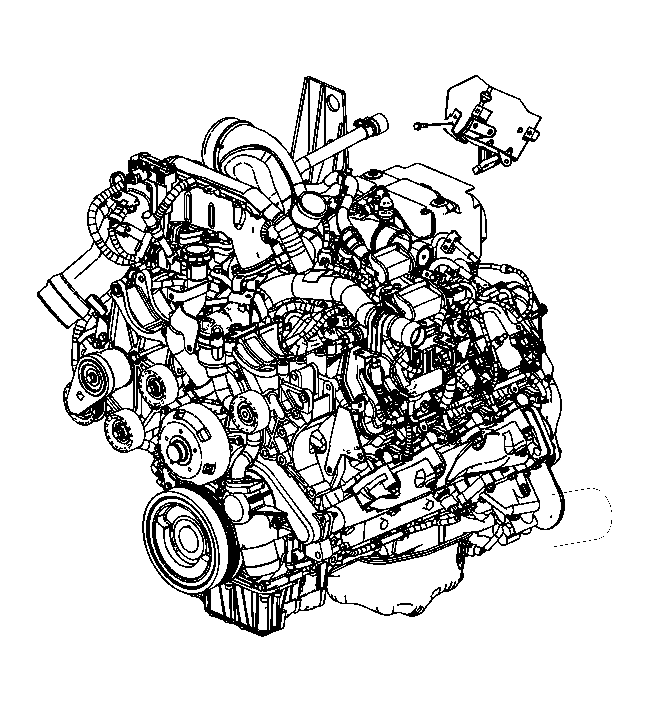

    Fig 1: Glow Plug Control Module
    GM1612208Courtesy of GENERAL MOTORS CORP.
  1. Install the glow plug control module bracket, if required.
    2. NOTE: Refer to Fastener Notice .
  2. Install the glow plug control module bracket bolts, if required.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

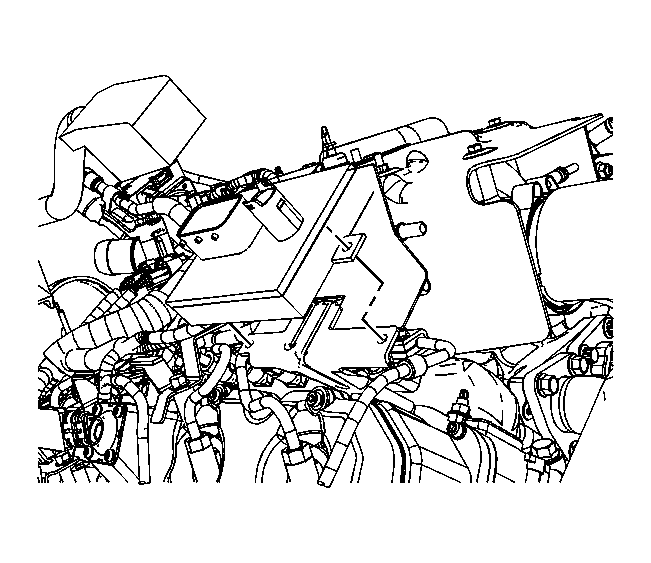

    3. Fig 2: Glow Plug Control Module Bolts
    GM1664664Courtesy of GENERAL MOTORS CORP.
  3. Install the glow plug control module.
  4. Install the glow plug control module bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

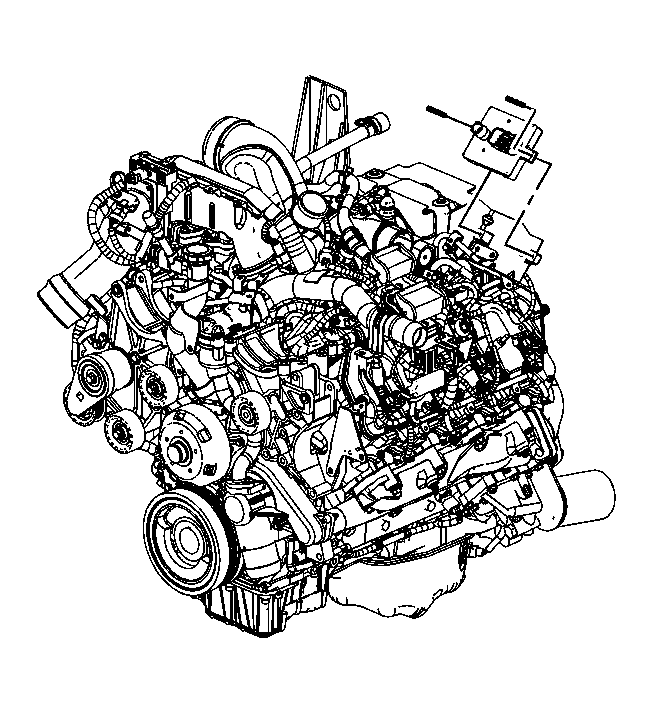

    5. Fig 3: Glow Plug Control Module
    GM1602069Courtesy of GENERAL MOTORS CORP.
  5. Connect the glow plug control module electrical connectors (1, 2).
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  7. If a NEW glow plug control module was installed, program the module. Refer to Control Module References .
  8. Install the engine cover. Refer to Engine Cover Replacement .
