Power Door Systems Connectors

Door Latch - Driver

GM812596Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6-1355679-1, 6-1355683-1
  • Service: See Catalog
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 746 Not Used
2 TN 694 Driver Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 RD/BK 745 Left Front Door Ajar Switch Signal
5 PU 294 Not Used
6 BK 650 Ground
Door Latch - Front Passenger

GM812596Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6-1355679-1, 6-1355683-1
  • Service: See Catalog
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 746 Passenger Door Ajar Switch Signal
2 TN 694 Not Used
3 GY 650 Ground
4 RD/BK 745 Not Used
5 PU 294 Door Lock Actuator Unlock Control
6 BK 295 Door Lock Actuator Lock Control
Door Latch - LR

GM812596Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6-1355679-1, 6-1355683-1
  • Service: See Catalog
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 746 Not Used
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 RD/BK 746 Passenger Door Ajar Switch Signal
5 PU 294 Not Used
6 BK 750 Ground
Door Latch - RR

GM812596Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6-1355679-1, 6-1355683-1
  • Service: See Catalog
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 746 Passenger Door Ajar Switch Signal
2 TN 294 Not Used
3 GY 850 Ground
4 RD/BK 746 Not Used
5 PU 294 Door Lock Actuator Unlock Control
6 BK 295 Door Lock Actuator Lock Control
Door Lock Switch - Driver

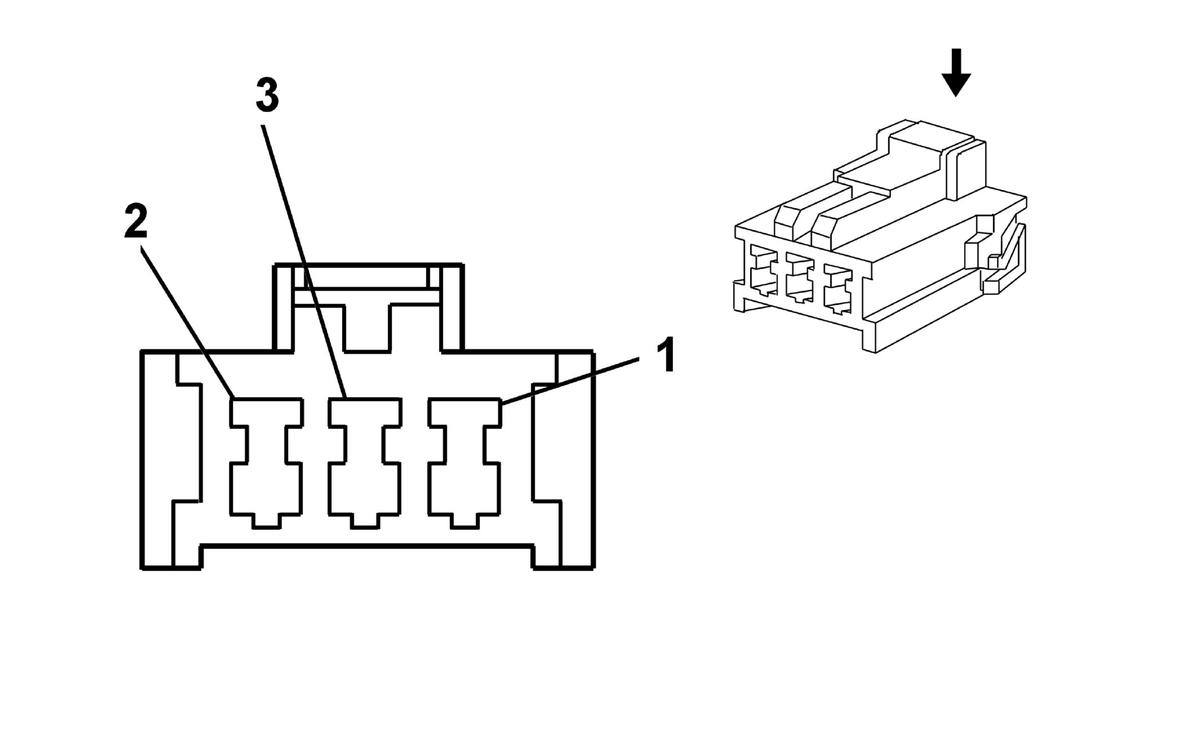

GM1456982Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6098-0241
  • Service: See Catalog
  • 3-Way F (BK)
Pin Wire Color Circuit No. Function
1 OG/BK 244 Passenger Door Lock Switch Lock Control
2 RD/BK 245 Passenger Door Lock Switch Unlock Control
3 OG 440 Battery Positive Voltage
Door Lock Switch - Front Passenger

GM1456982Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6098-0241
  • Service: See Catalog
  • 3-Way F (BK)
Pin Wire Color Circuit No. Function
1 OG/BK 244 Passenger Door Lock Switch Lock Control
2 RD/BK 245 Passenger Door Lock Switch Unlock Control
3 OG 440 Battery Positive Voltage
Outside Rearview Mirror - Driver

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047781
  • Service: 12101864
  • 3-Way F (BK)
Pin Wire Color Circuit No. Function
A YE 1496 Mirror Motor Right/Up Control
B WH 81 Driver Mirror Motor Right Control
C L-GN 89 Driver Mirror Motor Down Control
Outside Rearview Mirror - Front Passenger

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047781
  • Service: 12101864
  • 3-Way F (BK)
Pin Wire Color Circuit No. Function
A YE 1496 Mirror Motor Right/Up Control
B WH 881 Passenger Mirror Motor Right Control
C L-GN 889 Passenger Mirror Motor Down Control
Outside Rearview Mirror Switch

GM901282Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15336862
  • Service: See Catalog
  • 8-Way F REI DUCON (GY)
Pin Wire Color Circuit No. Function
1 RD/WH 440 Battery Positive Voltage
2 BK 550 Ground
3 PU/WH 889 Passenger Mirror Motor Up/Down Control
4 WH 81 Driver Mirror Motor Right/Left Control
5 YE 1496 Mirror Switch Control
6 - - Not Used
7 L-GN 89 Driver Mirror Motor Up/Down Control
8 OG/WH 881 Passenger Mirror Motor Right/Left Control
Power Window Switch - Main

GM1413063Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-1120
  • Service: 15383359
  • 12-Way F (WH)
Pin Wire Color Circuit No. Function
1 YE 643 Accessory Voltage
2 L-GN 170 Power Window Master Switch Right Rear Up Signal
3 PU 171 Power Window Master Switch Right Rear Down Signal
4 D-GN 168 Power Window Master Switch Left Rear Up Signal
5 PU 169 Power Window Master Switch Left Rear Down Signal
6 BN 667 Power Window Motor Right Front Down Control
7 D-BU 666 Power Window Motor Right Front Up Control
8 BK 650 Ground
9 D-BU 1307 Power Window Master Switch Lockout Signal
10 D-BU 1307 Power Window Master Switch Lockout Signal
11 BN 165 Power Window Motor Left Front Down Control
12 D-BU 164 Power Window Motor Left Front Up Control
Window Motor - Driver

GM1415174Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5565-40
  • Service: See Catalog
  • 2-Way F YESC/USCAR Unsealed Series (GY)
Pin Wire Color Circuit No. Function
1 BN 165 Power Window Motor Left Front Down Control
2 D-BU 164 Power Window Motor Left Front Up Control
Window Motor - Front Passenger

GM1415174Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5565-40
  • Service: See Catalog
  • 2-Way F YESC/USCAR Unsealed Series (GY)
Pin Wire Color Circuit No. Function
1 BN 667 Power Window Motor Right Front Down Control
2 D-BU 666 Power Window Motor Right Front Up Control
Window Motor - LR

GM1415174Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5565-40
  • Service: See Catalog
  • 2-Way F YESC/USCAR Unsealed Series (GY)
Pin Wire Color Circuit No. Function
1 BN 669 Power Window Motor Left Rear Down Control
2 D-BU 668 Power Window Motor Left Rear Up Control
Window Motor - RR

GM1415174Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5565-40
  • Service: See Catalog
  • 2-Way F YESC/USCAR Unsealed Series (GY)
Pin Wire Color Circuit No. Function
1 BN 671 Power Window Motor Right Rear Down Control
2 D-BU 670 Power Window Motor Right Rear Up Control
Window Switch - LR

GM1457212Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6098-0245
  • Service: See Catalog
  • 6-Way F (GY)
Pin Wire Color Circuit No. Function
1 BN 669 Power Window Motor Left Rear Down Control
2 PU 169 Power Window Master Switch Left Rear Down Signal
3 - - Not Used
4 D-BU 668 Power Window Motor Left Rear Up Control
5 D-BU 1307 Power Window Master Switch Lockout Signal
6 D-GN 168 Power Window Master Switch Left Rear Up Signal
Window Switch - RR

GM1457212Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 6098-0245
  • Service: See Catalog
  • 6-Way F (GY)
Pin Wire Color Circuit No. Function
1 BN 671 Power Window Motor Right Rear Down Control
2 PU 171 Power Window Master Switch Right Rear Down Signal
3 - - Not Used
4 D-BU 670 Power Window Motor Right Rear Up Control
5 D-BU 1307 Power Window Master Switch Lockout Signal
6 L-GN 170 Power Window Master Switch Right Rear Up Signal
