Installation Procedure

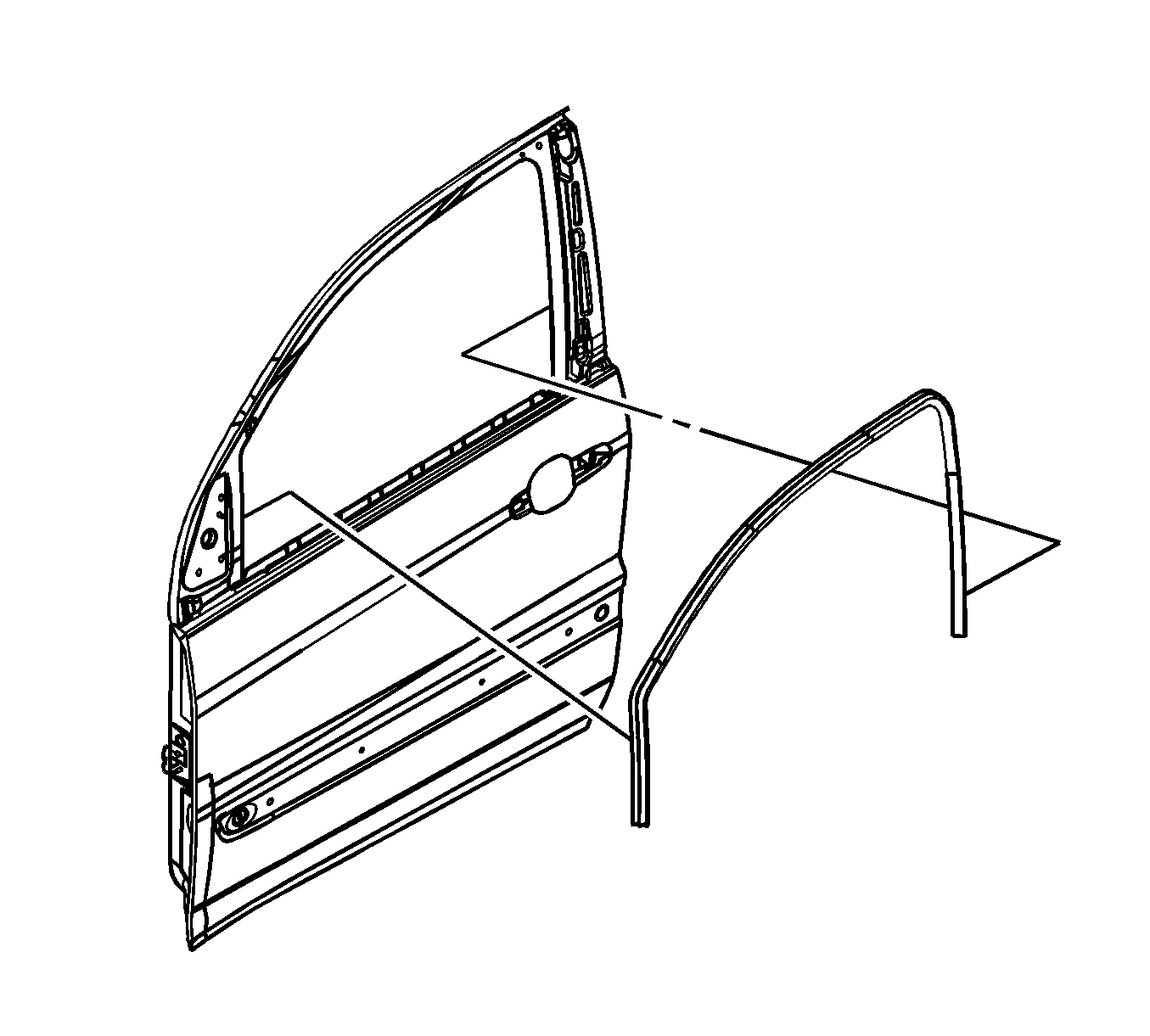

Fig 1: View Of Front Window Weatherstrip Run Channel Assembly

Courtesy of GENERAL MOTORS CORP.

Install the window weatherstrip run channel assembly.
1. Starting at the lower rear corner of the window opening, press the weatherstrip run channel onto the door flange.
2. Ensure the channel is fully secured into the upper corners of the door frame.
Install the inner belt seal. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
