Body Control System Schematics

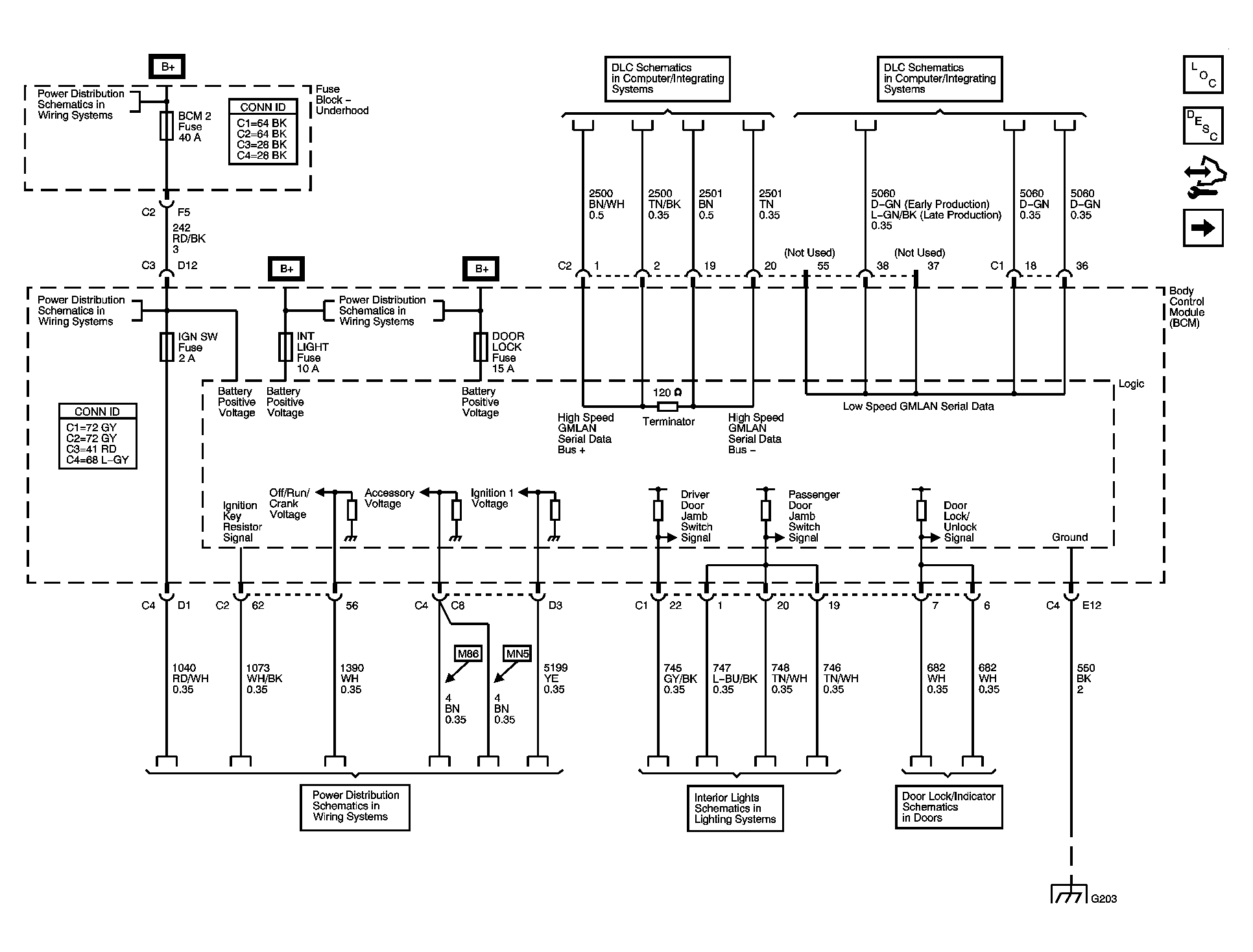

Fig 1: Power, Ground, Data Link, and Engine References

Courtesy of GENERAL MOTORS CORP.

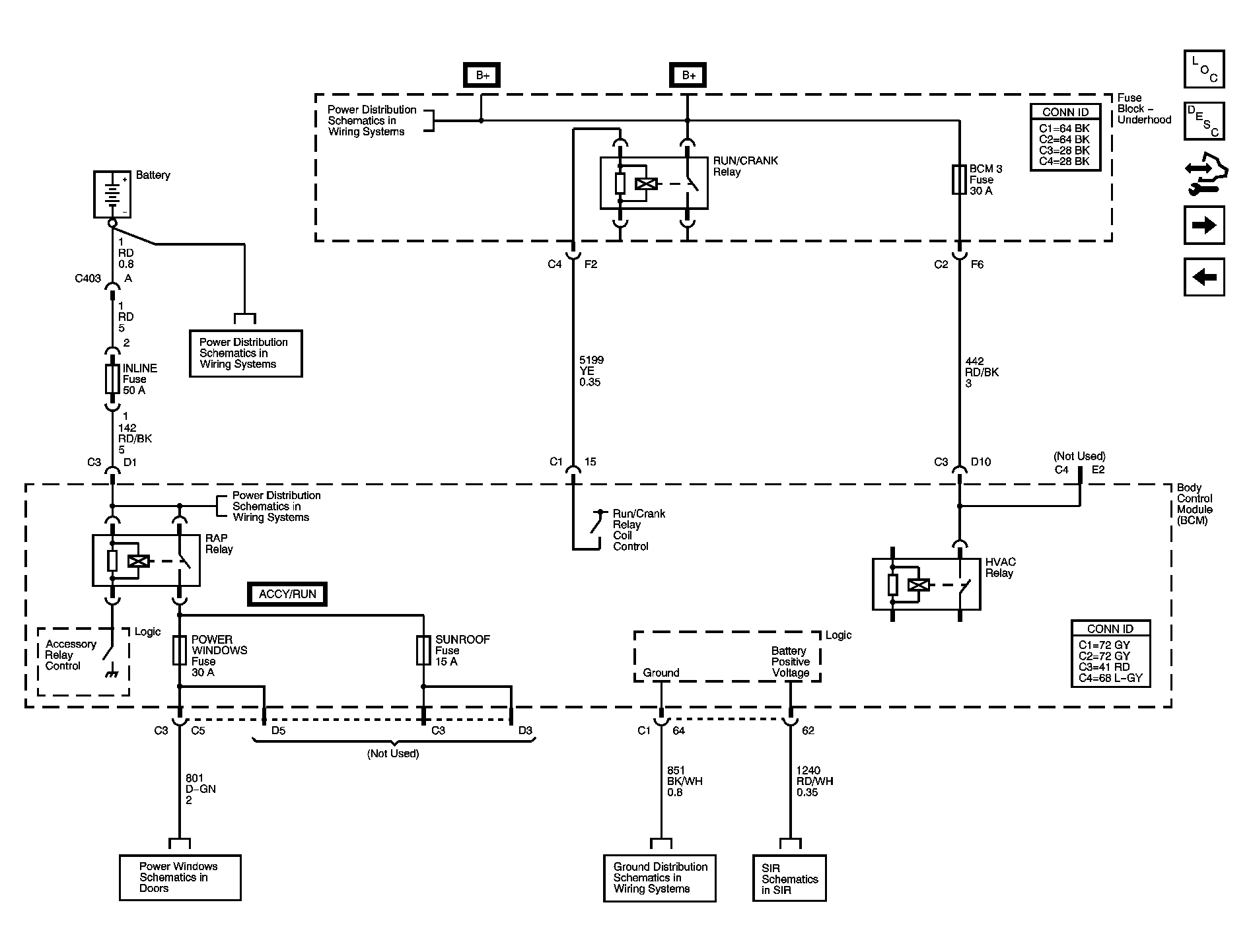

Fig 2: RUN/CRANK, RAP, HVAC Relays, BCM3, PWR Windows, Sunroof, Fuses

Courtesy of GENERAL MOTORS CORP.

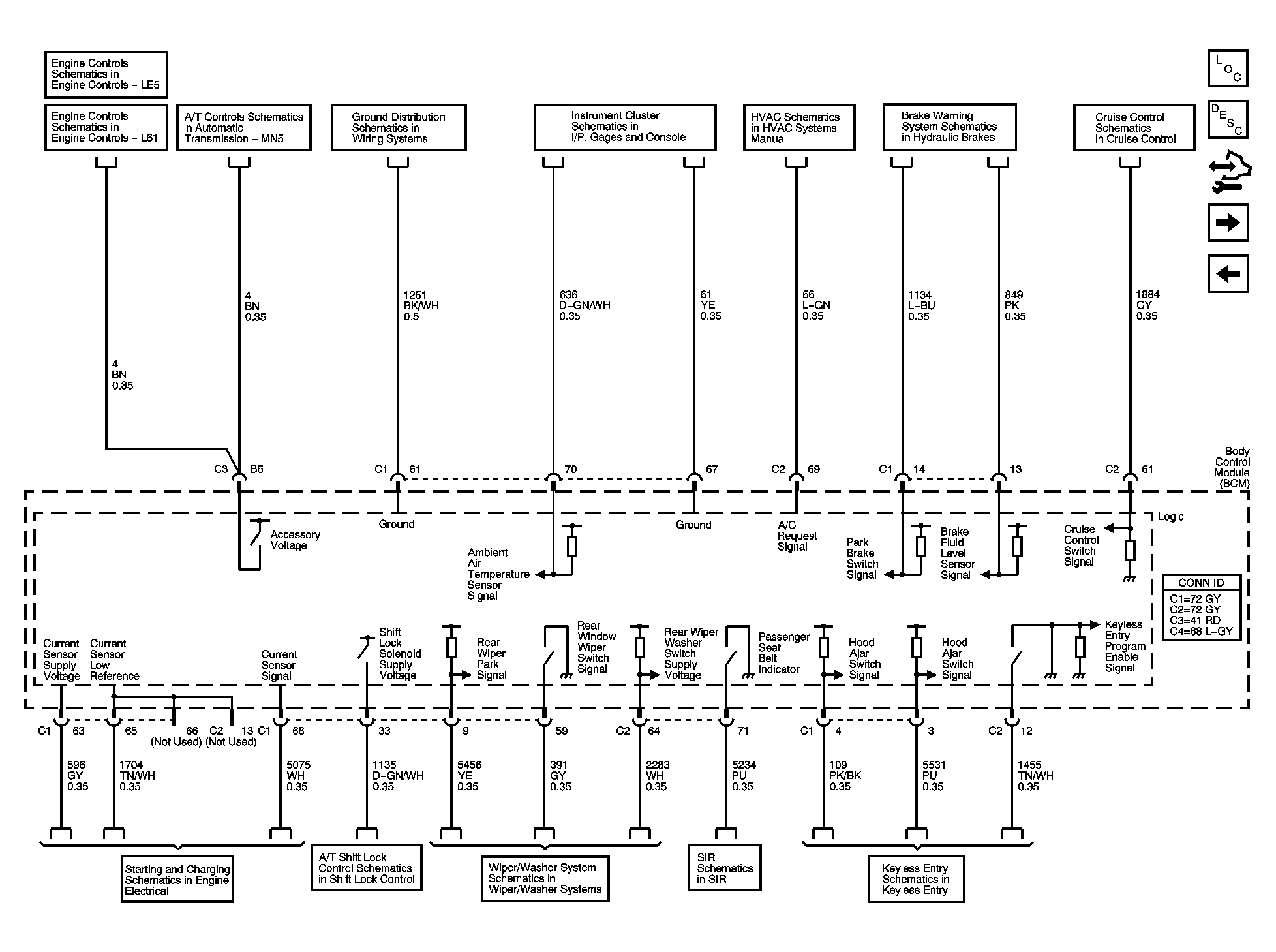

Fig 3: SIR, Shift Lock Control, ABS, Brake Warning, Cruise Control, Keyless Entry, Wiper/Washer, Engine Controls, Engine Cooling References, Starting/Charging

Courtesy of GENERAL MOTORS CORP.

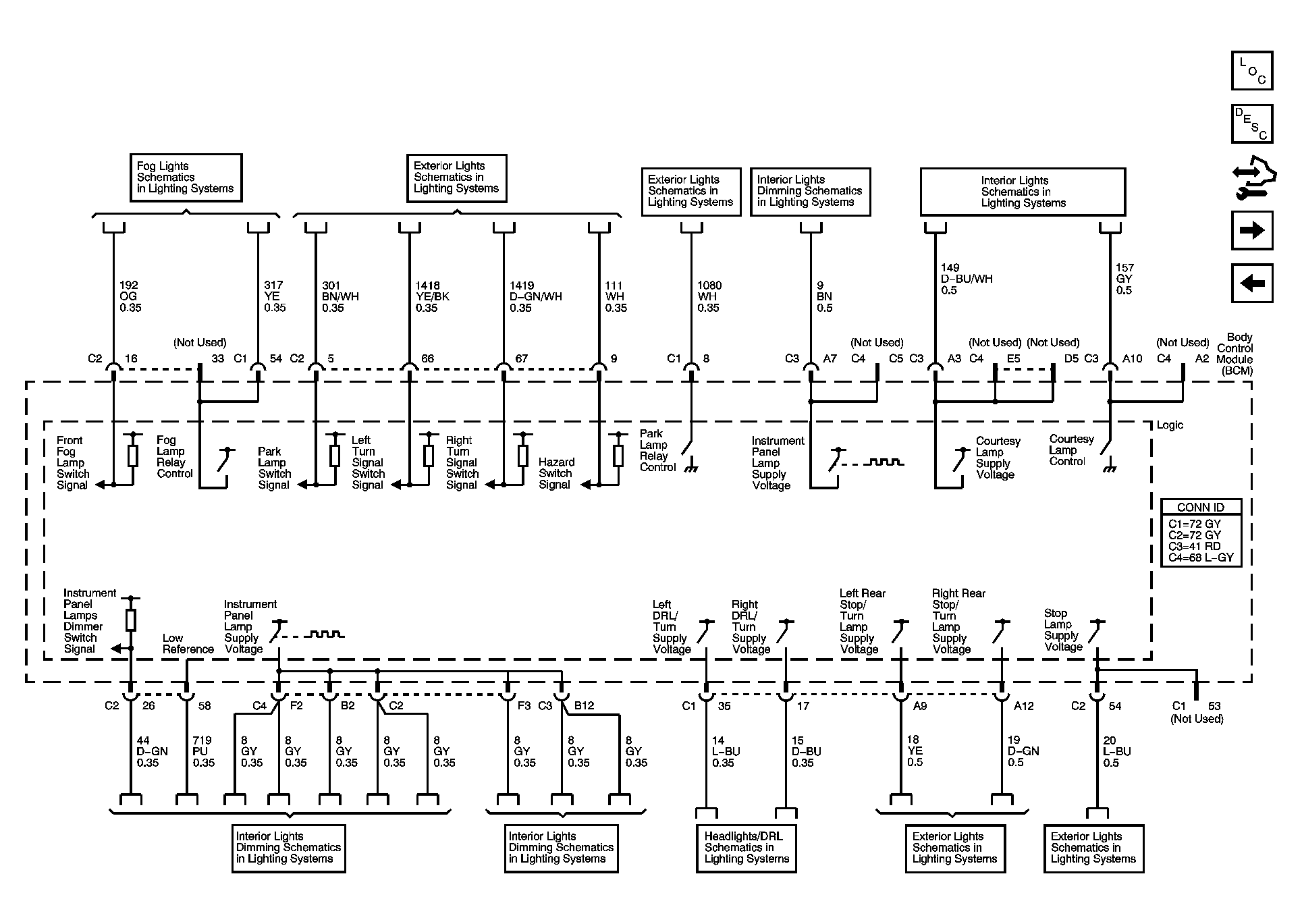

Fig 4: Lighting System References

Courtesy of GENERAL MOTORS CORP.

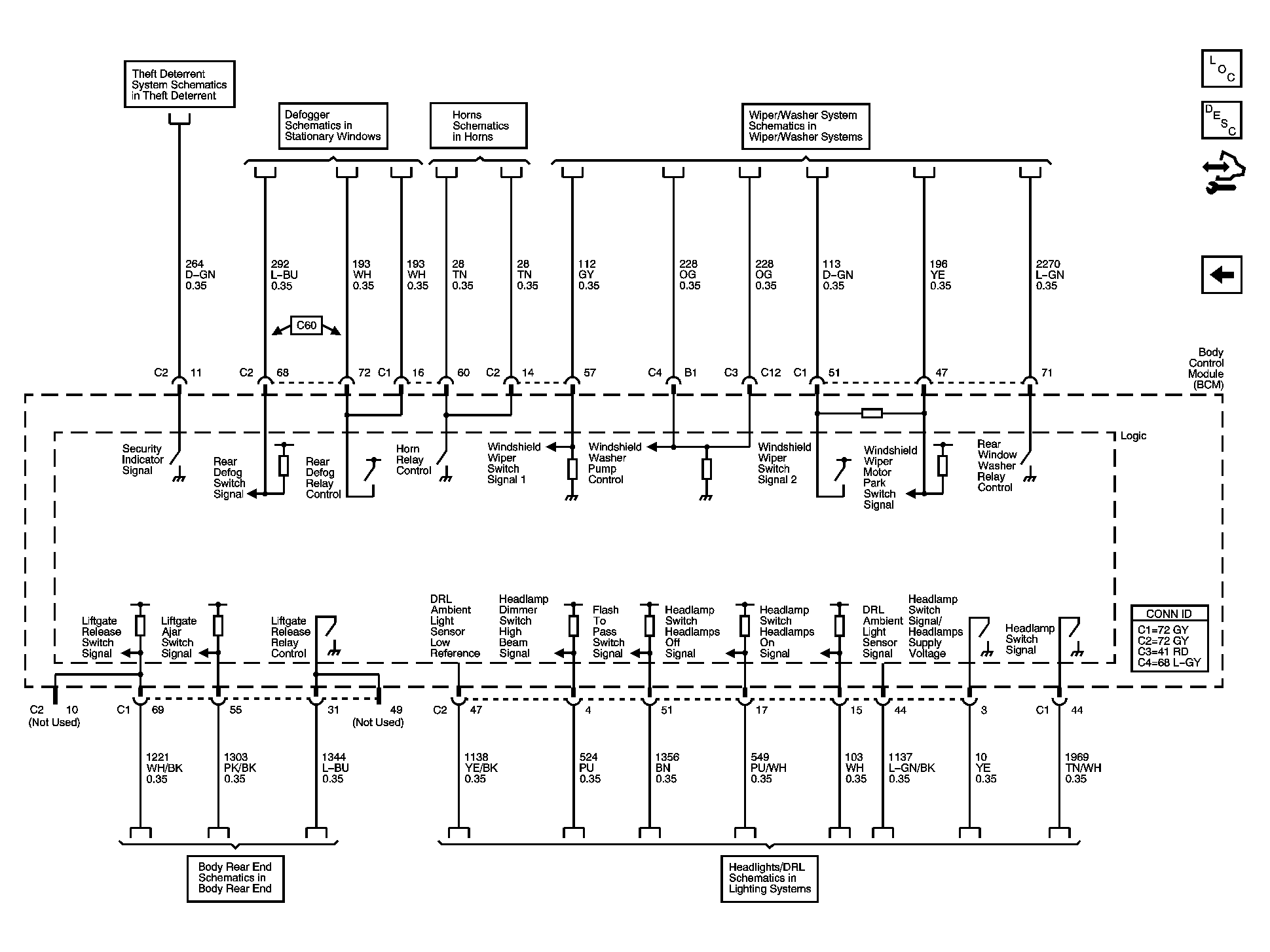

Fig 5: Body Rear End, Defogger, Headlights/DRL, Horns, and Wiper/Washer References

Courtesy of GENERAL MOTORS CORP.
