Door Check Link Replacement - Front

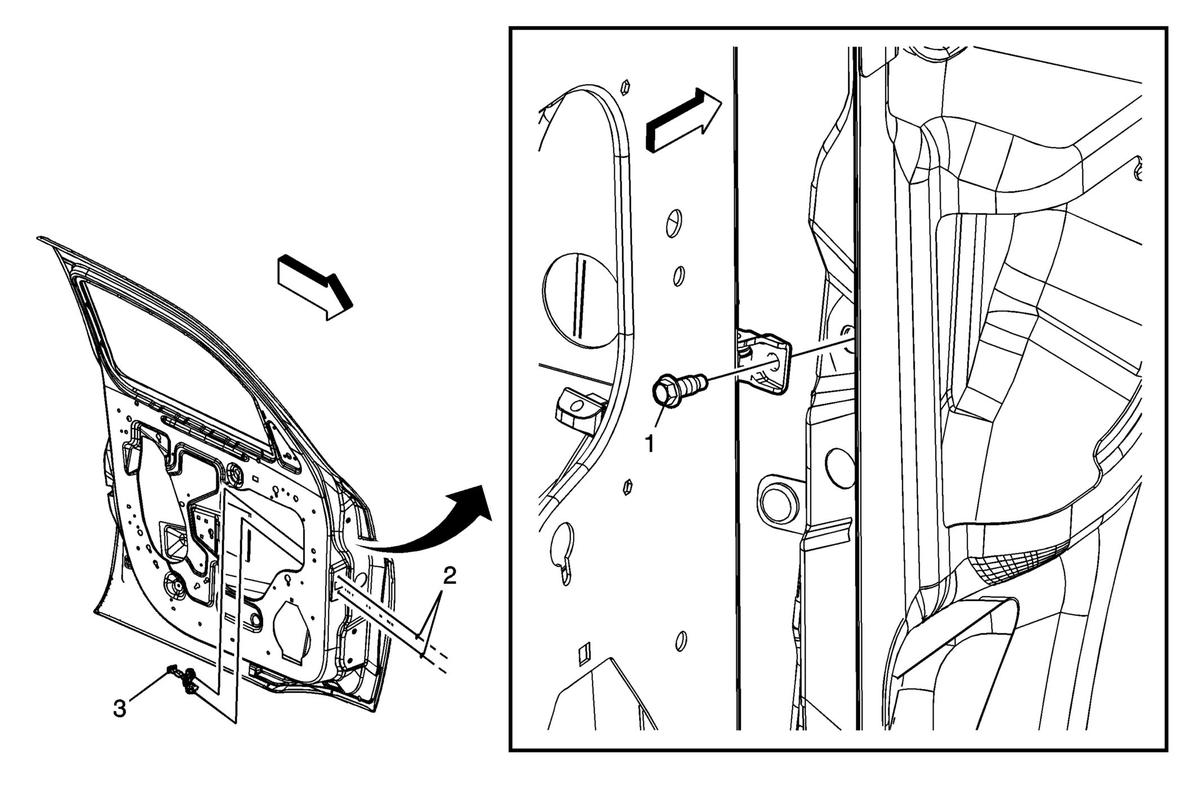

Fig 1: Door Check Link Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front door interior trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door . Move the window to the full up position.
1	Bolt, Front Side Door Check Link Tighten: 20 N.m (15 lb ft)
2	Nut, Front Side Door Check Link (Qty: 2) Tighten: 10 N.m (89 lb in)
3	Link Assembly, Front Side Door Check Tip: Remove the check link through the inside of the door.
