Glass Replacement - Mirror

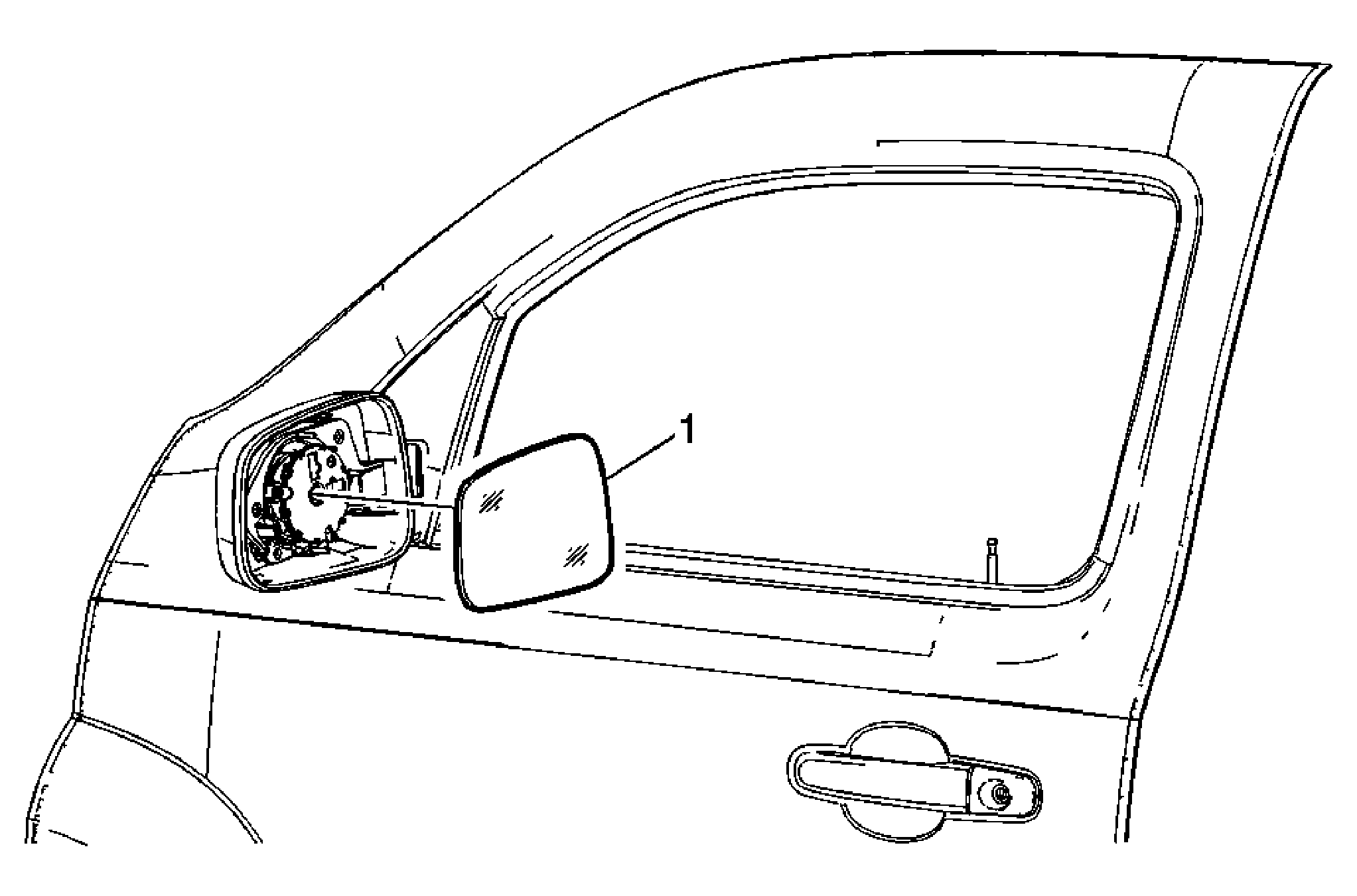

Fig 1: Glass Replacement - Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Mirror Glass, Outside Rearview CAUTION: Refer to Glass and Sheet Metal Handling Caution . Tip: Apply masking tape to the top of the outside of the mirror housing to prevent damage. Push the mirror face inward at the bottom until full travel is reached. Insert a J 38778 Door Trim Pad Clip Remover or equivalent behind the glass and the first rib support and pry outward until the mirror face is released. See Special Tools . When installing the mirror glass align the mirror face to the backing plate and apply pressure, using a rubber sanding block or equivalent, until an audible click is heard.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Mirror Glass, Outside Rearview

CAUTION: Refer to Glass and Sheet Metal Handling Caution .

Tip:

Apply masking tape to the top of the outside of the mirror housing to prevent damage.
Push the mirror face inward at the bottom until full travel is reached.
Insert a J 38778 Door Trim Pad Clip Remover or equivalent behind the glass and the first rib support and pry outward until the mirror face is released. See Special Tools .
When installing the mirror glass align the mirror face to the backing plate and apply pressure, using a rubber sanding block or equivalent, until an audible click is heard.
