Chevrolet
›
2006
›
HHR LS, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Door System, Mirror System & Window System
›
Schematic and Routing Diagrams
›
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

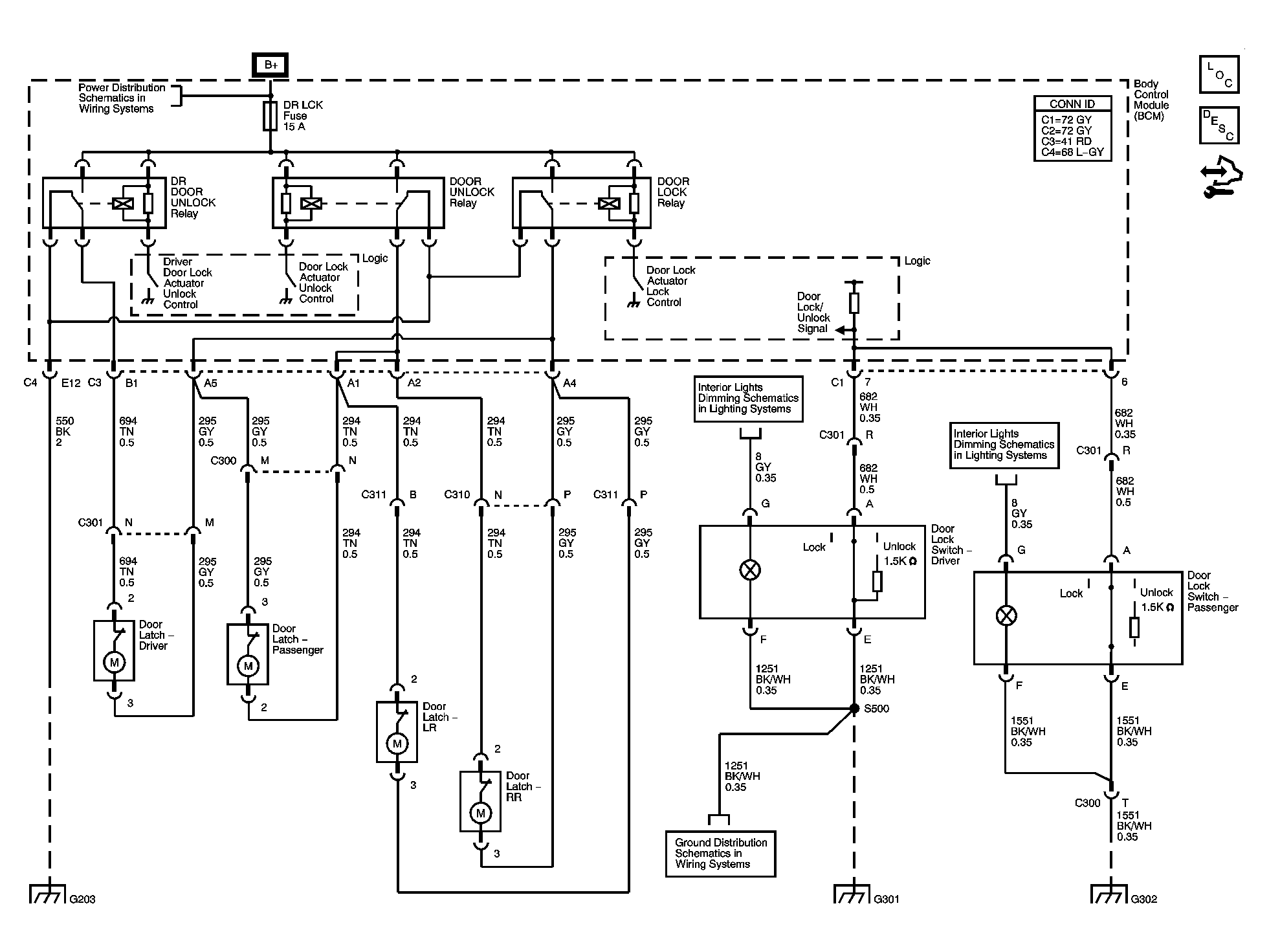

Fig 1: Door Lock Indicator
Courtesy of GENERAL MOTORS CORP.
