Stationary Windows Component Views

Fig 1: Headliner Components - Bottom

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome Lamp
3	Cellular Microphone (UE1)
4	OnStar Button Assembly (UE1)
5	Inside Rearview Mirror
6	Sunroof Switch (CF5)

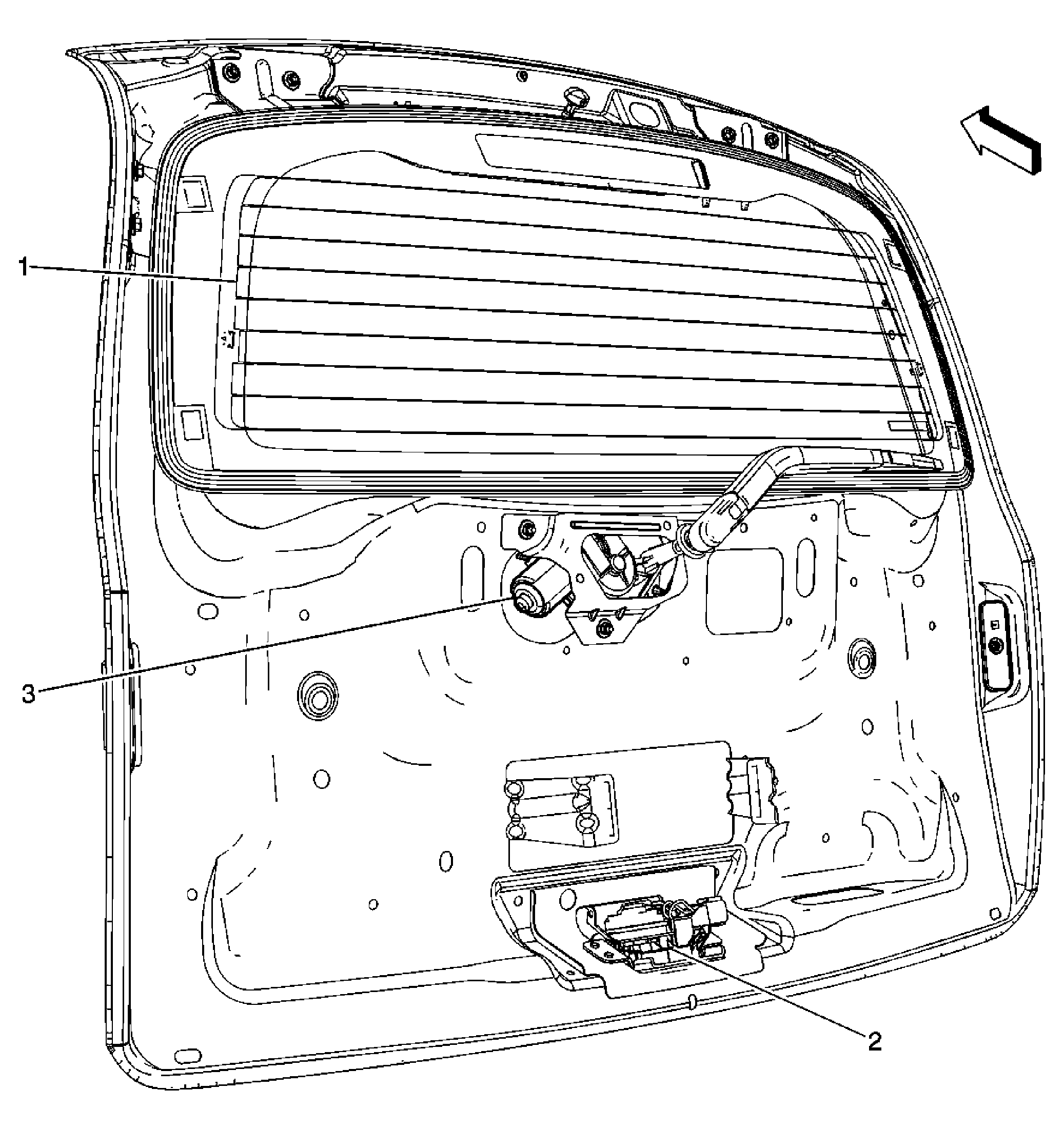

Fig 2: Liftgate Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Door Latch - Liftgate
3	Rear Window Wiper Motor
