Brake Pressure Modulator Valve (BPMV) Replacement

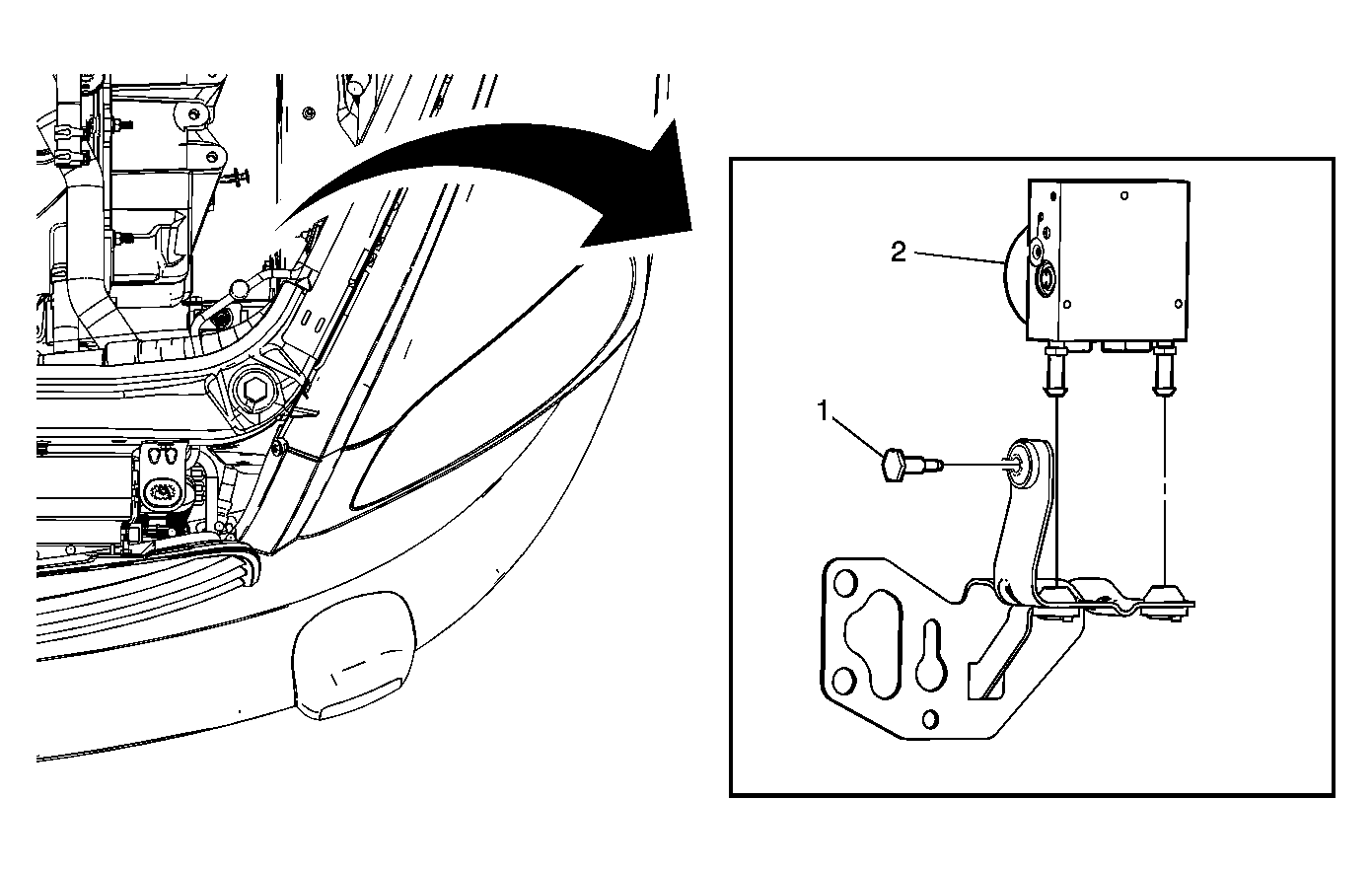

Fig 1: Brake Pressure Modulator Valve (BPMV) Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the electronic brake control module (BPMV). Refer to Electronic Brake Control Module Replacement .
1	Bolt, BPMV Mounting
2	Module, BPMV Tip: Plug or cap the brake pipes to prevent brake fluid leaks and contamination of the brake fluid. Bleed the BPMV. Refer to ABS Automated Bleed Procedure . Tighten: 11 N.m (97 lb in)

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the electronic brake control module (BPMV). Refer to Electronic Brake Control Module Replacement .

Bolt, BPMV Mounting

Module, BPMV
Tip:

Plug or cap the brake pipes to prevent brake fluid leaks and contamination of the brake fluid.
Bleed the BPMV. Refer to ABS Automated Bleed Procedure .

Tighten: 11 N.m (97 lb in)
