ABS Schematics

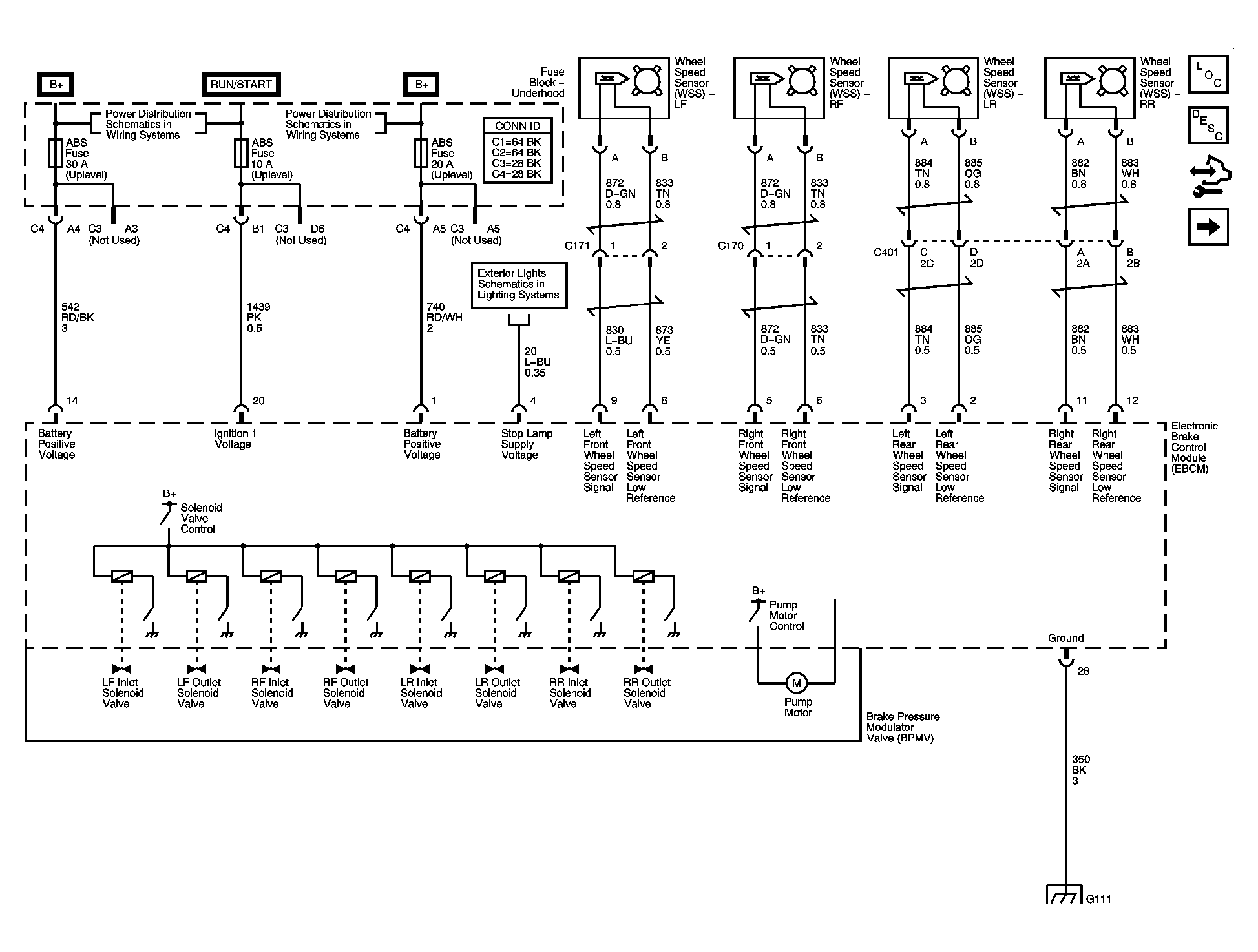

Fig 1: Power, Ground, and Wheel Speed Sensors
GM1558392Courtesy of GENERAL MOTORS CORP.

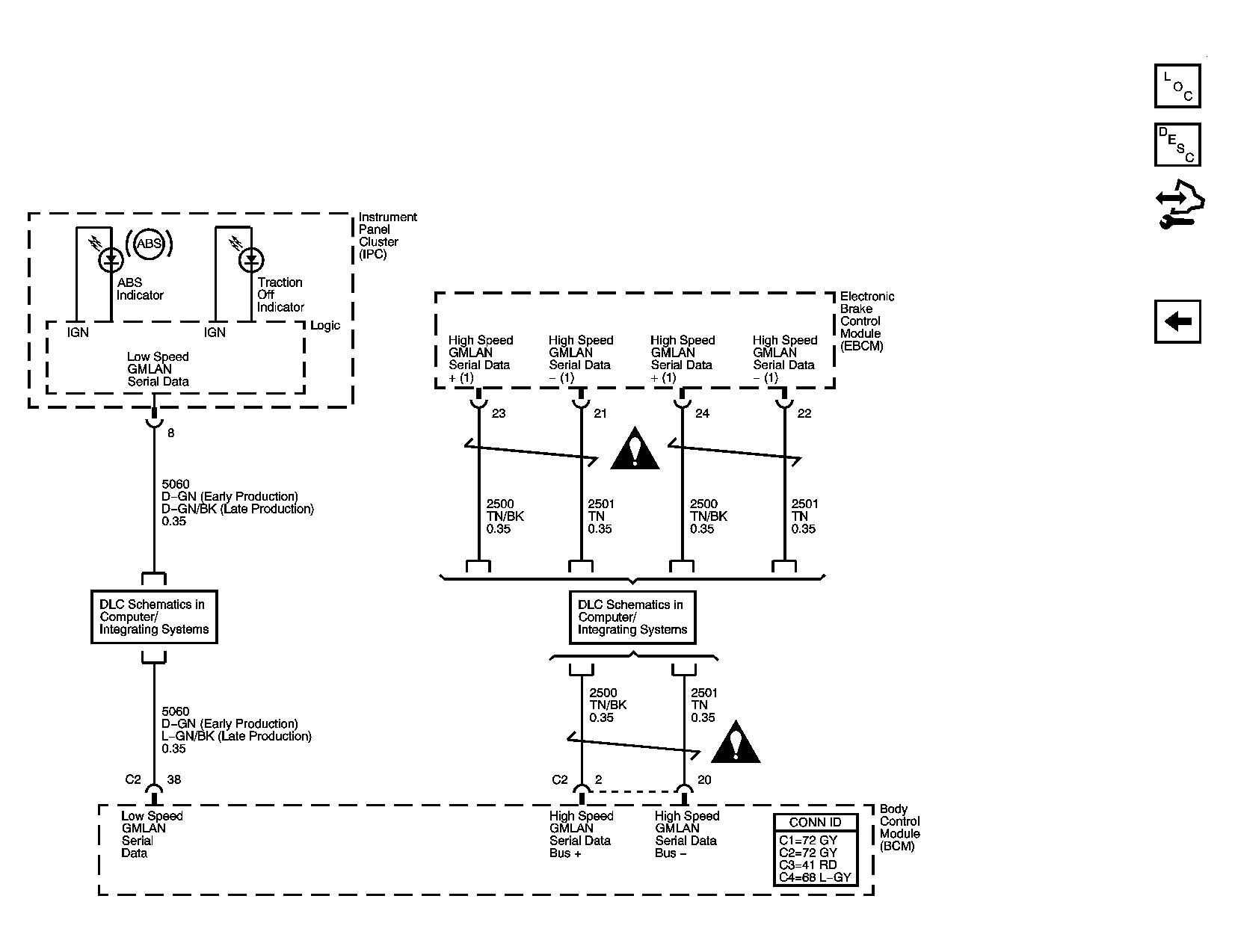

Fig 2: Data Link Communications
GM1558393Courtesy of GENERAL MOTORS CORP.
