Console Replacement

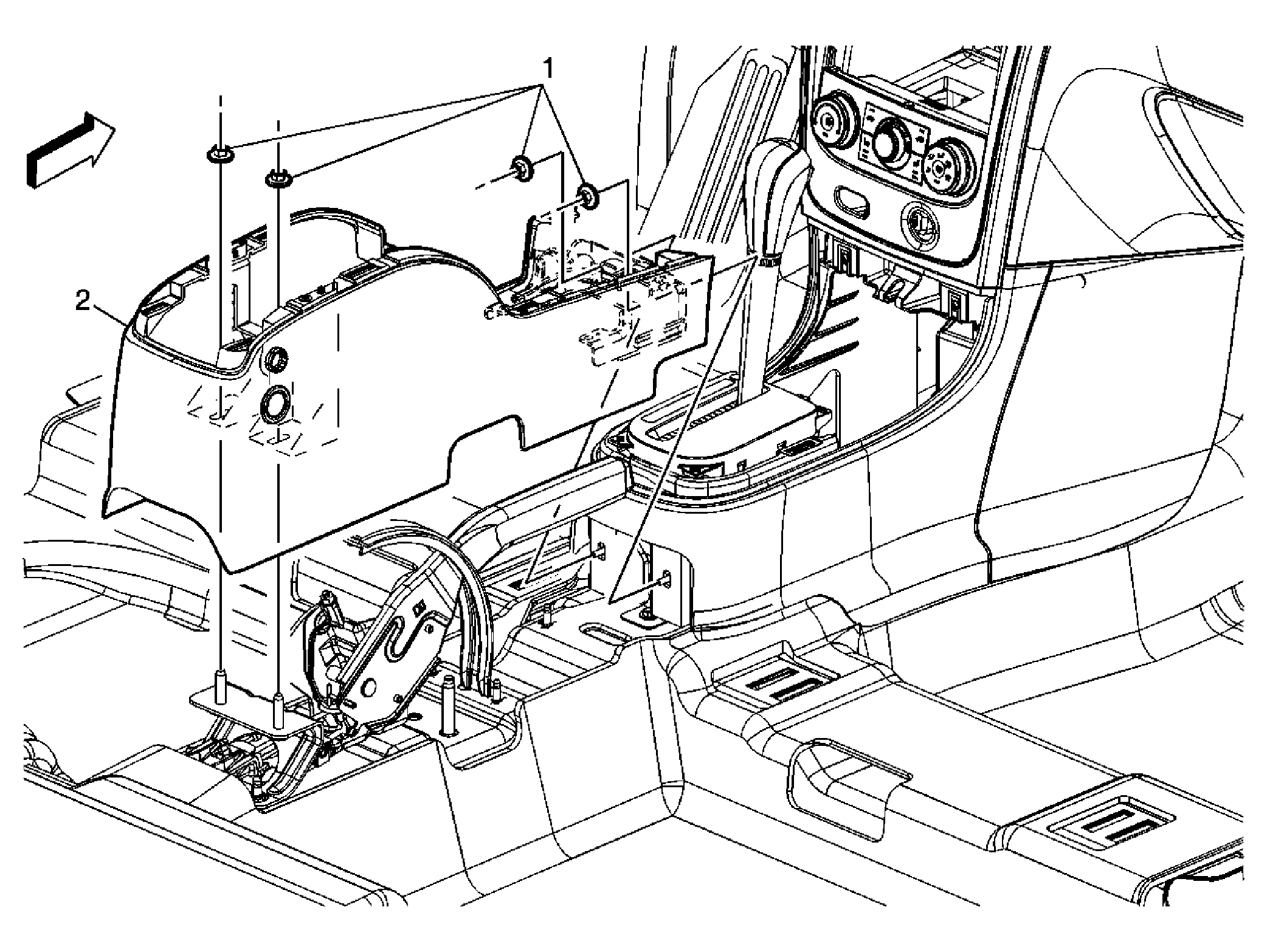

Fig 1: Console Replacement
GM1607826Courtesy of GENERAL MOTORS CORP.
Console Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Remove the rear console trim plate. Refer to Trim Plate Replacement - Console Rear .
  2. Remove the Front Seat Armrests. Refer to Armrest Replacement - Front Seat .
1 Rear Floor Console Assembly Nuts (Qty: 2)

Tighten:  2 N.m (18 lb in)
2 Rear Floor Console Assembly
Tip:  Disconnect the electrical connector.
