Engine Controls Schematics

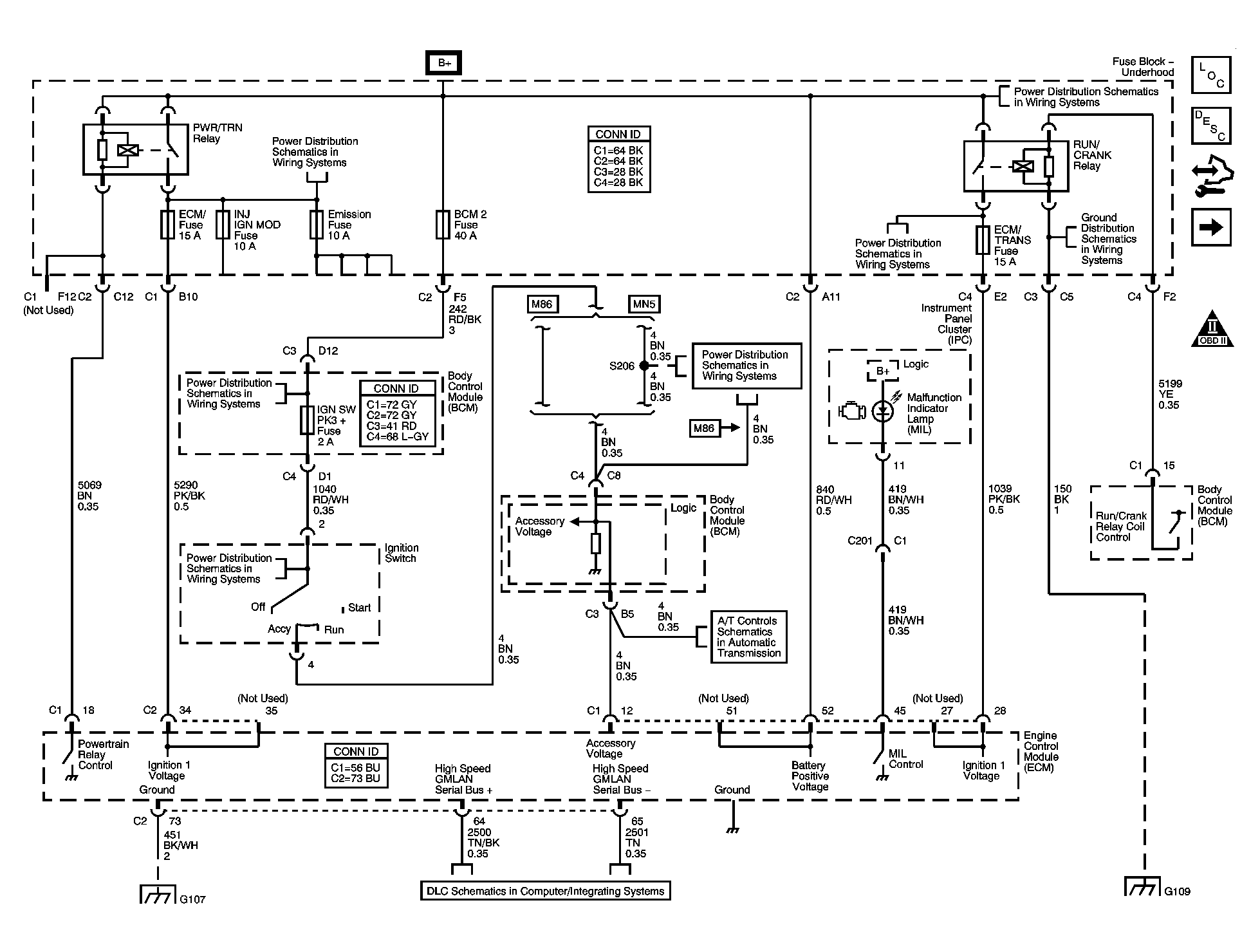

Fig 1: Power, Ground, MIL, and DLC

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - 5-Volt Reference Bussing

Courtesy of GENERAL MOTORS CORP.

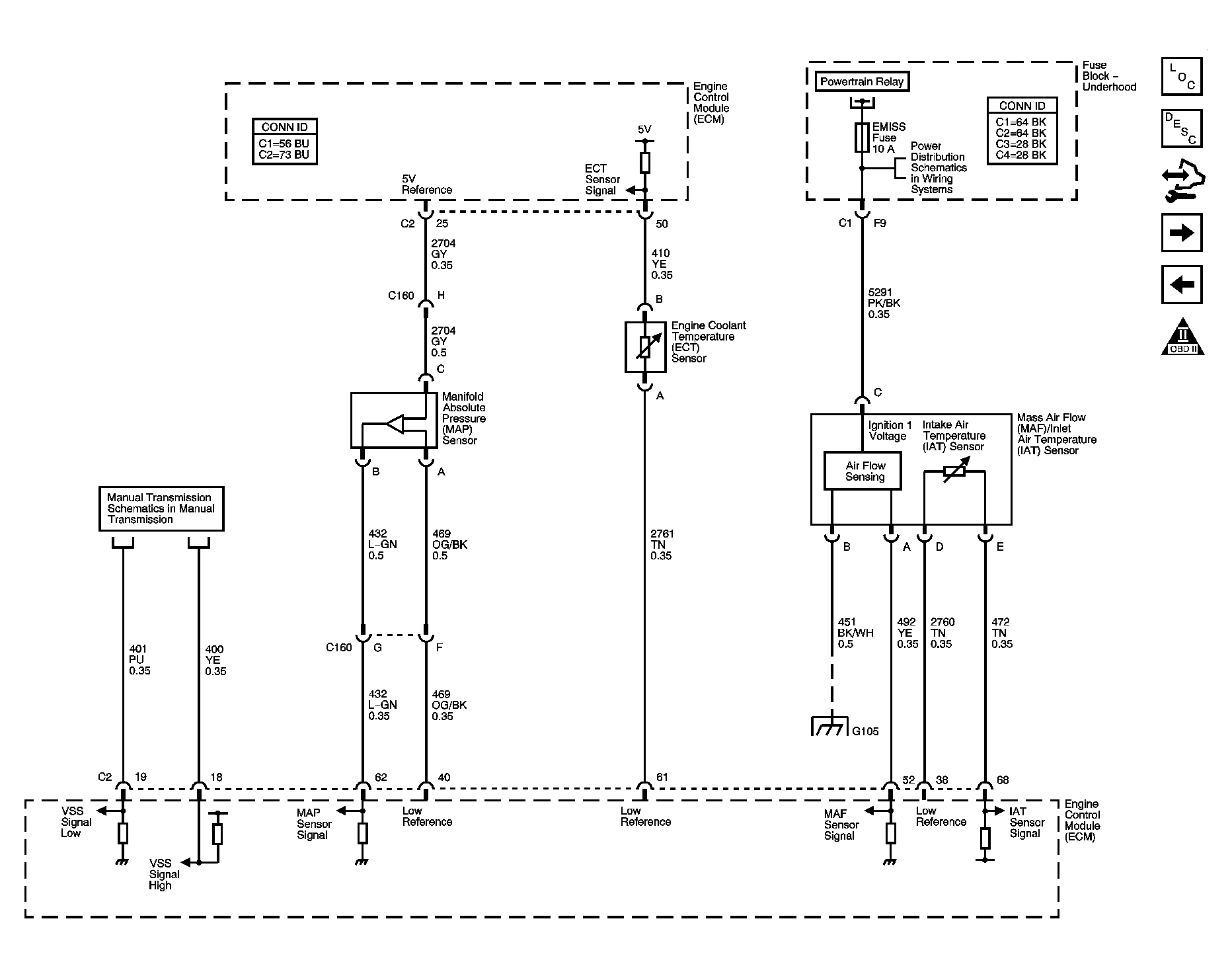

Fig 3: Engine Data Sensors - Pressure, Temperature, and MAF/IAT

Courtesy of GENERAL MOTORS CORP.

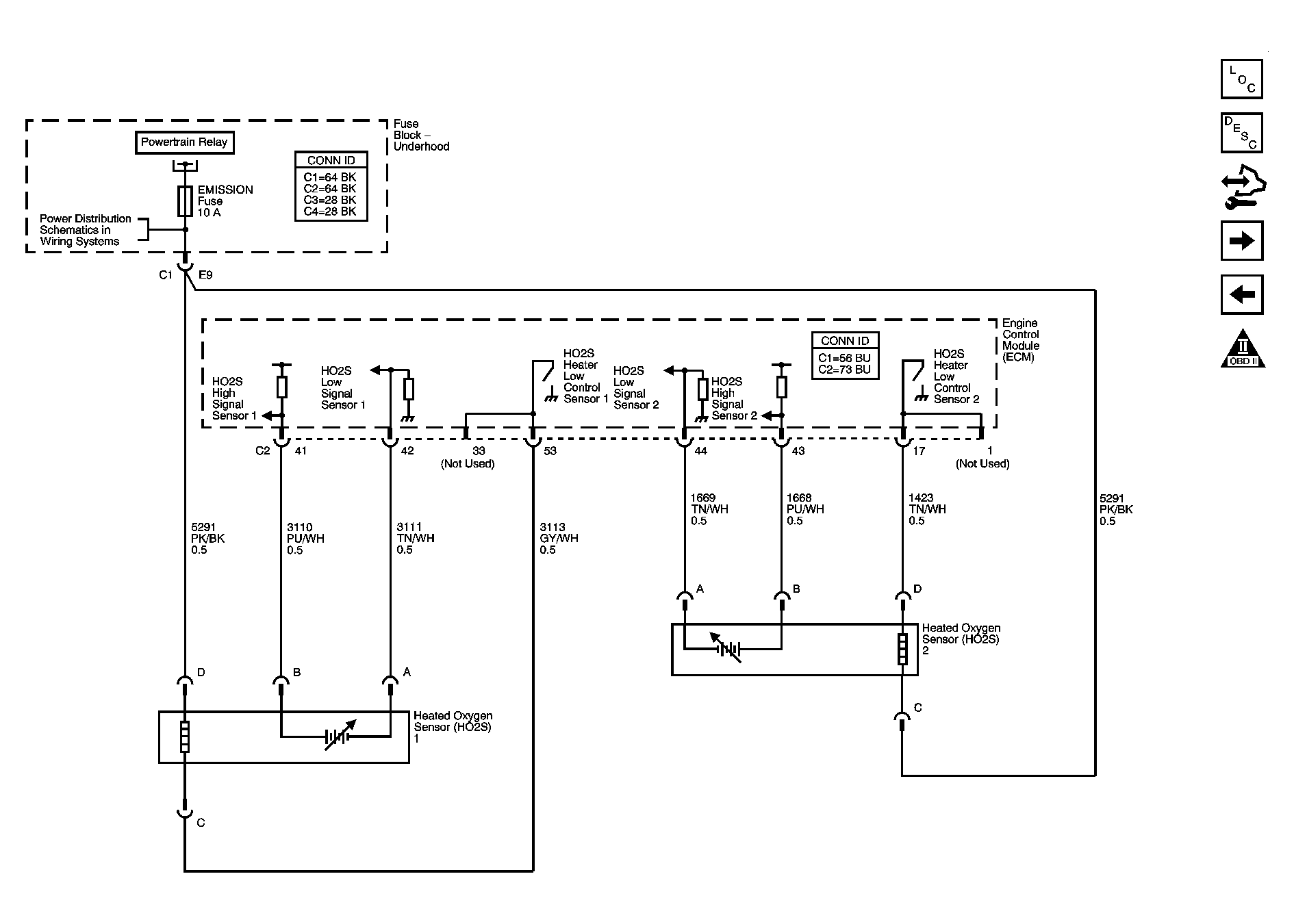

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

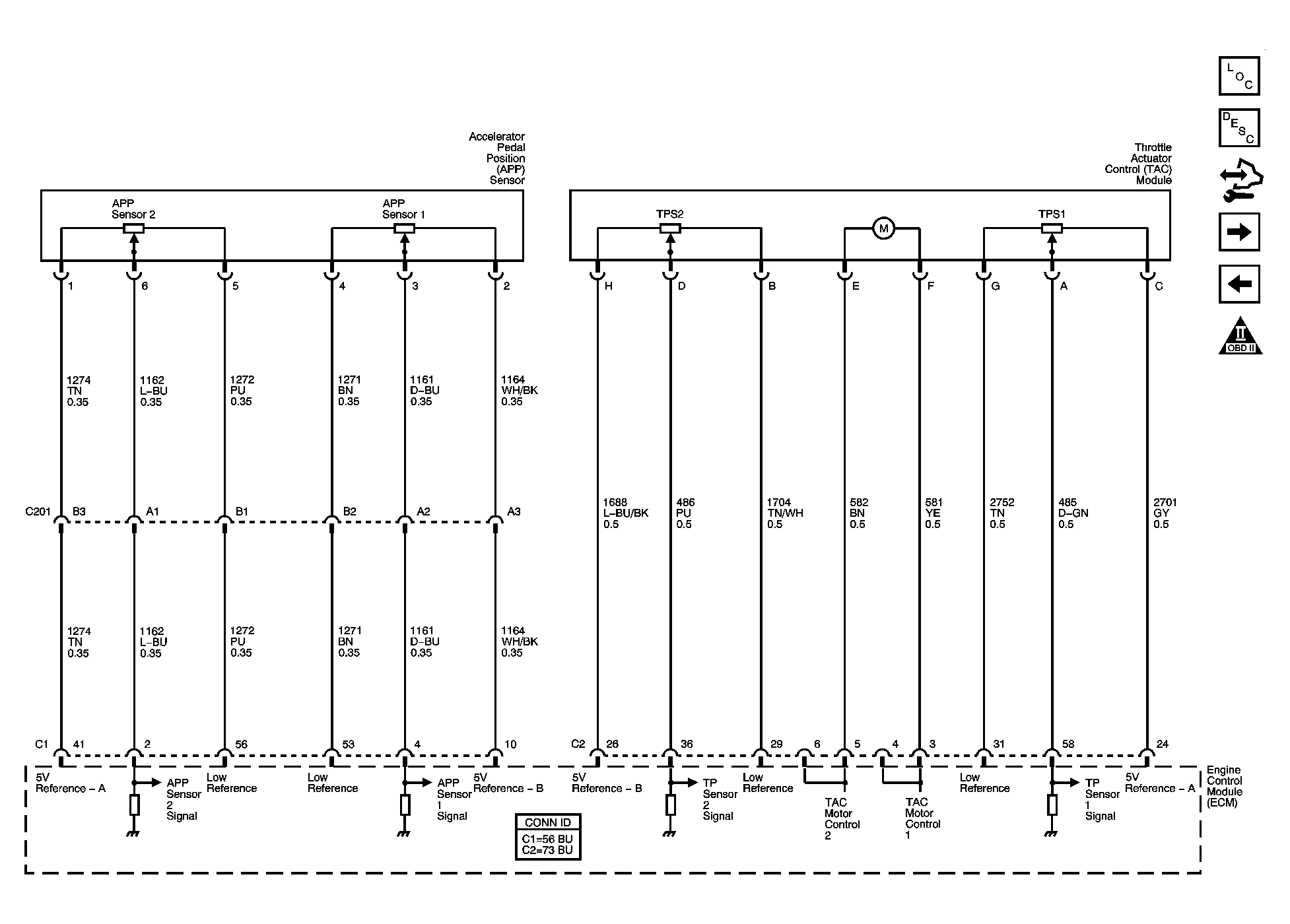

Fig 5: Engine Data Sensors - APP and TAC

Courtesy of GENERAL MOTORS CORP.

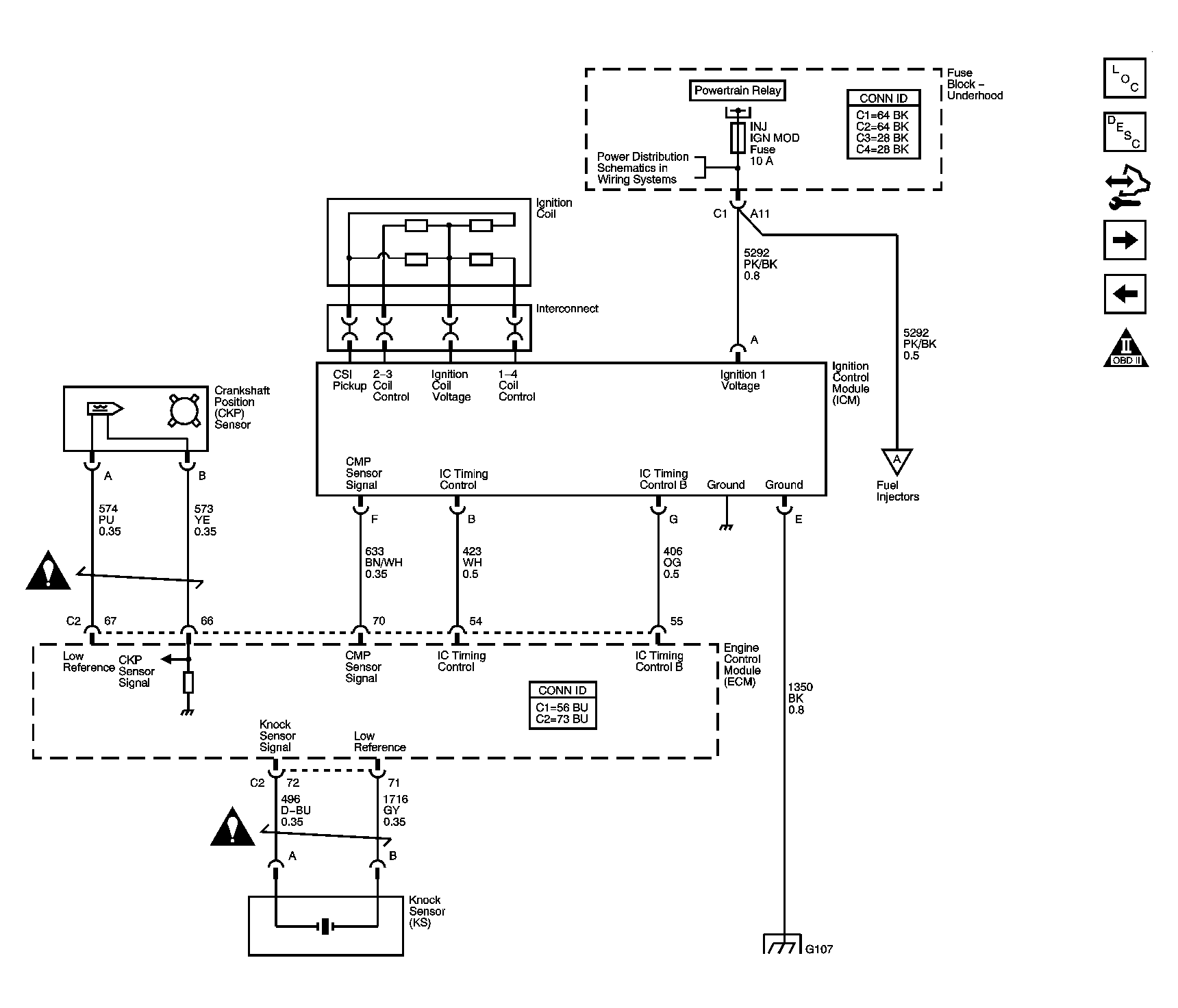

Fig 6: Ignition Controls

Courtesy of GENERAL MOTORS CORP.

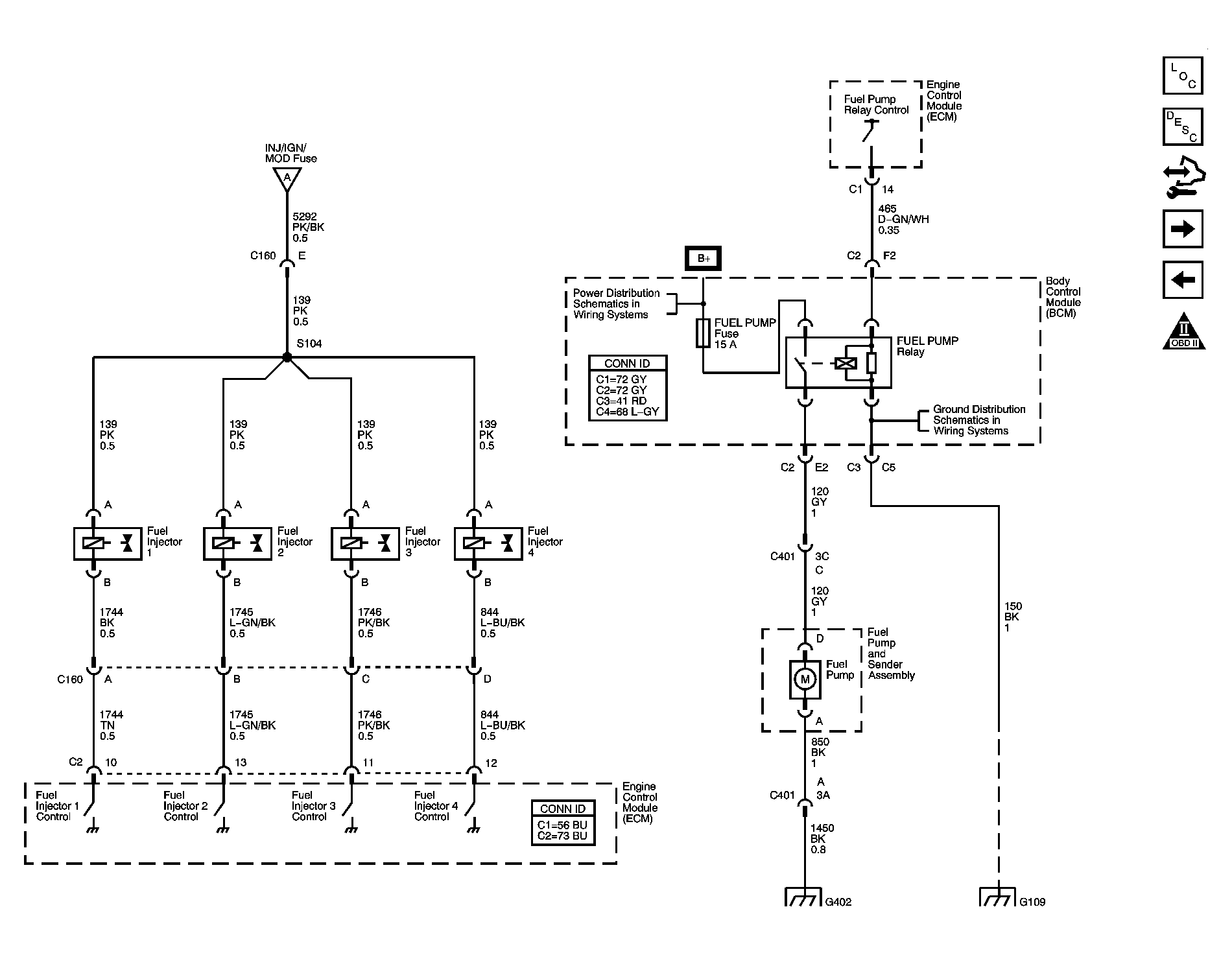

Fig 7: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

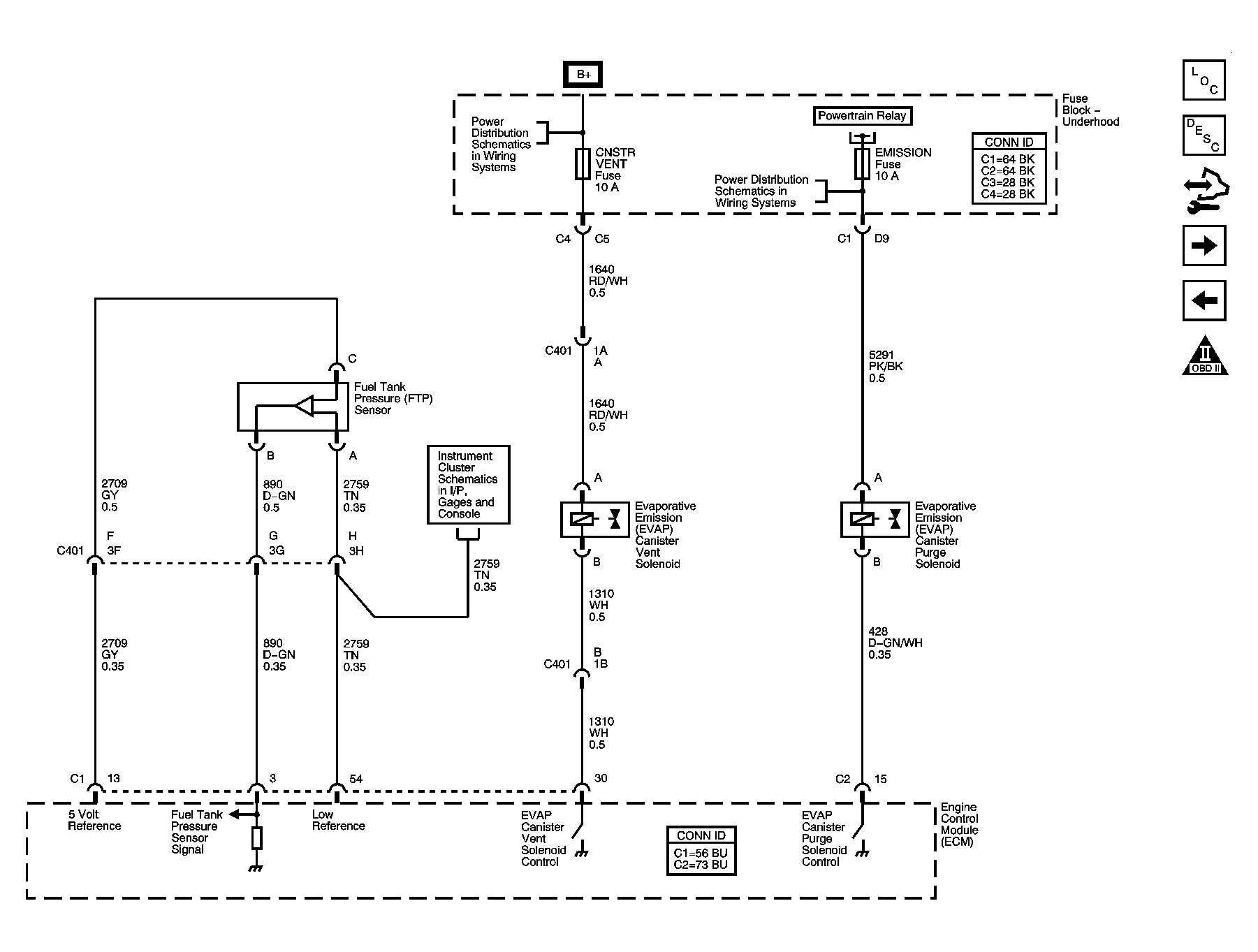

Fig 8: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

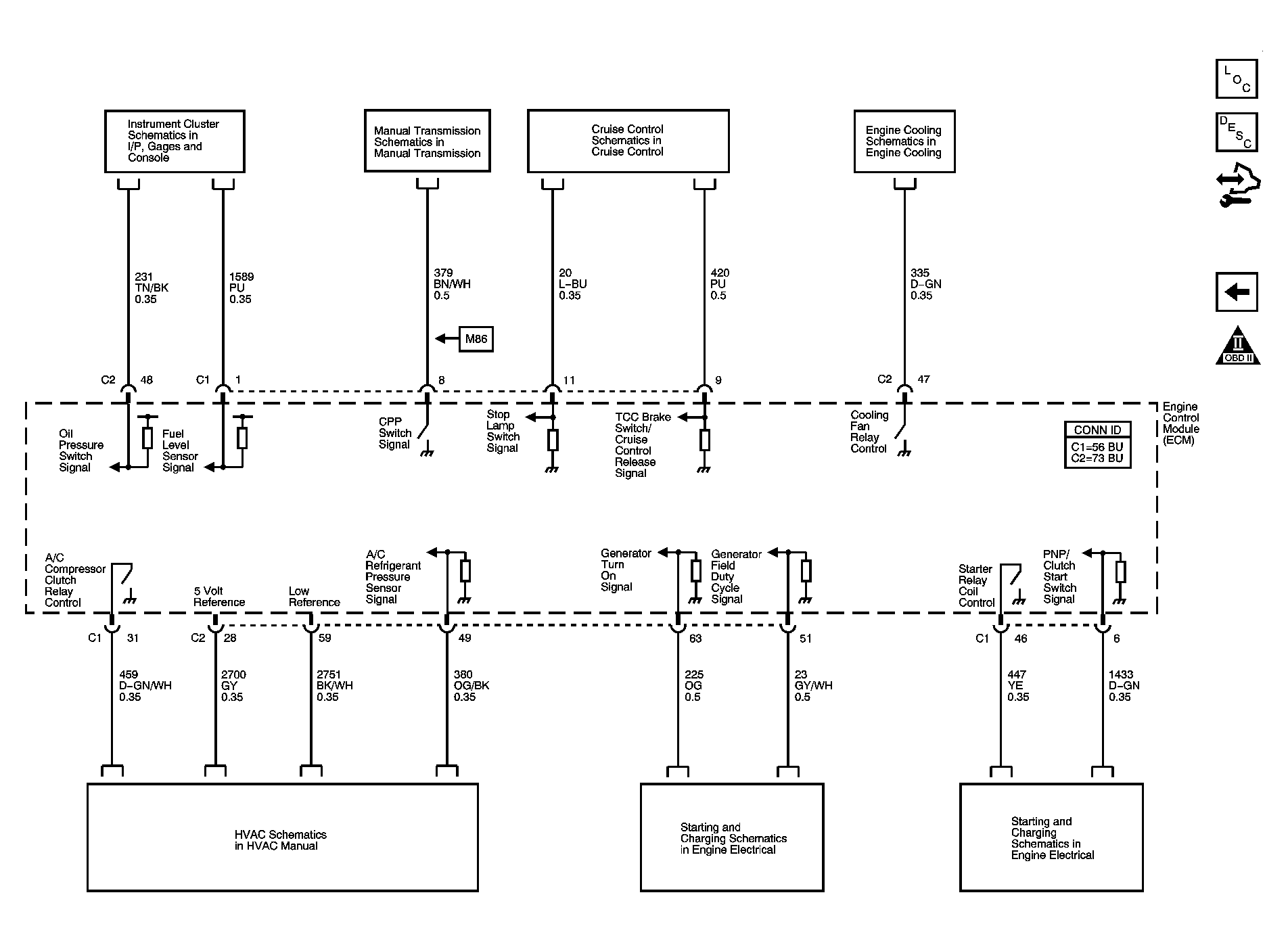

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
