Armrest Bracket Replacement
Armrest Bracket Replacement

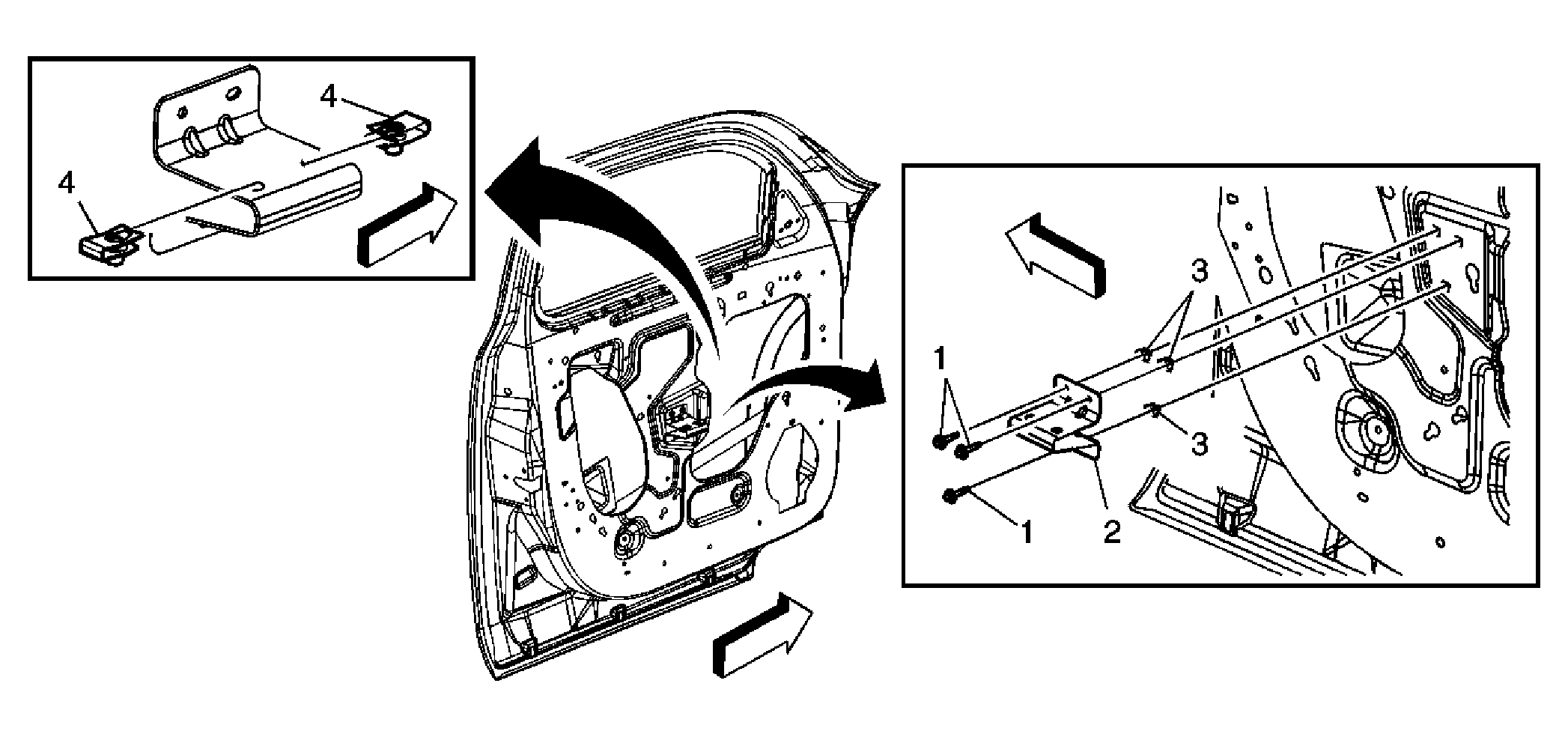

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. |
|
| 1 | Side Door Armrest Bracket Screw (Qty: 3) Tighten: 9 N.m (80 lb in) |
| 2 | Side Door Armrest Bracket |
| 3 | Side Door Armrest Bracket Nut (Qty: 3) |
| 4 | Side Door Armrest Bracket Nut (Qty: 2) |
