Armrest Pull Cup Replacement
Armrest Pull Cup Replacement

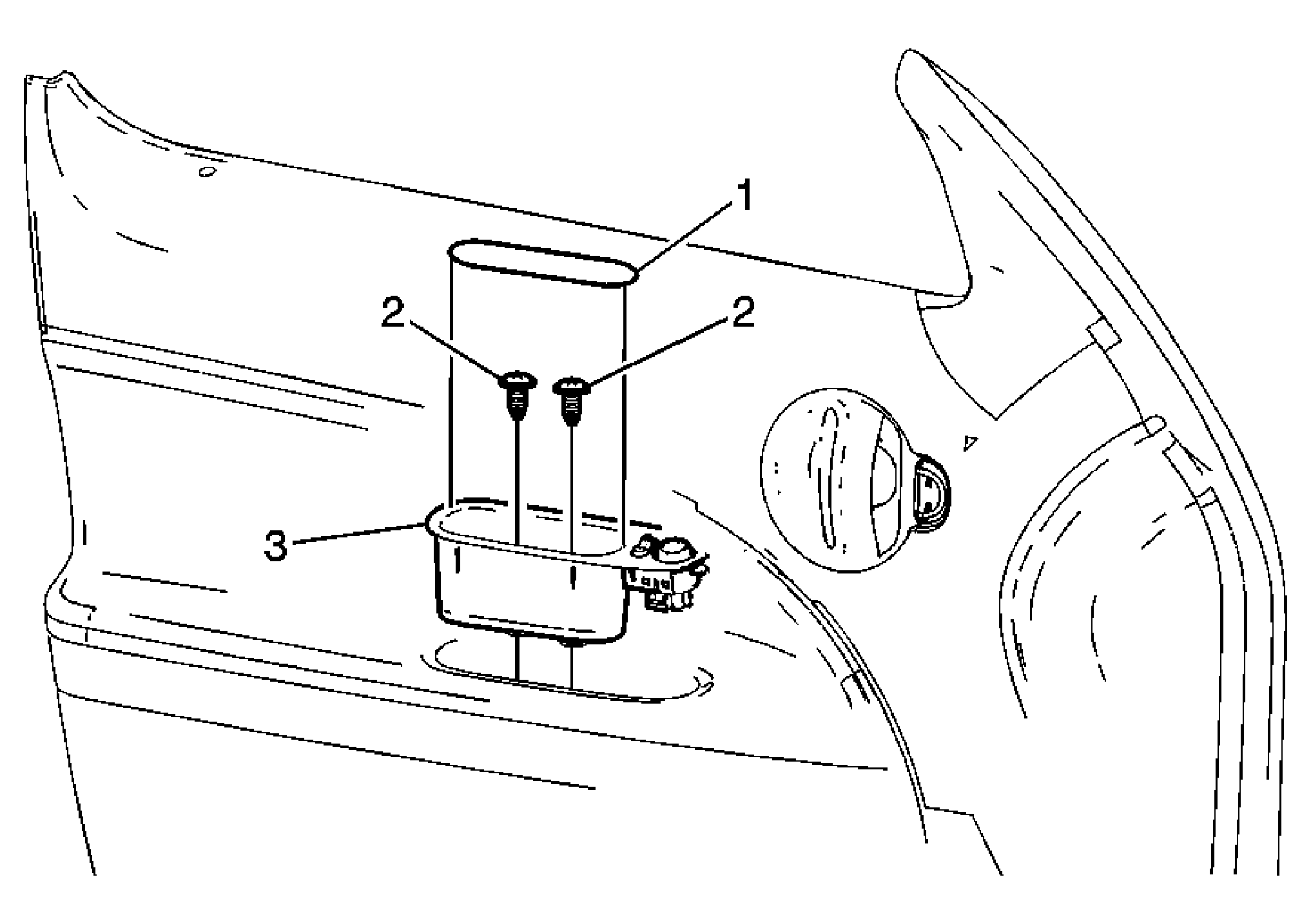

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. |
|
| 1 | Side Door Armrest Pull Cup Liner |
| 2 | Side Door Armrest Pull Cup Screw (Qty: 2) Tighten: 3 N.m (25 lb in) |
| 3 | Side Door Armrest Pull Cup Tip: Disconnect the electrical connector to the power mirror, if equipped. |
