Cooling System Component Views

WARNING: This page is about a different car, the 2005 Pontiac Pursuit and 2005 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

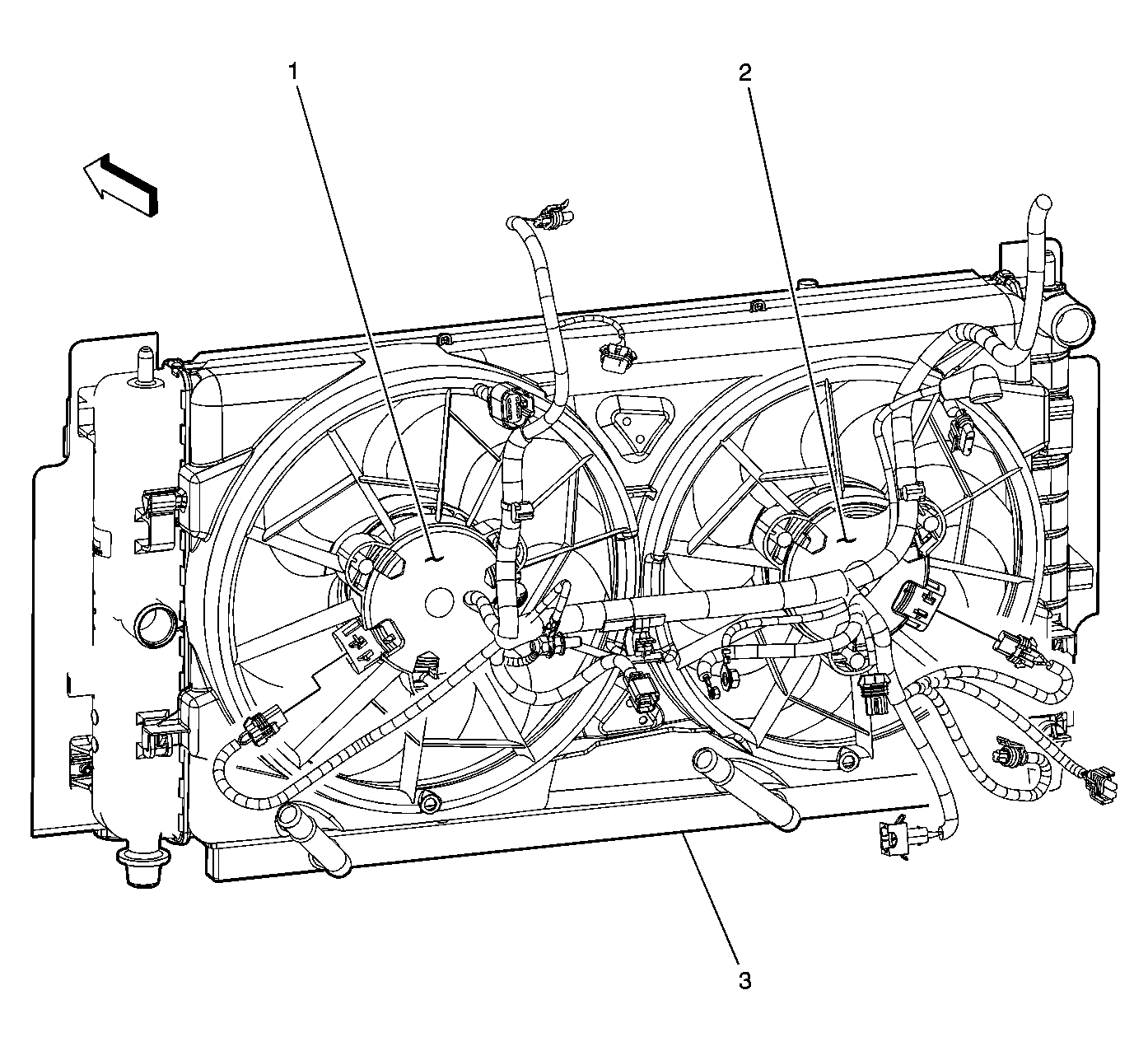

Fig 1: Cooling Fan Motors (LSJ)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan 1
2	Cooling Fan 2
3	Radiator

Fig 2: Cooling Fan Motor (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan
2	Fan Shroud
3	Radiator
