SIR Component Views

WARNING: This page is about a different car, the 2007 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3)
2	Inflatable Restraint Front End Sensor
3	Engine Cooling Fan
4	Radiator

Fig 2: Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (ASF)
2	Inflatable Restraint Instrument Panel (I/P) Module
3	Inflatable Restraint Roof Rail Module - Right (ASF)
4	Floor Pan
5	Inflatable Restraint Steering Wheel Module

Fig 3: Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger (KA1)
2	Seat Belt Switch - Right
3	Inflatable Restraint Front Passenger Presence System (PPS) Sensor Pad
4	Inflatable Restraint Front Passenger Presence System (PPS) Module
5	Heated Seat Control Module Passenger (KA1)
6	Inflatable Restraint Front Passenger Presence System (PPS) Sensor

Fig 4: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Ambient Light Sensor
3	Hazard Switch
4	Fog Lamp Switch (T37)
5	I/P Compartment
6	Radio
7	HVAC Control Assembly
8	Cigar Lighter (DT4)/Power Outlet (w/o DT4)
9	Master Window Switch
10	Rear Wiper/Washer Switch
11	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
12	Instrument Panel (I/P) Dimmer Switch

Fig 5: Center Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Body Control Module (BCM)
3	Master Window Switch
4	A/T Shift Control (MN5)
5	Floor Panel
6	Park Brake Switch
7	Inflatable Restraint Sensing and Diagnostic Module (SDM)
8	Floor Panel

Fig 6: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror Motor - Driver
3	Door Lock Switch - Driver
4	Outside Rearview Mirror Switch
5	Speaker - LF Door
6	Window Motor - Driver
7	Inflatable Restraint Side Impact Sensor (SIS) Left (ASF)
8	Door Latch - Driver

Fig 7: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Motor - Passenger
2	Door Frame
3	Door Latch - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) Right (ASF)
5	Speaker - RF Door
6	Window Motor - Passenger
7	Door Lock Switch - Passenger

Fig 8: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Ignition Lock Control Actuator (MN5)
5	Power Steering Control Module (PSCM)
6	Electronic Power Steering (EPS) Motor
7	Ignition Switch

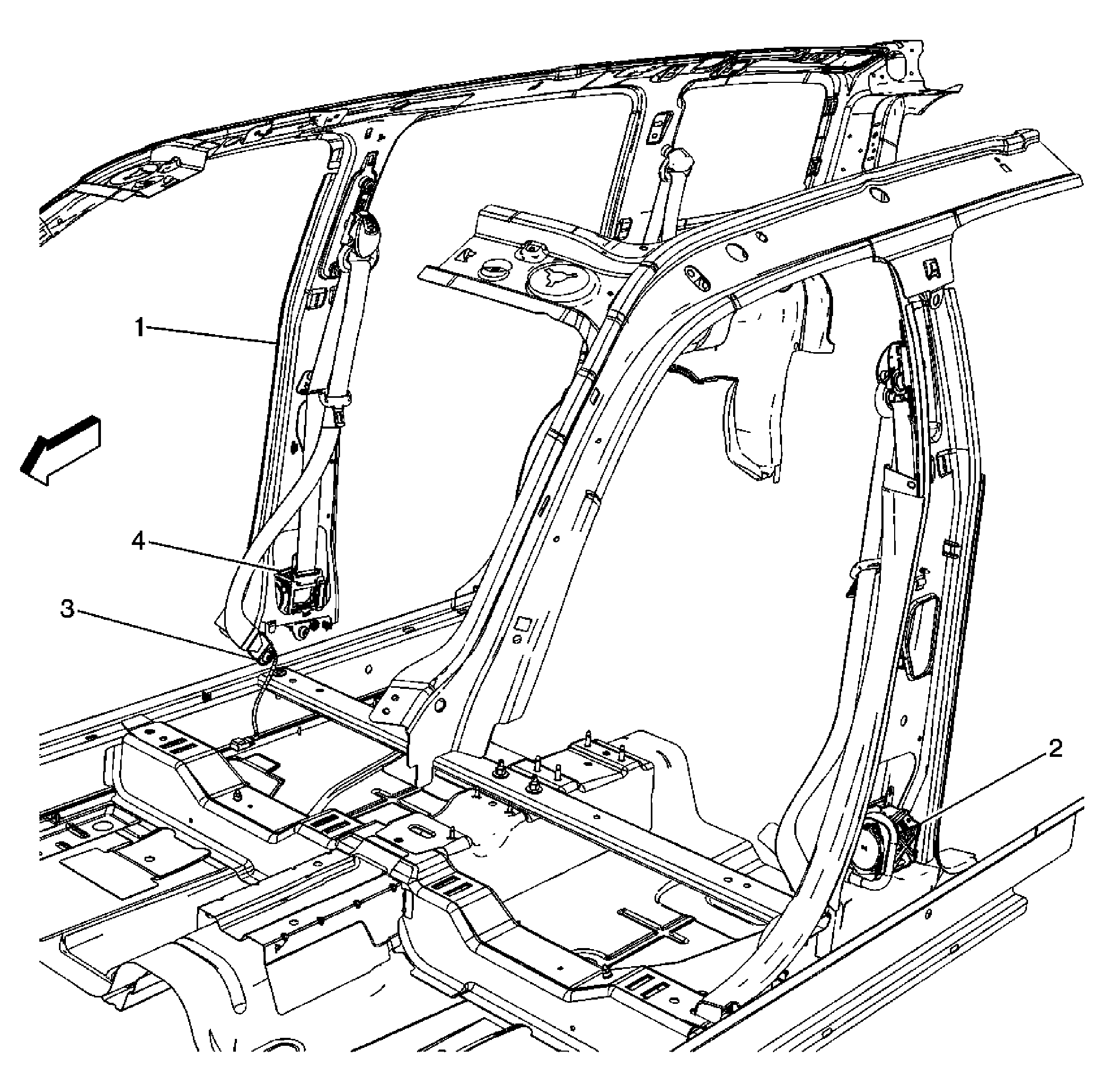

Fig 9: Seat Belt Tensioner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger B Pillar
2	Seat Belt Pretensioner - Left
3	Inflatable Restraint Passenger Seat Belt Tension Sensor
4	Seat Belt Pretensioner - Right
