Inflatable Restraint Instrument Panel Module Indicator Replacement

WARNING: This page is about a different car, the 2007 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

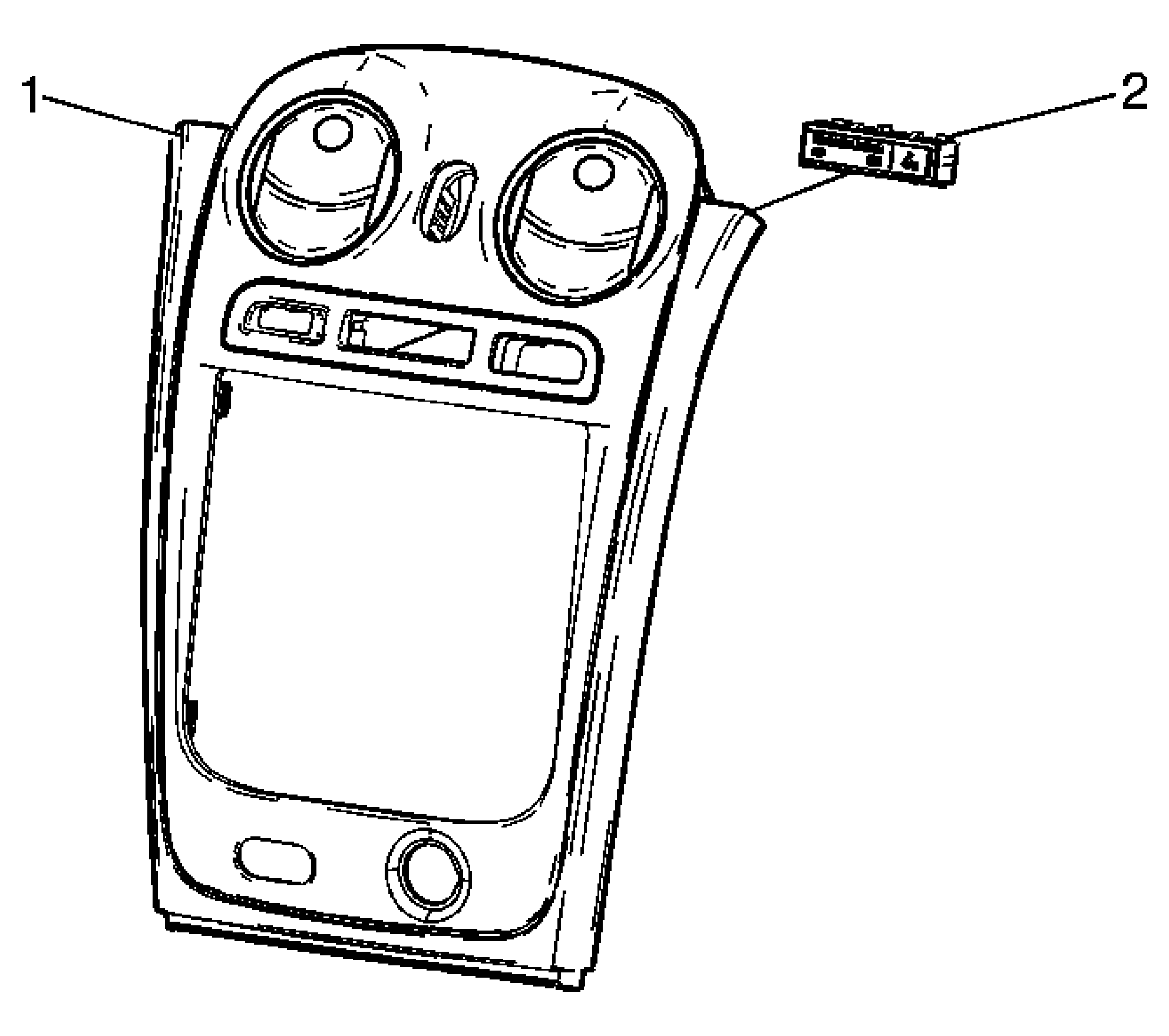

Fig 1: Indicator Replacement - Inflatable Restraint IP Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Trim Plate, Instrument Panel Accessory Tip: Disconnect the electrical connector.
2	Indicator, Instrument Panel Inflatable Restraint Tip: Disconnect the electrical connector.
