Fog Lamp Switch Replacement
WARNING: This page is about a different car, the 2007 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.
Fog Lamp Switch Replacement

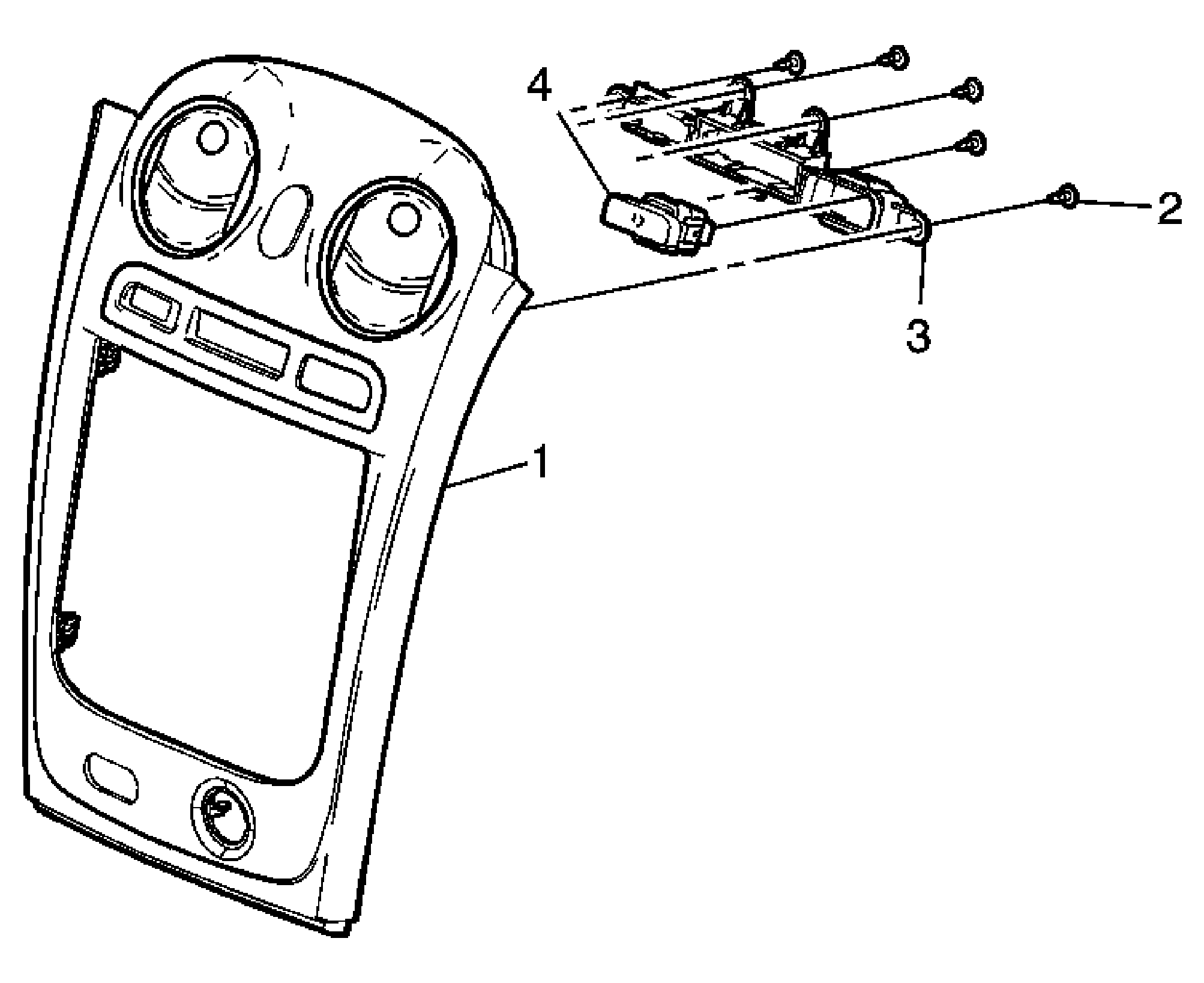

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Trim Plate, Instrument Panel Accessory Refer to Instrument Panel Accessory Trim Plate Replacement . |
| 2 | Screw, Inflatable Restraint Indicator Bracket (Qty: 5) Tighten: 2 N.m (18 lb in) |
| 3 | Bracket, Inflatable Restraint Indicator |
| 4 | Switch Assembly, Fog Lamp |
