Rear Door Power Window Switch Replacement

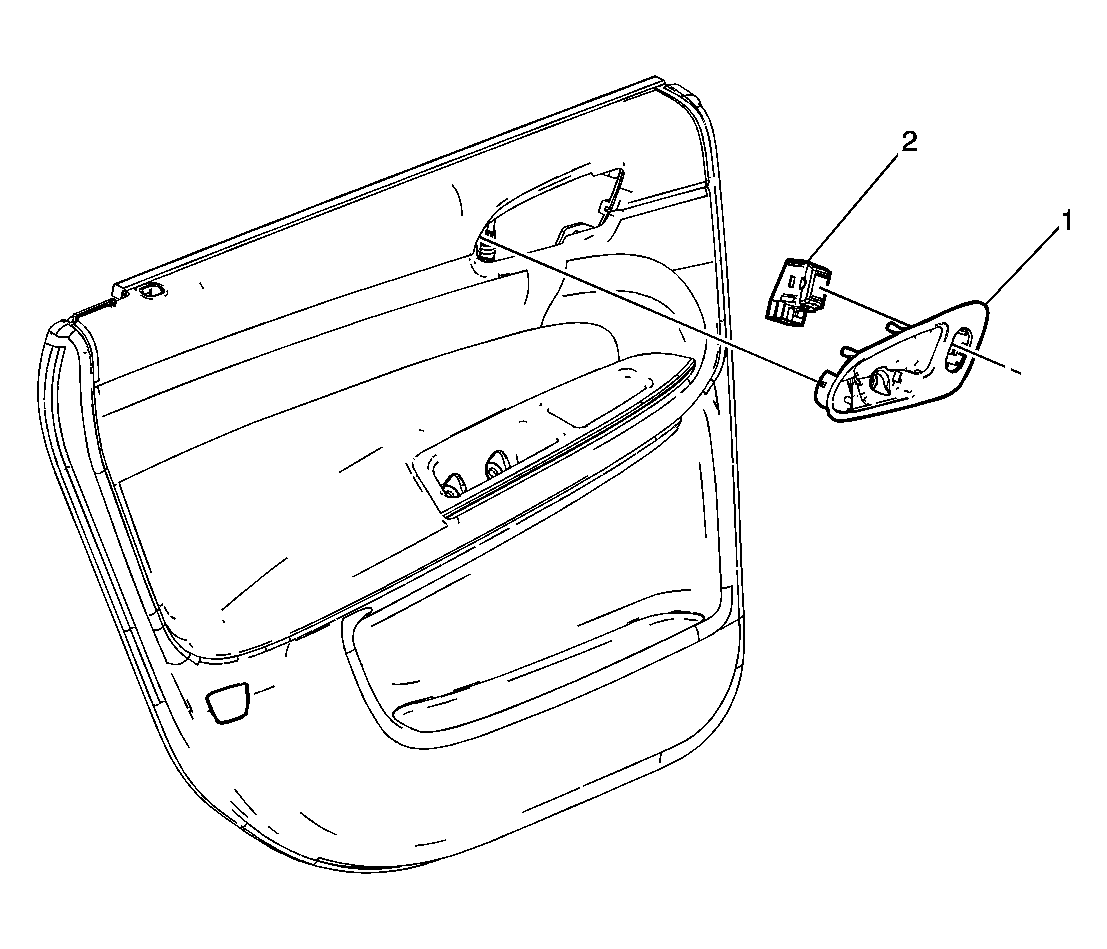

Fig 1: Replacing Rear Door Power Window Switch

Courtesy of GENERAL MOTORS CORP.

Power Window Switch Replacement - Rear Door

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Side Door Inside Handle Bezel Tip: Pull out at the front edge of the bezel to disengage the retainer Disconnect the power window switch electrical connector.
2	Rear Side Door Window Switch Assembly
