Power Window Schematics

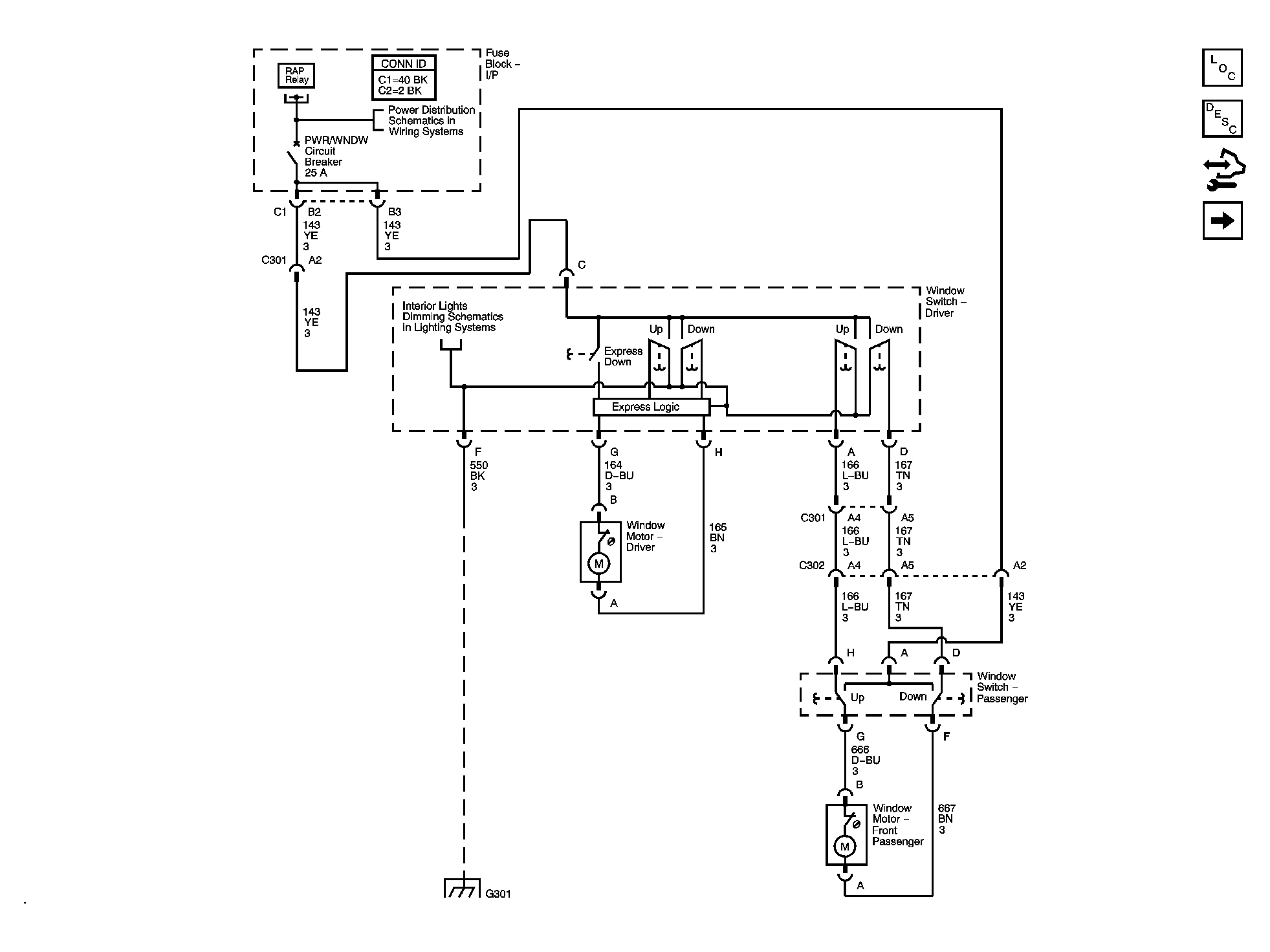

Fig 1: Coupe - Wiring Diagram
GM1648961Courtesy of GENERAL MOTORS CORP.

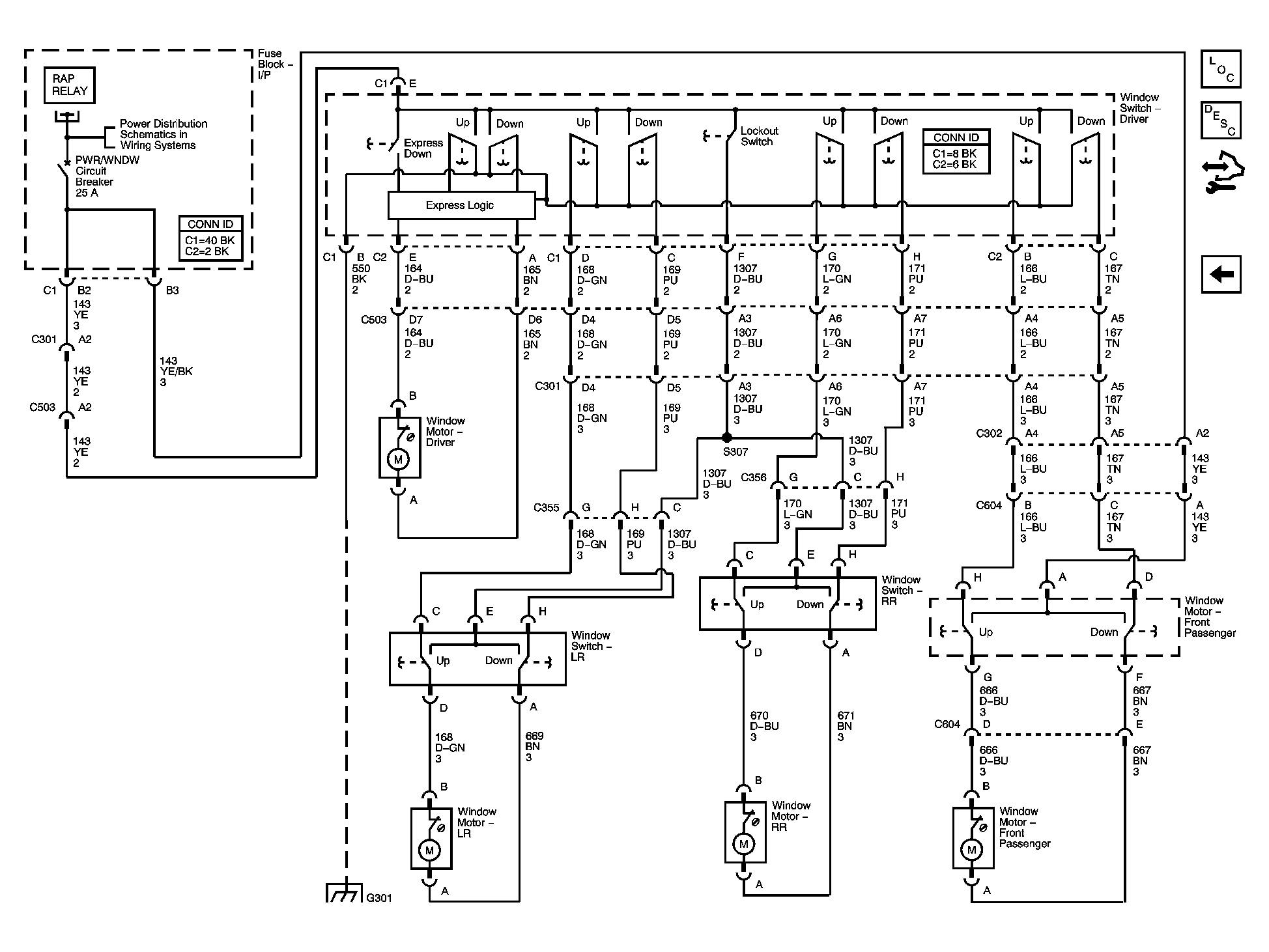

Fig 2: Sedan - Wiring Diagram
GM1648964Courtesy of GENERAL MOTORS CORP.
