Rear Seat Belt Retractor Replacement

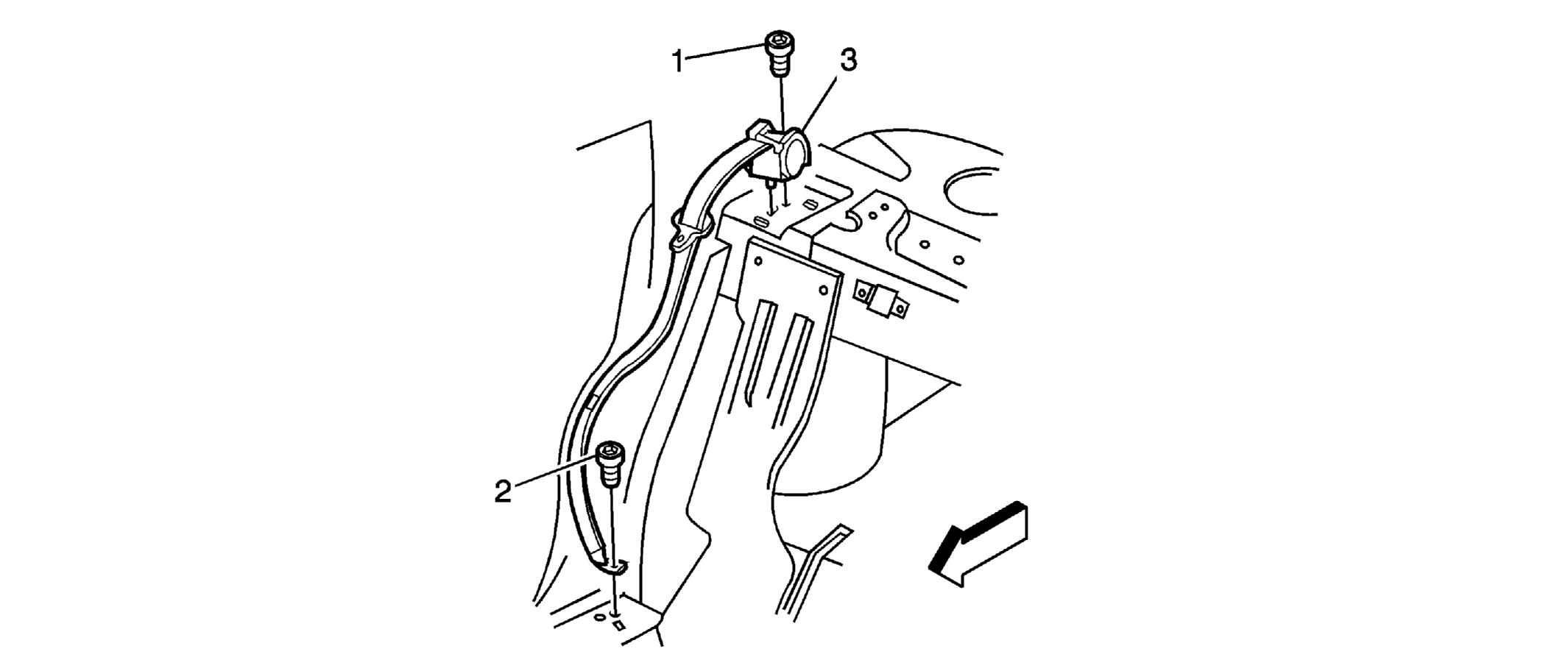

Fig 1: Replacing Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS CORP.

Seat Belt Retractor Replacement - Rear

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the trim panel, rear window shelf. Refer to Trim Panel Replacement - Rear Window Shelf .
1	Bolt, Seat Shoulder Belt Retractor Tighten: 68 N.m (50 lb ft)
2	Bolt, Seat Shoulder Belt Tighten: 42 N.m (31 lb ft)
3	Retractor, Seat Shoulder Belt
