Power Mirror Motor Replacement
Motor Replacement - Power Mirror

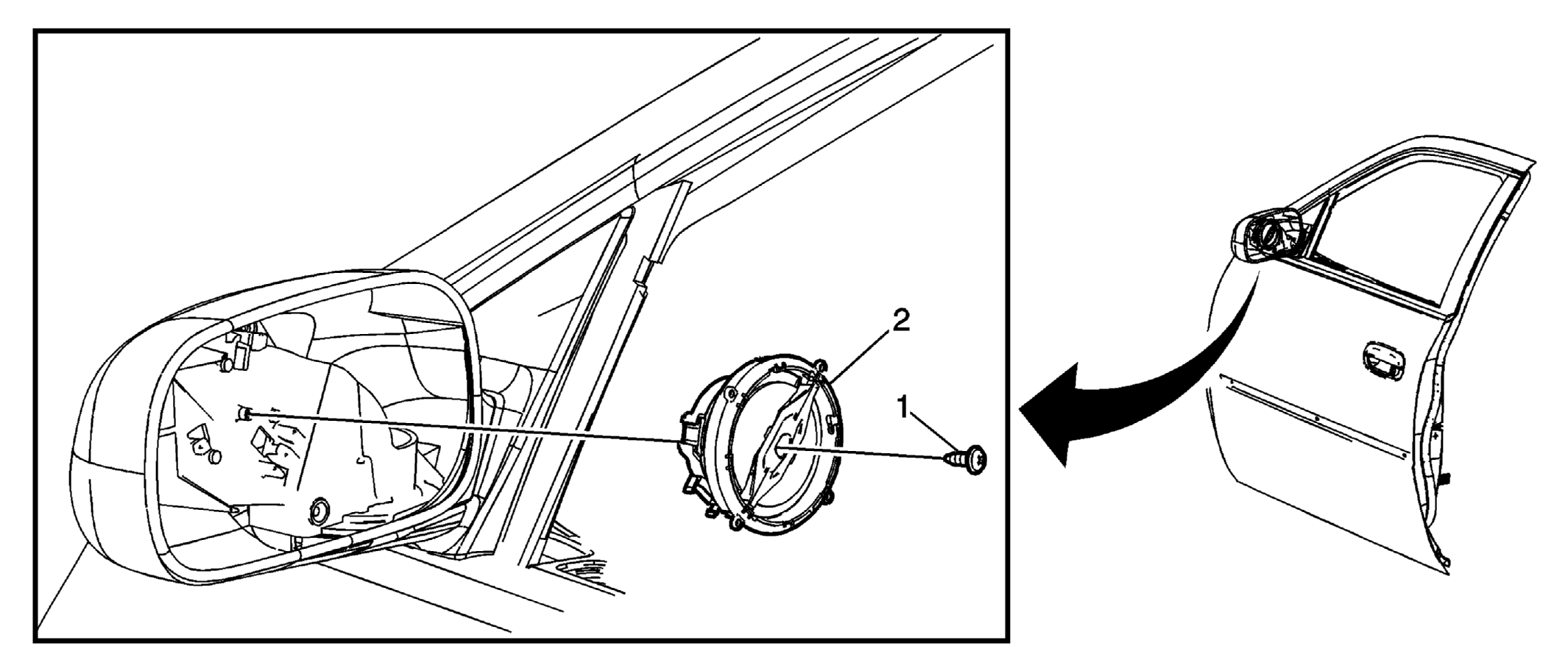

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the door mirror face. Refer to Mirror Face Replacement . |
|
| 1 | Screw, Front Door Mirror Motor Tighten: 2 N.m (18 lb in) |
| 2 | Motor, Front Door Mirror Tip: Disconnect the electrical connector from the mirror motor. |
