Door Lock/Indicator Schematics

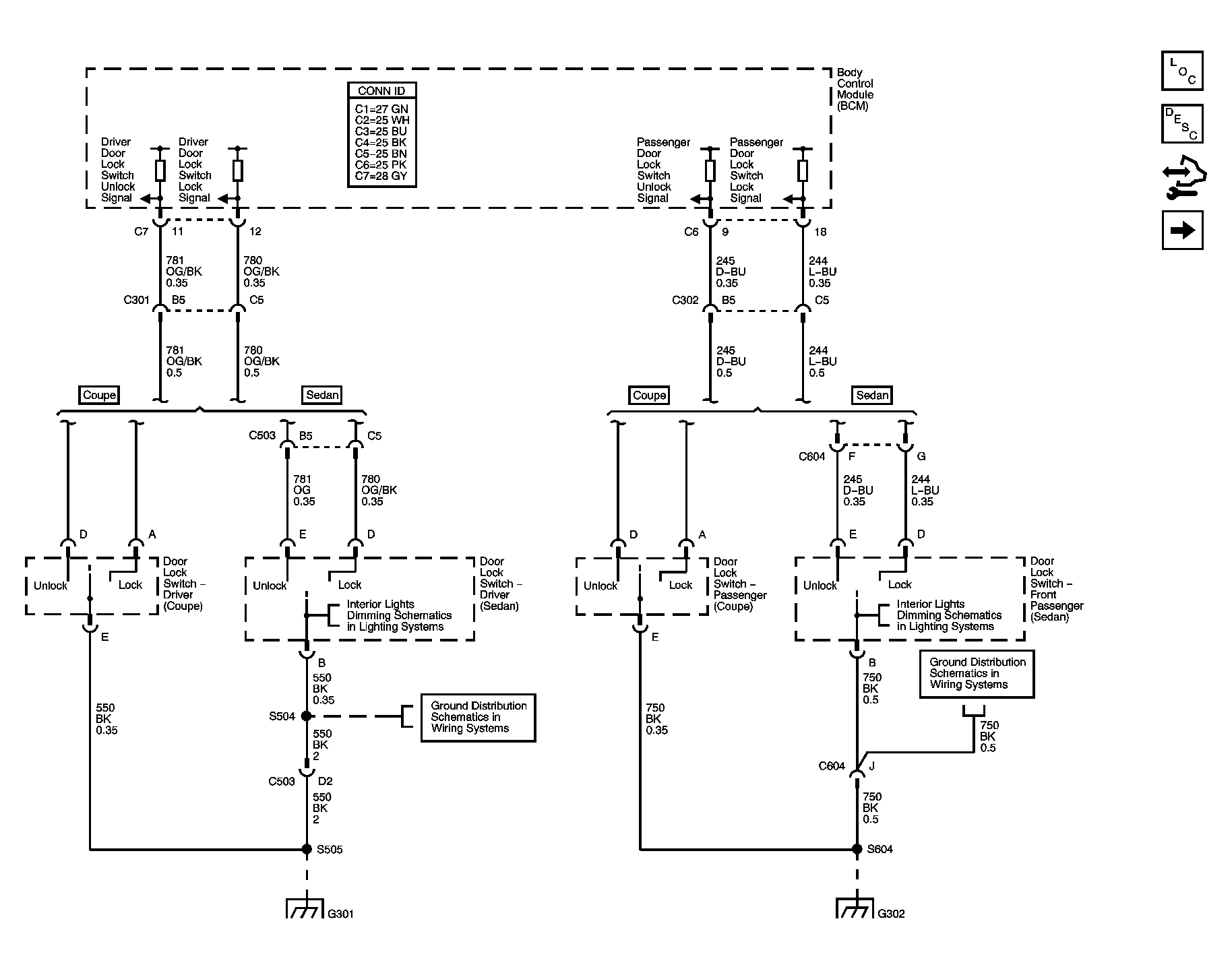

Fig 1: Door Lock Switches - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

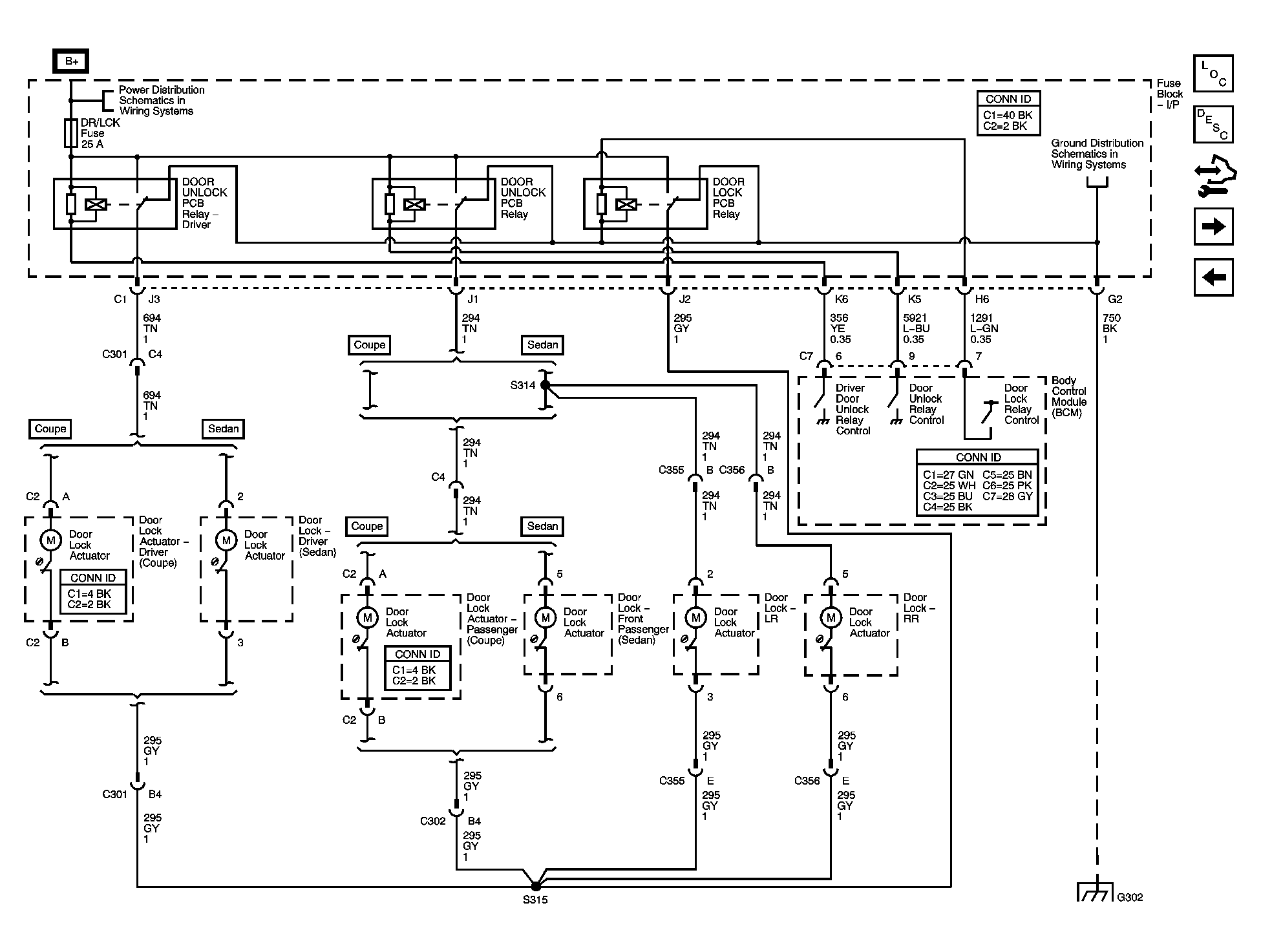

Fig 2: Door Lock Actuators - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

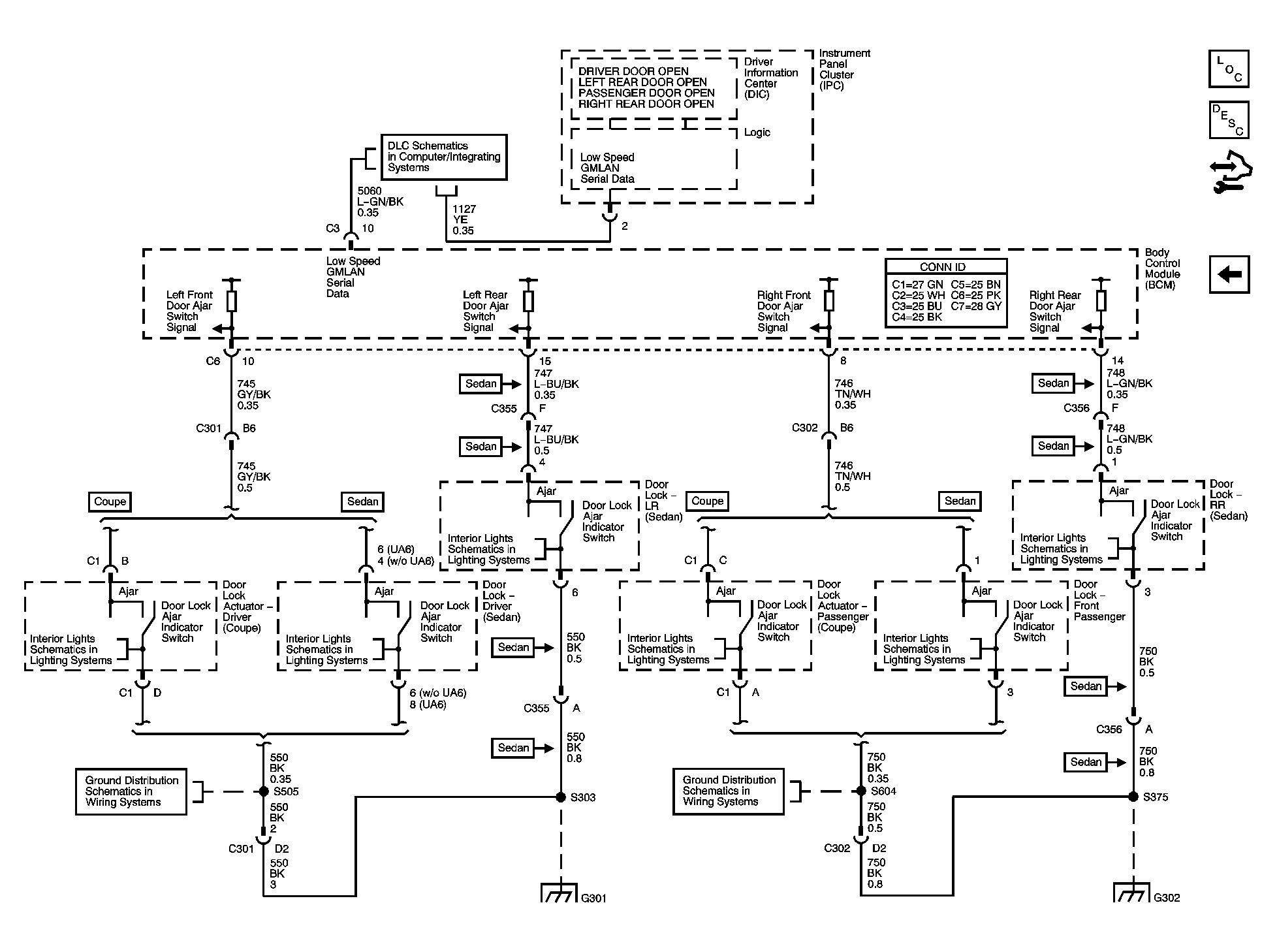

Fig 3: Door Ajar Indicators - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
