ABS Schematics
ABS Schematics

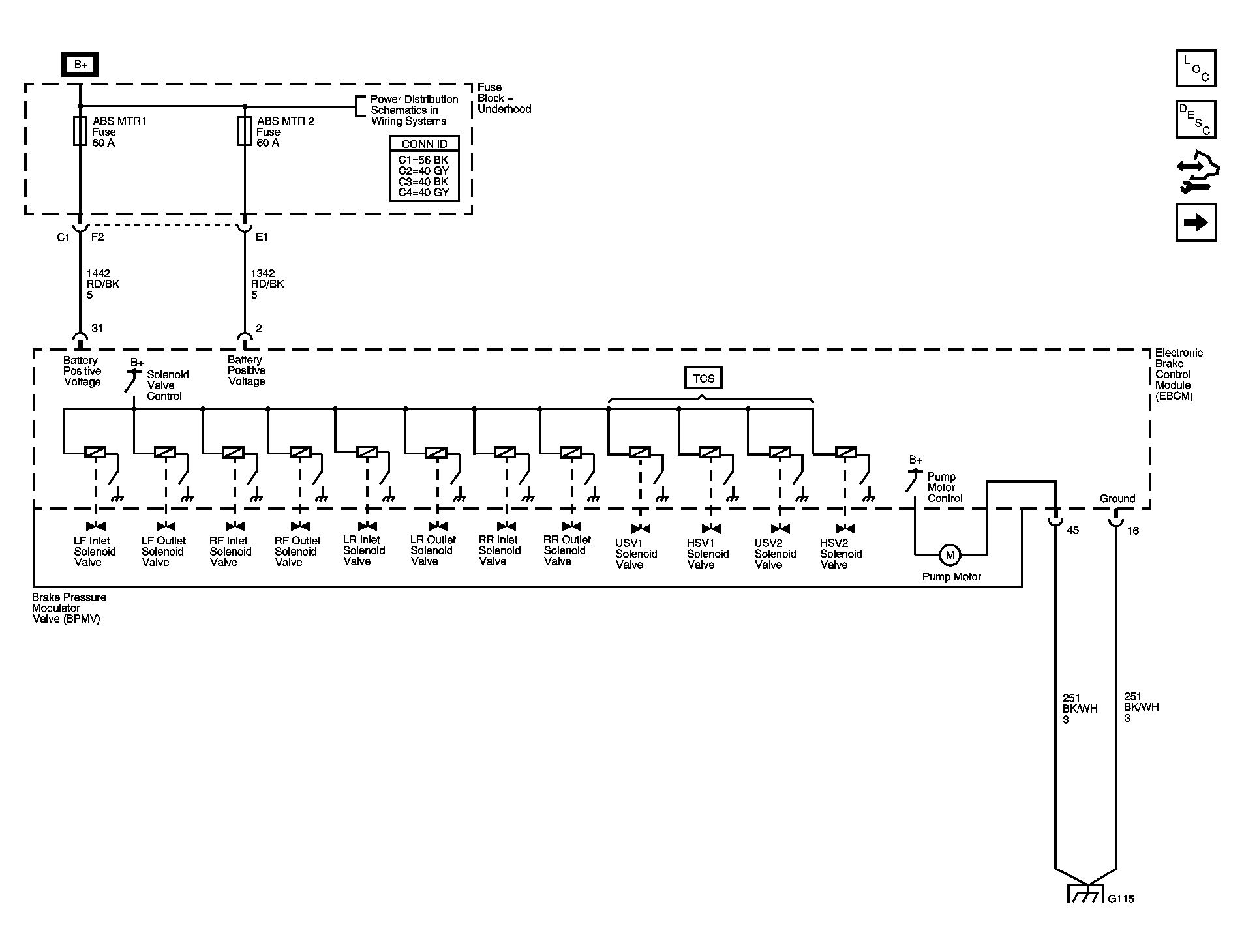

Fig 1: Power, Ground, and Brake Pressure Modulator Valves - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

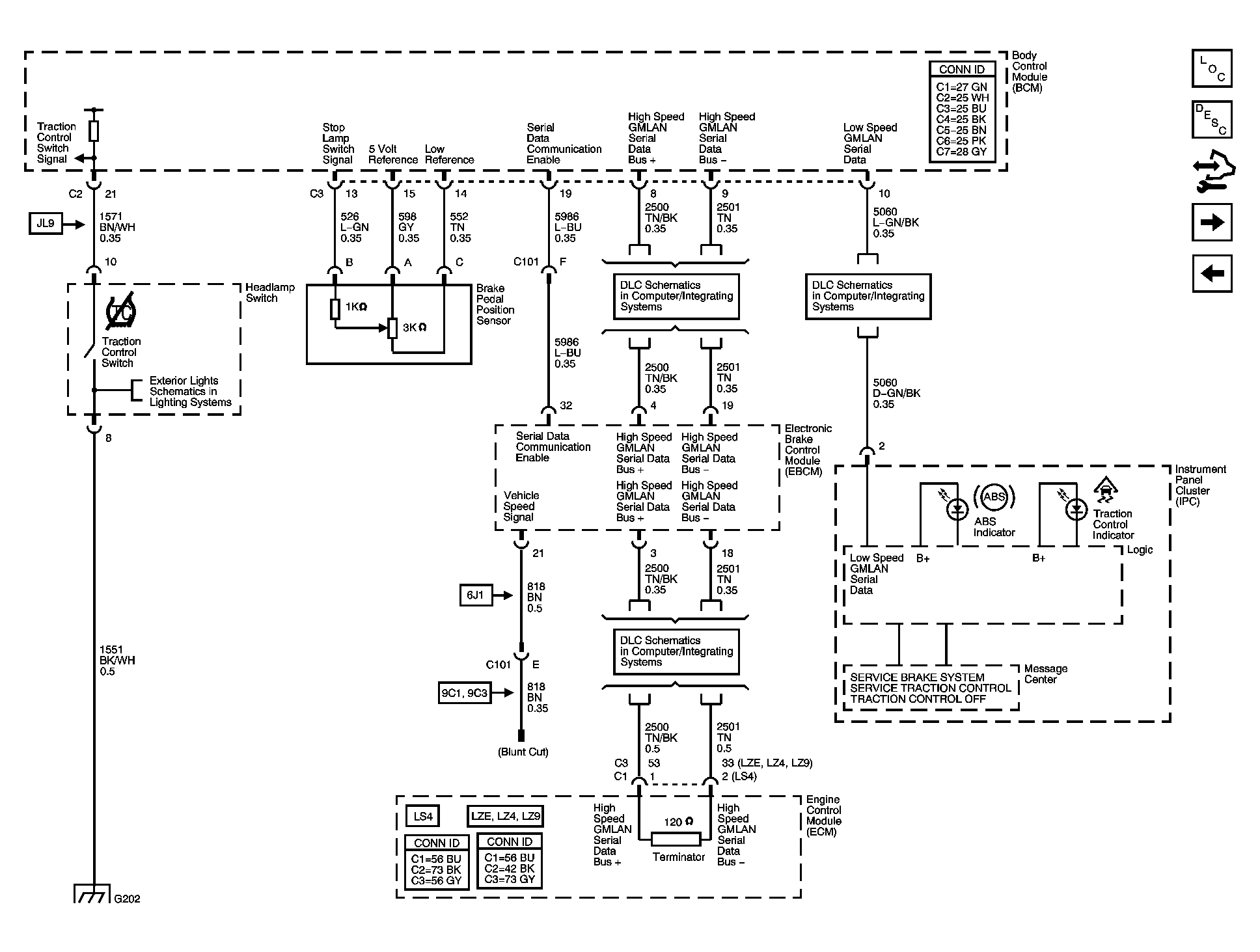

Fig 2: Indicators, ABS, and Traction Control - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

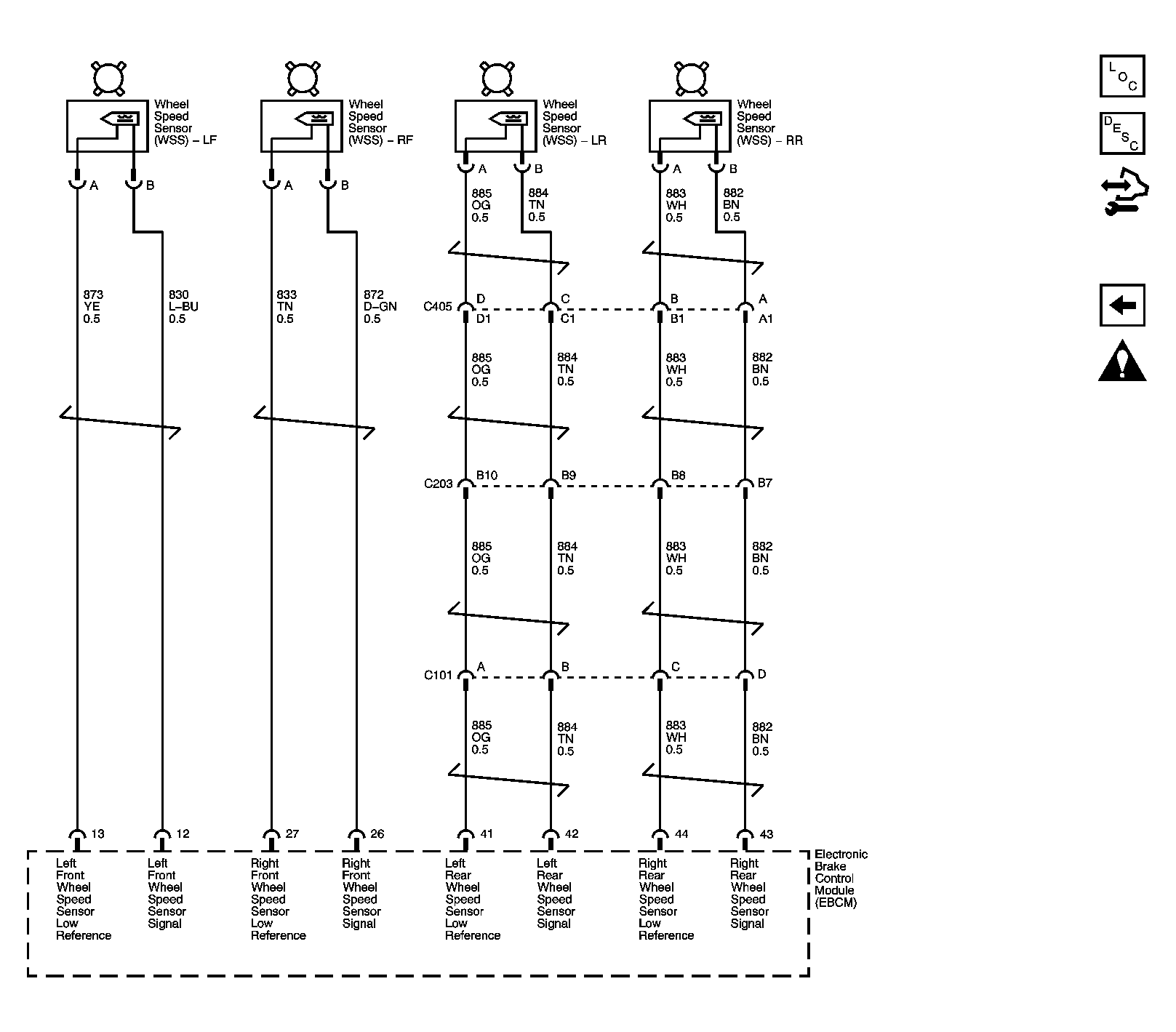

Fig 3: Wheel Speed Sensors - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
