Left Closeout/Insulator Panel Replacement

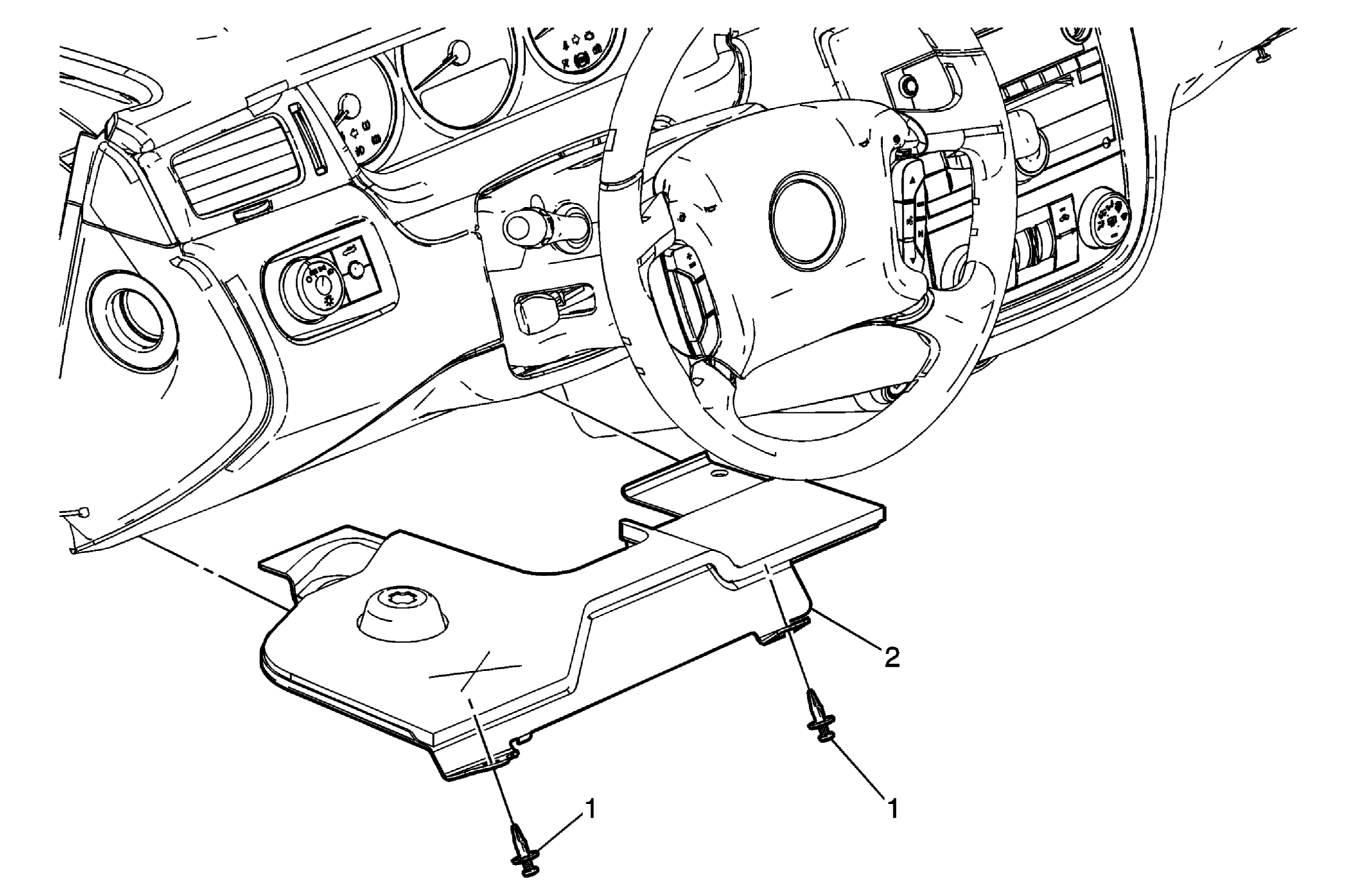

Fig 1: Replacing Left Closeout/Insulator Panel

Courtesy of GENERAL MOTORS CORP.

Closeout/Insulator Panel Replacement - Left

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Push Pin Retainer (Qty: 2)
2	Instrument Panel Closeout/Insulator Panel Tip: Impala shown Monte Carlo similar. Remove the courtesy lamp, if equipped.
