Right Closeout/Insulator Panel Replacement

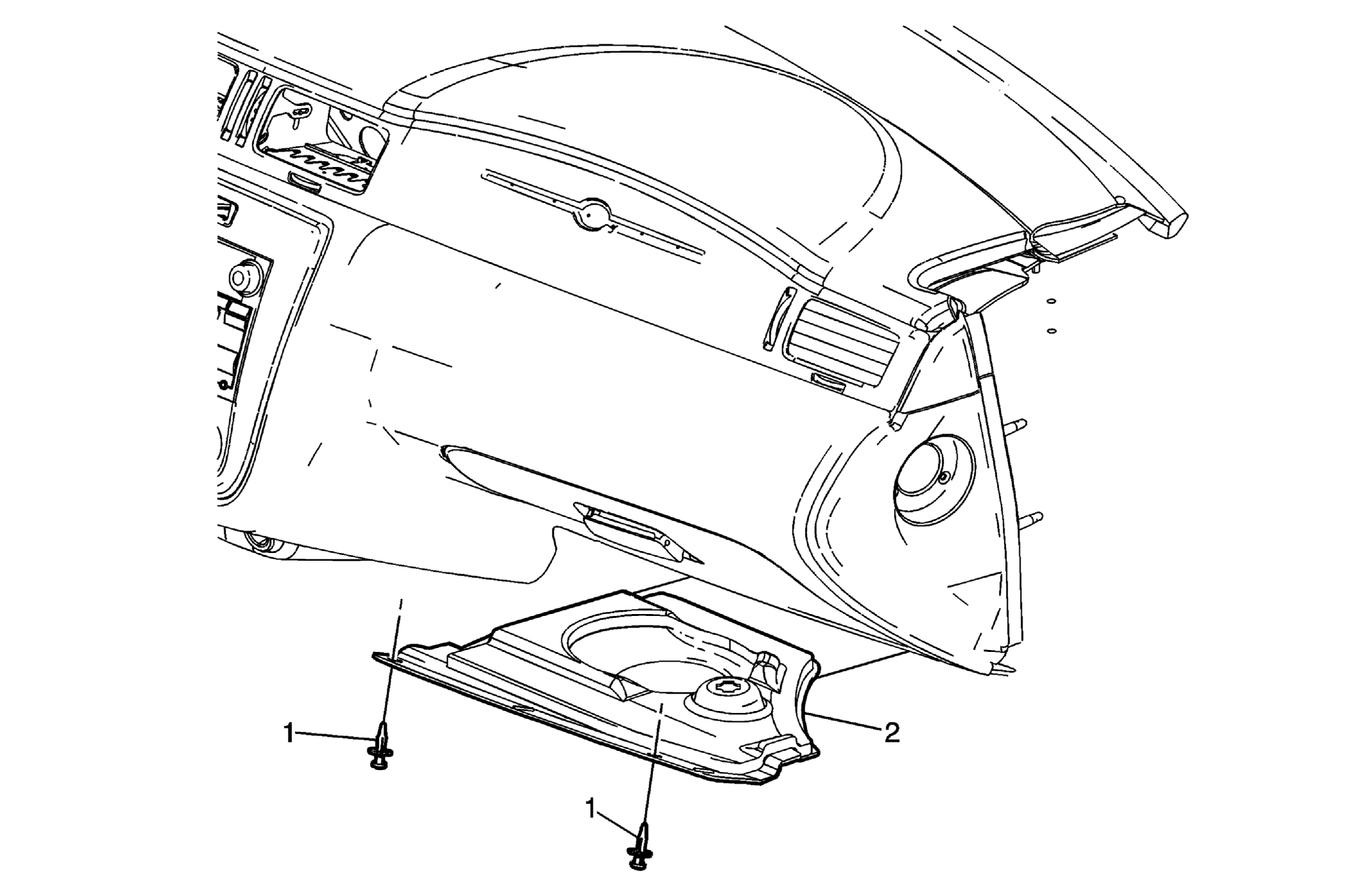

Fig 1: Replacing Right Closeout/Insulator Panel

Courtesy of GENERAL MOTORS CORP.

Closeout/Insulator Panel Replacement - Right

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Retainer, Push Pin (Qty: 2)
2	Closeout/Insulator Panel, Instrument Panel Tip: Impala shown Monte Carlo similar. Remove the courtesy lamp, if equipped.
