Instrument Panel Courtesy Lamp Bulb Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

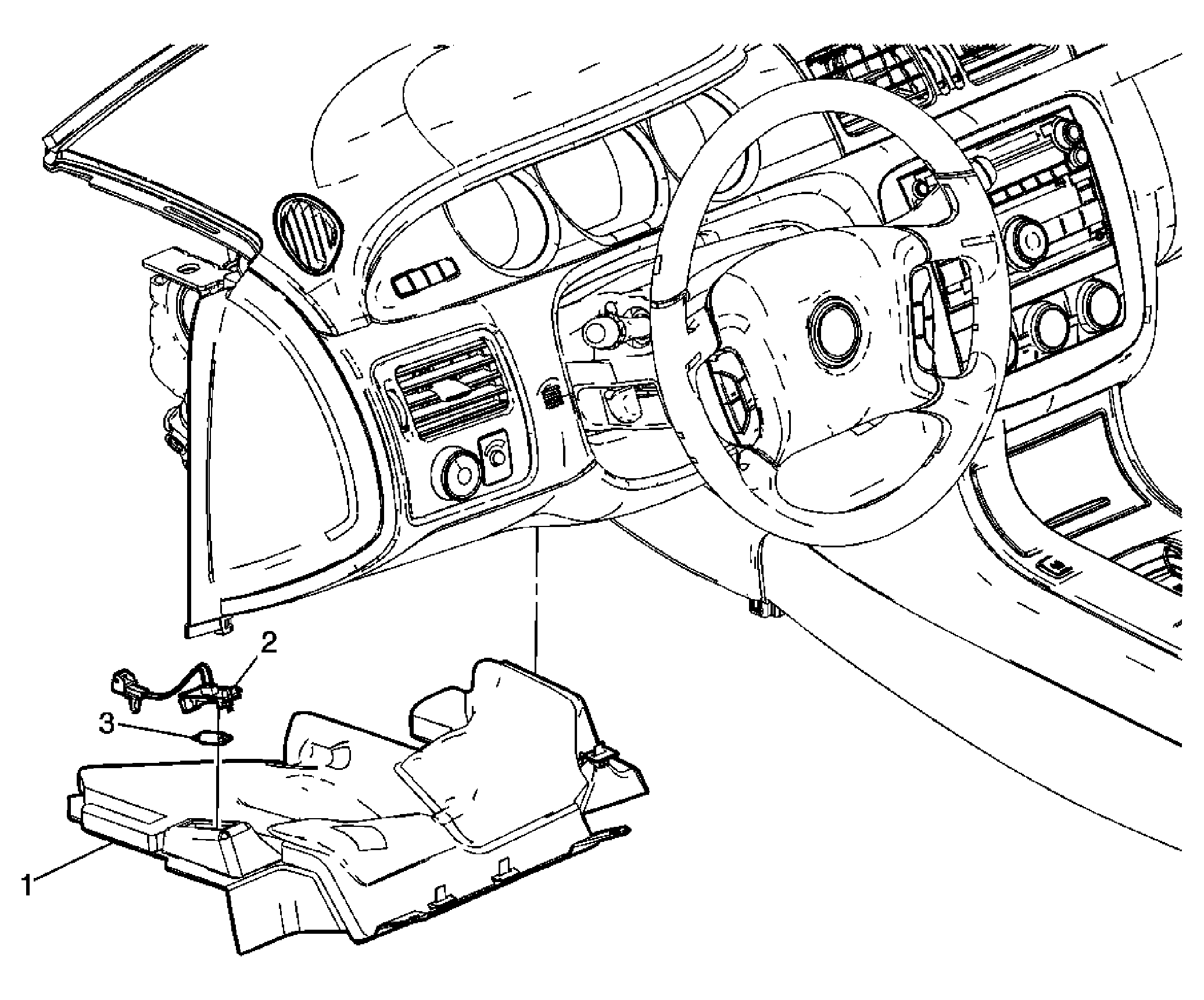

Fig 1: Locating Instrument Panel Courtesy Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Insulator Assembly Refer to Instrument Panel Insulator Panel Replacement - Left Side or Instrument Panel Insulator Panel Replacement - Right Side .
2	Instrument Panel Courtesy Lamp Assembly
3	Instrument Panel Courtesy Lamp Bulb
