Rear Compartment Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

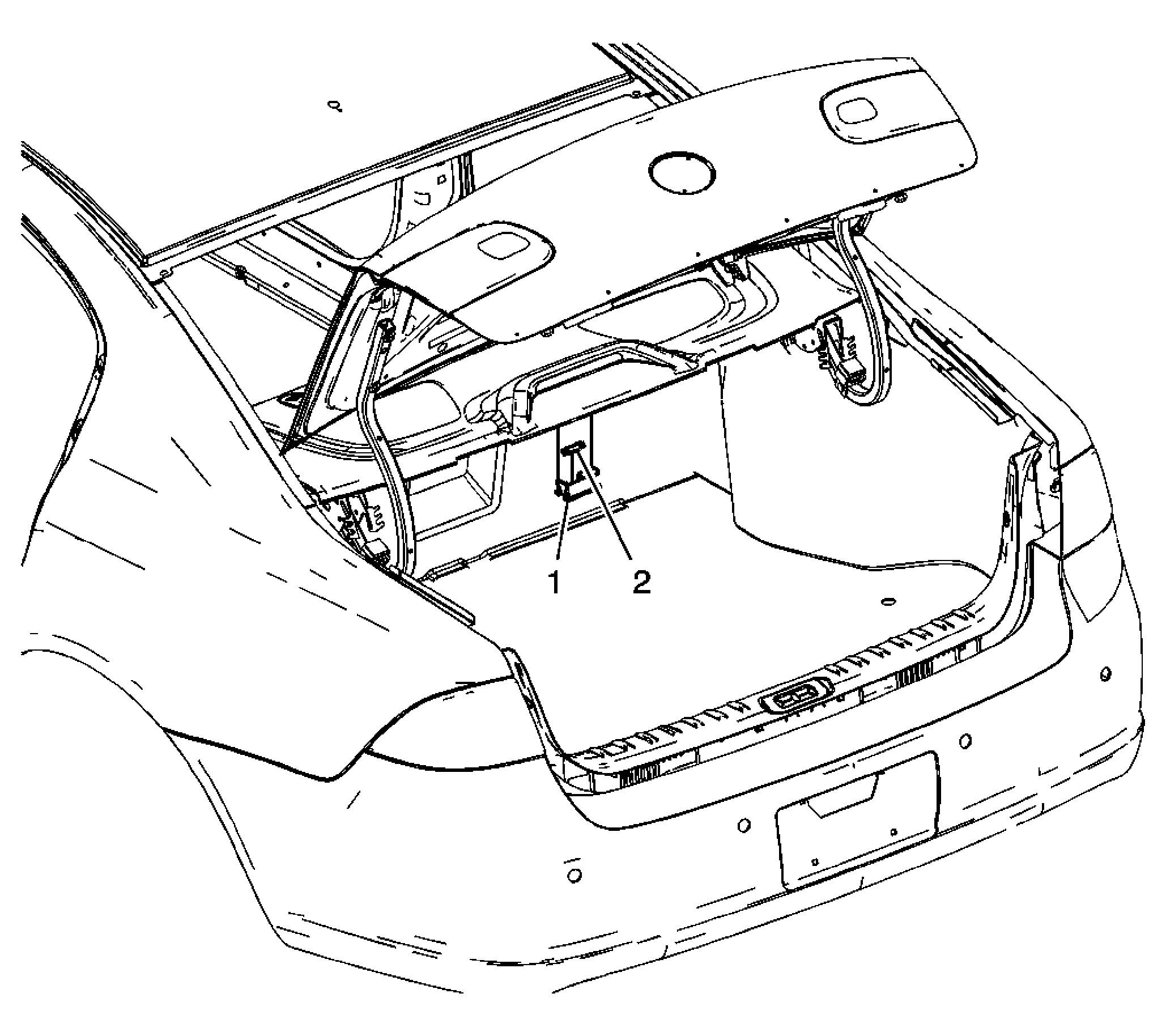

Fig 1: Identifying Rear Compartment Courtesy Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Compartment Lamp Tip: Use a small flat-bladed tool to release the lamp assembly from the rear shelf. Disconnect the electrical connector.
2	Rear Compartment Lamp Bulb
