Rear Turn Signal Lamp Bulb Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

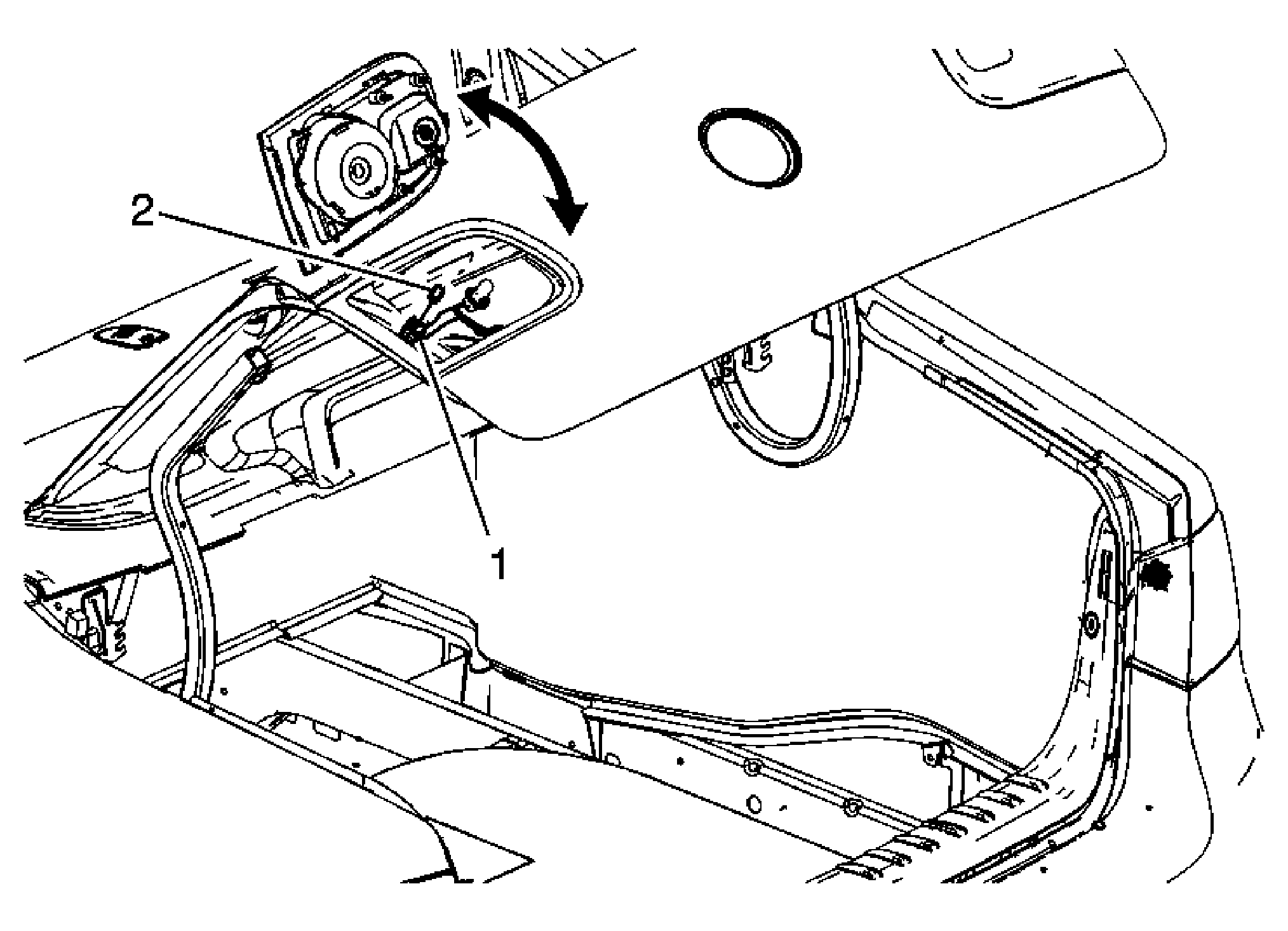

Fig 1: REmoving/Installing Rear Turn Signal Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove either the LR or RR rear auxiliary turn signal lamp assembly. Refer to Rear Auxiliary Turn Signal Lamp Replacement .
1	Turn Signal Indicator Lamp Bulb Socket (Qty: 2) Tip: Twist the bulb socket counterclockwise a quarter turn to access the bulb.
2	Turn Signal Indicator Lamp Bulb (Qty: 2) Tip: Pull the bulb straight from the bulb socket.
