Daytime Running Lamp Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

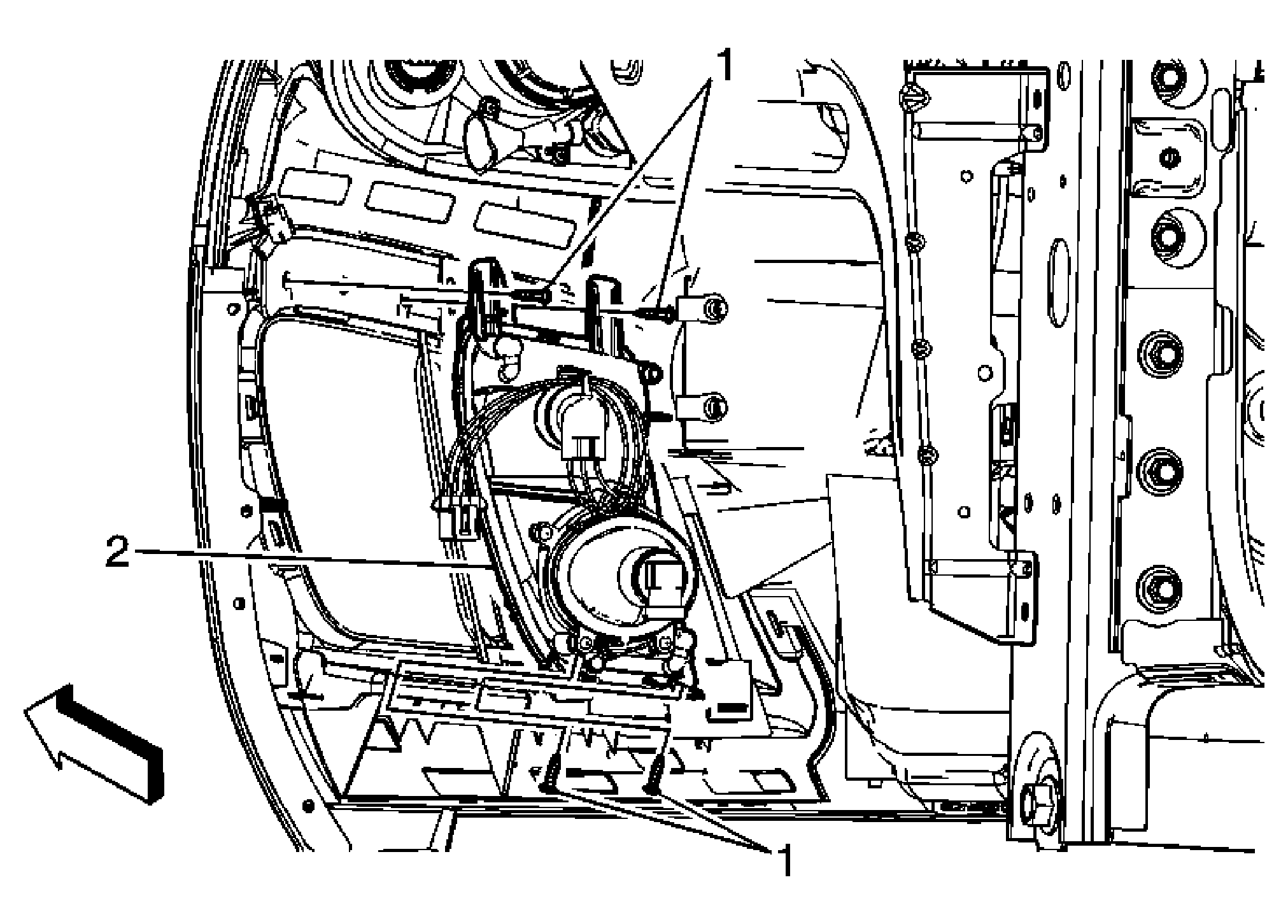

Fig 1: Daytime Running Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Reposition either the LF or RF front wheelhouse liner for access to the running lamp. Refer to Front Wheelhouse Liner Replacement (Turbo) or Front Wheelhouse Liner Replacement (Base) . Disconnect the fog lamp bulb socket electrical connector. Disconnect the electrical connector harness for the DRL, Park & Turn Signal socket.
1	Daytime Running, Park, Turn Signal Lamp Assembly Screws (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Daytime Running, Park and Turn Signal Lamp Assembly Tip: Transfer the fog lamp assembly to the new DRL lamp assembly. Refer to Front Fog Lamp Replacement . Aim the fog lamp after installation. Refer to Fog Lamp Aiming .

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Reposition either the LF or RF front wheelhouse liner for access to the running lamp. Refer to Front Wheelhouse Liner Replacement (Turbo) or Front Wheelhouse Liner Replacement (Base) .
Disconnect the fog lamp bulb socket electrical connector.
Disconnect the electrical connector harness for the DRL, Park & Turn Signal socket.

Daytime Running, Park, Turn Signal Lamp Assembly Screws (Qty: 4)

Tighten: 2 N.m (18 lb in)

Daytime Running, Park and Turn Signal Lamp Assembly
Tip:

Transfer the fog lamp assembly to the new DRL lamp assembly. Refer to Front Fog Lamp Replacement .
Aim the fog lamp after installation. Refer to Fog Lamp Aiming .
