Headlamp Bulb Replacement
WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.
Headlamp Bulb Replacement

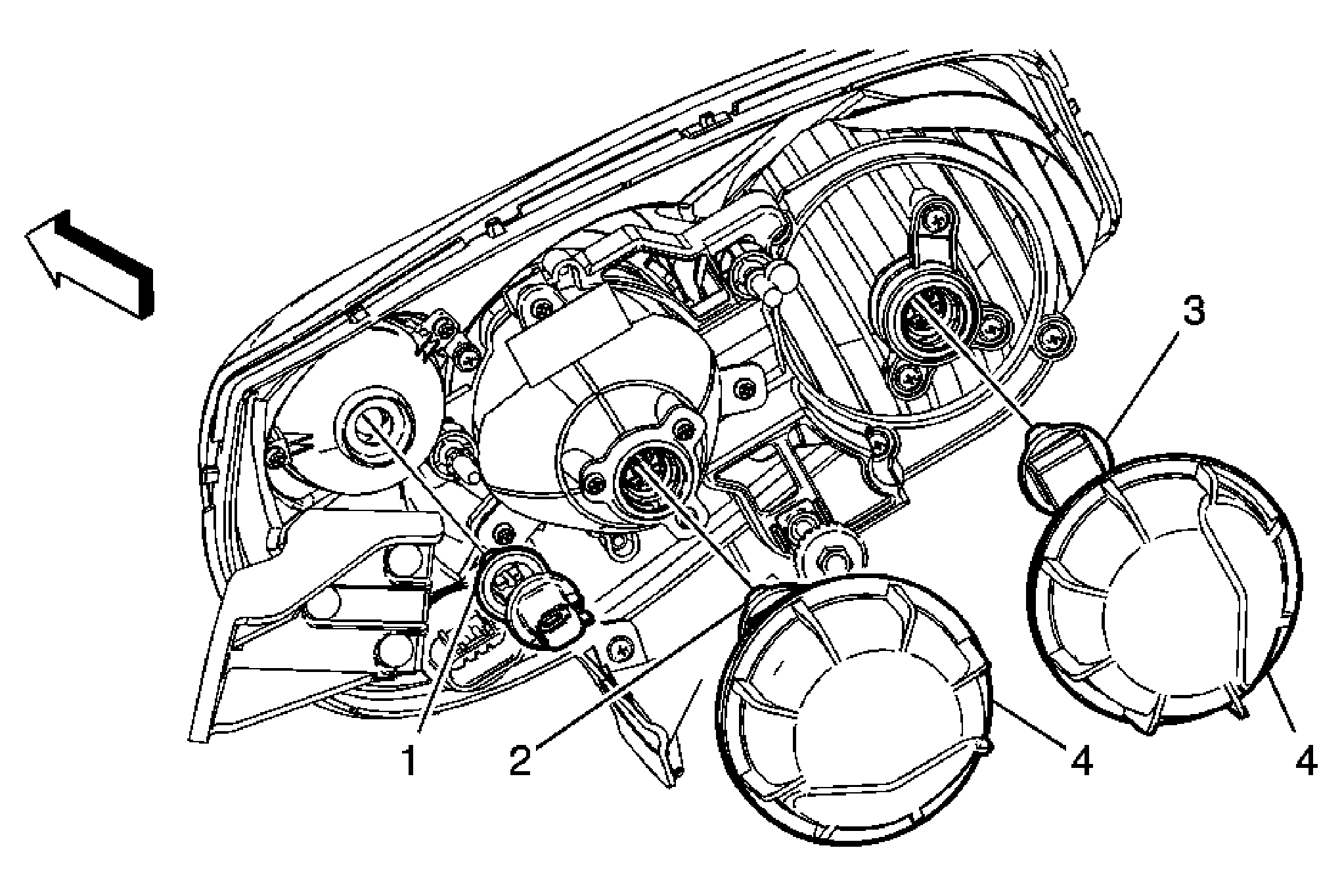

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Open and support the hood. |
|
| 1 | Side Marker Lamp Bulb Tip: Twist the lamp socket counter-clockwise and pull the bulb straight out from the socket. |
| 2 | Headlamp Bulb (Lo Beam) Tip: Disconnect the electrical connector prior to removing the bulb. |
| 3 | Headlamp Bulb (Hi Beam) Tip: Disconnect the electrical connector prior to removing the bulb. |
| 4 | Headlamp Bulb Accessory Cover (Qty: 2) Tip: Turn the accessory bulb covers a quarter turn counter-clockwise and remove. |
