Tail Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

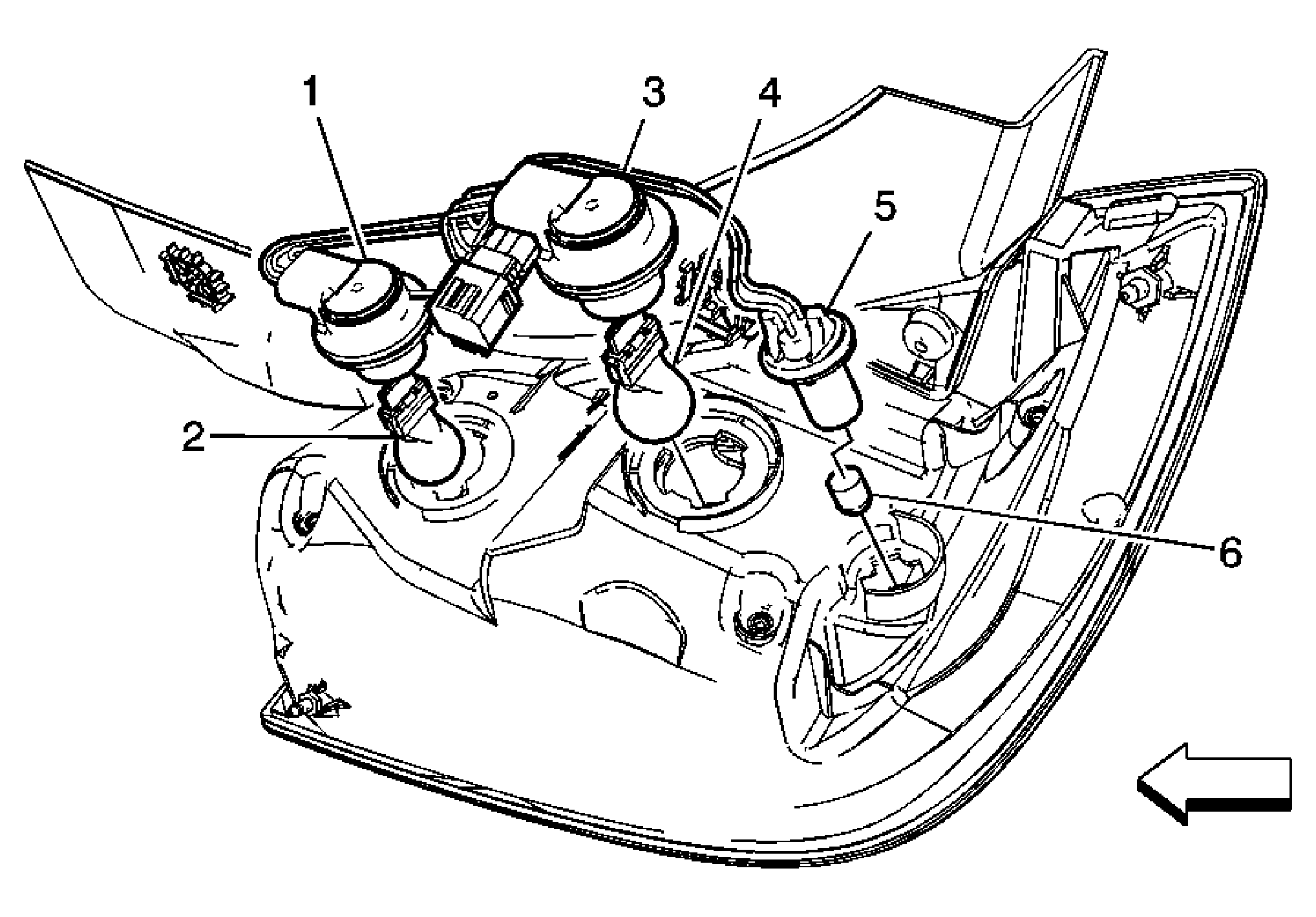

Fig 1: Tail Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear tail lamp. Refer to Tail Lamp Replacement .
1	Stop, Tail and Turn Signal Bulb Socket Harness
2	Stop, Tail and Turn Signal Bulb Tip: Pull the bulb straight from the socket in order to remove.
3	Stop, Tail and Turn Signal Bulb Socket Harness
4	Stop, Tail and Turn Signal Bulb Tip: Pull the bulb straight from the socket in order to remove.
5	Rear Side Marker Lamp Bulb Harness
6	Rear Side Marker Lamp Bulb Tip: Pull the bulb straight from the socket in order to remove.
