Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the bushing with liquid hand soap or equivalent.
  2. Assemble the following bushing installation tools as indicated :
    1. The nut (1)
    2. The J 21474-01  washer (2). See Special Tools .
    3. The J 21474-01  bearing (3). See Special Tools .
    4. The J 21474-5  (4). See Special Tools .
    5. The J 21474-01  puller bolt (5). See Special Tools .

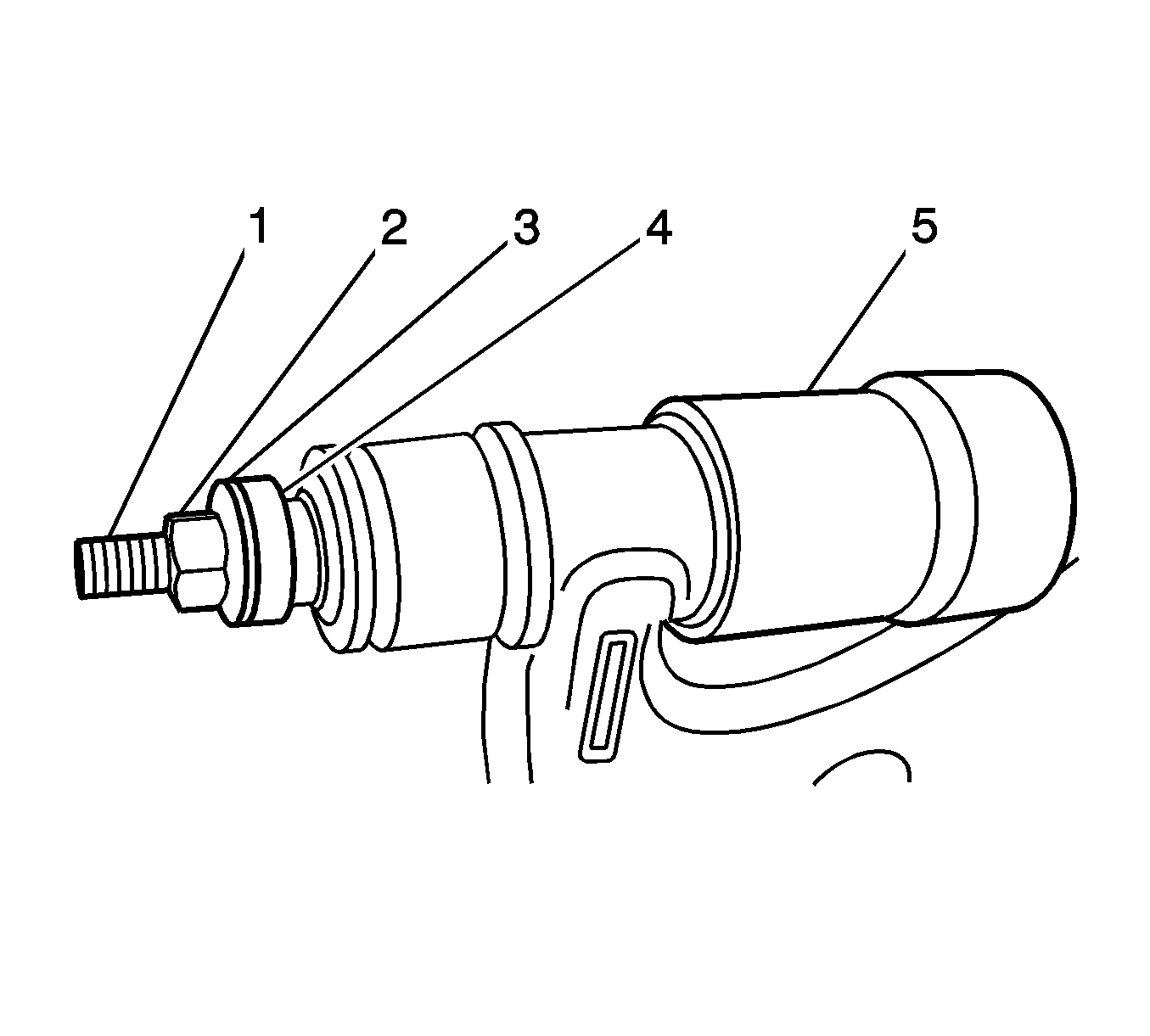

    Fig 1: Assembling Bushing Installation Tools
    GM1171035Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Use a 1/2 x 20 in standard thread nut with the puller bolt.
  3. Tighten the puller bolt (5) until the bushing is installed into the control arm.
  4. Disassemble the J 21474-01  and J 21474-5  . See Special Tools .
  5. Remove the control arm from the vice.
  6. Install the lower control arm. Refer to Lower Control Arm Replacement .
