Child Restraint Tether Anchor Replacement
Child Restraint Tether Anchor Replacement

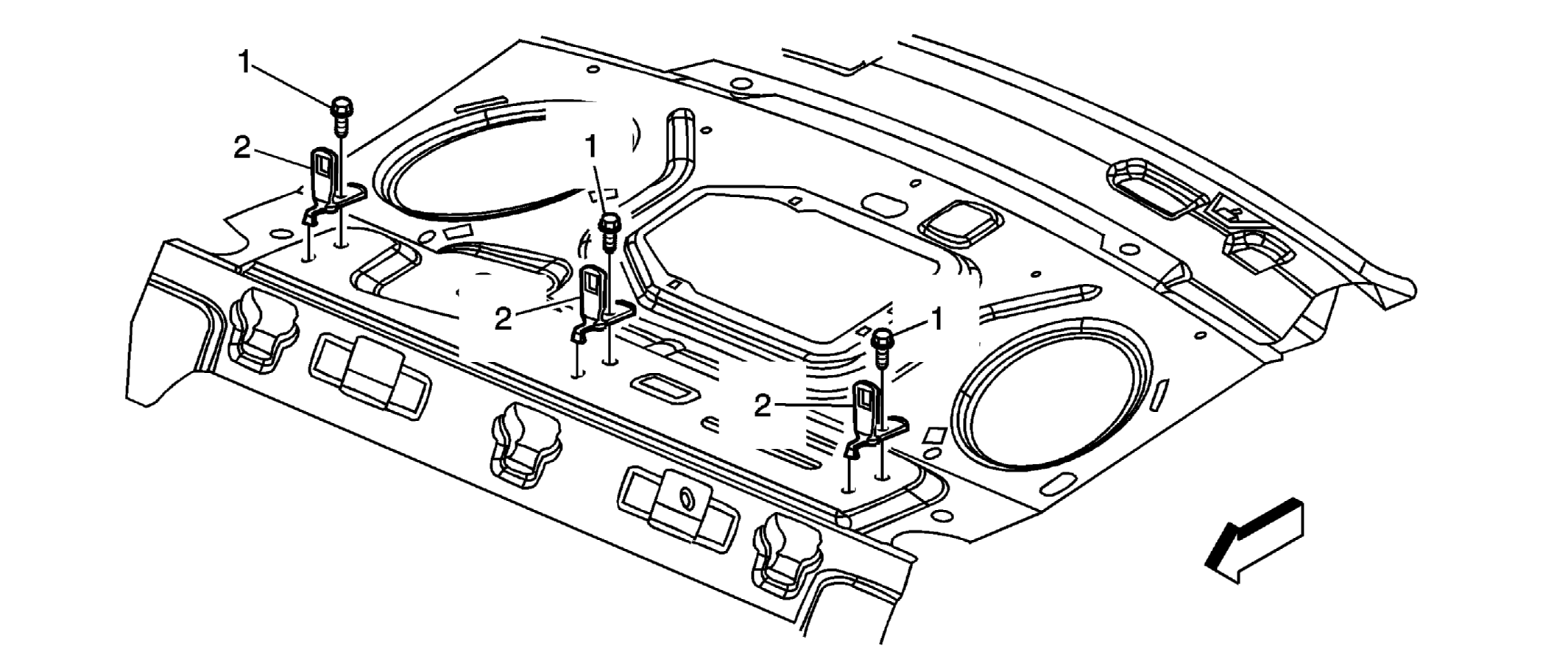

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the trim panel, rear window shelf. Refer to Trim Panel Replacement - Rear Window Shelf
. |
|
| 1 | Bolt, Child Seat Restraint System Bracket Tighten: 24 N.m (18 lb ft) |
| 2 | Bracket, Child Seat Restraint System |
