Body Control System Schematics

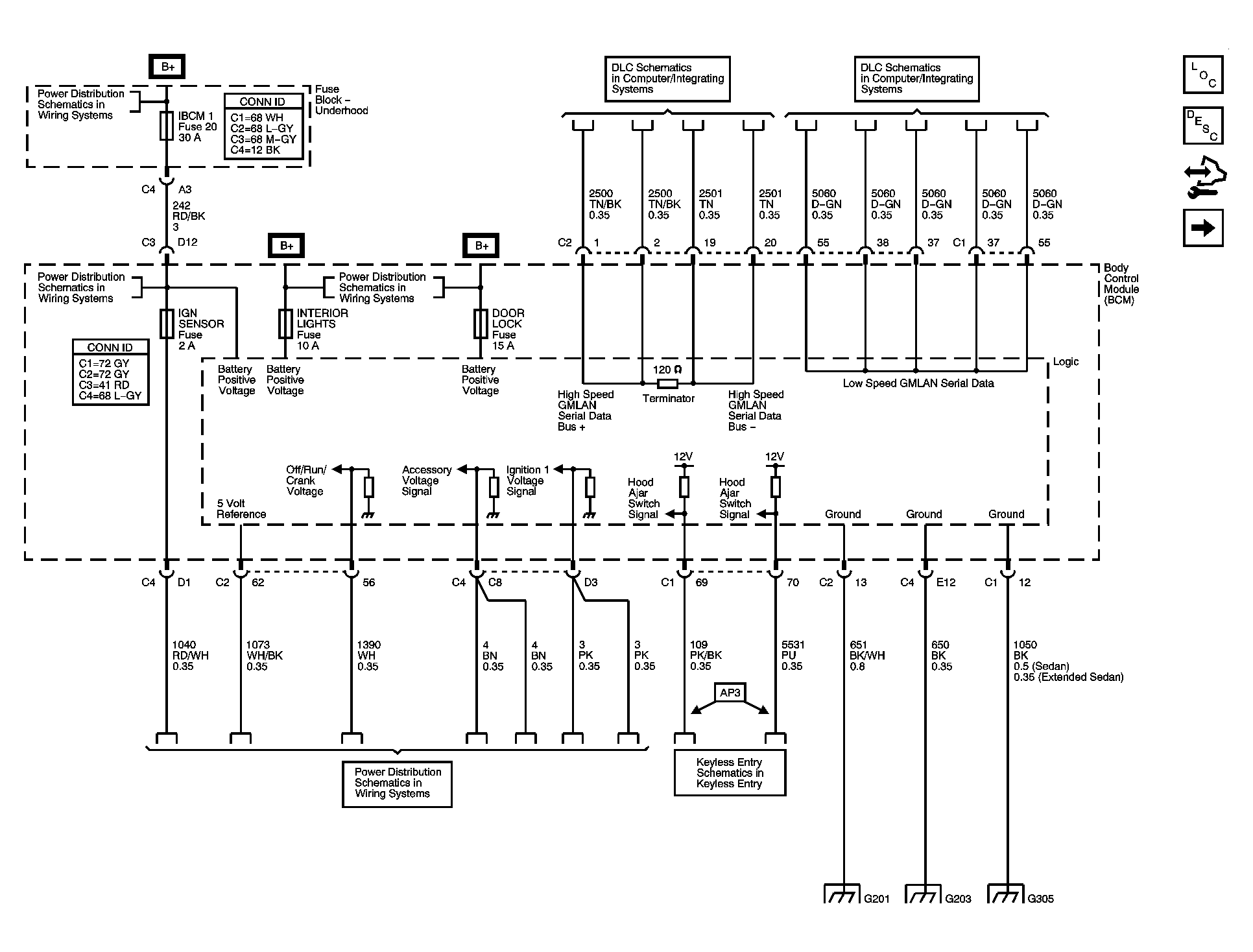

Fig 1: Power, Ground, Data Link And Engine Controls References

Courtesy of GENERAL MOTORS CORP.

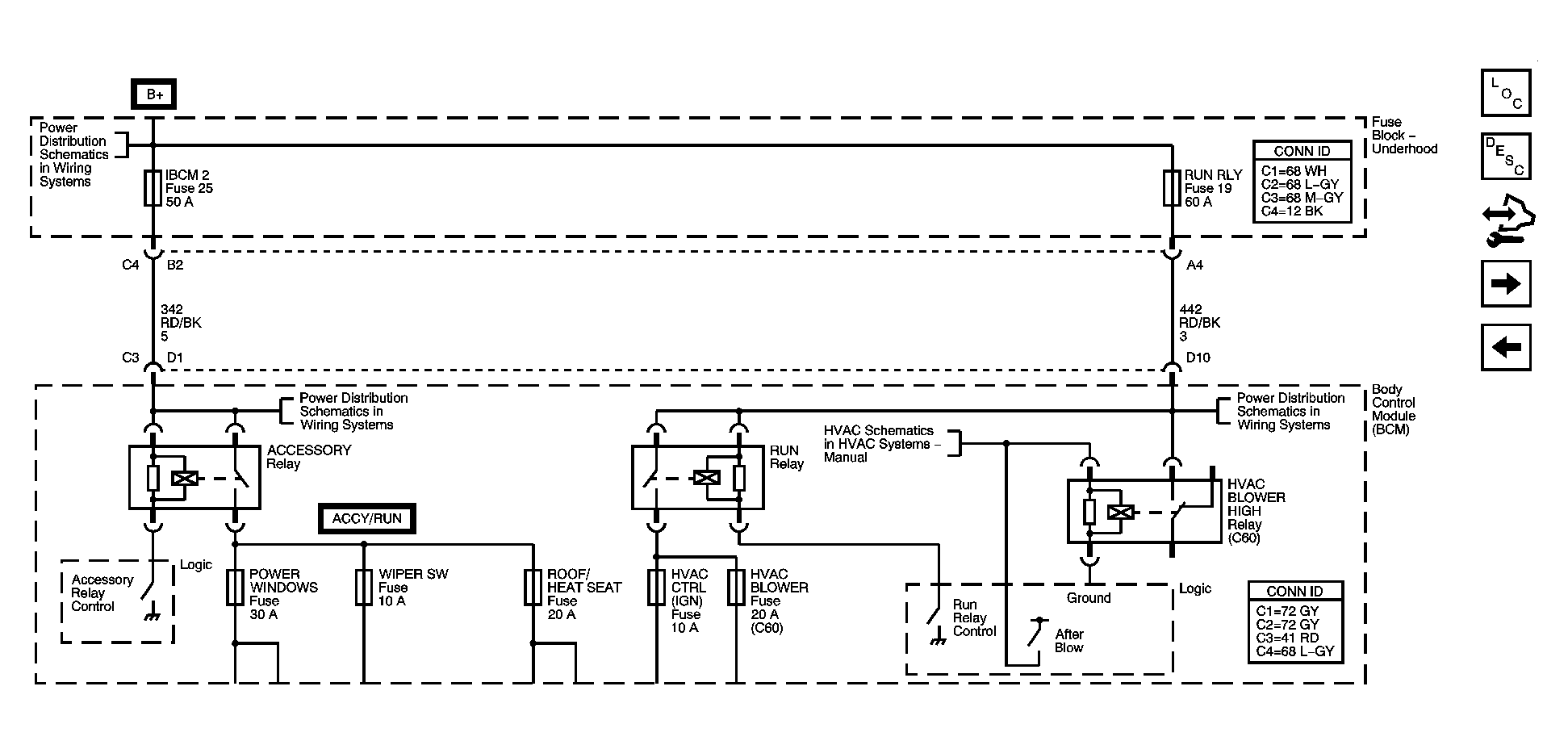

Fig 2: Accessory, HVAC Blower High And Run Relays

Courtesy of GENERAL MOTORS CORP.

Fig 3: ABS, A/T Shift Lock Controls, Brake Warning, Cruise Control, Door Lock/Indicator, Engine Controls And Engine Cooling References

Courtesy of GENERAL MOTORS CORP.

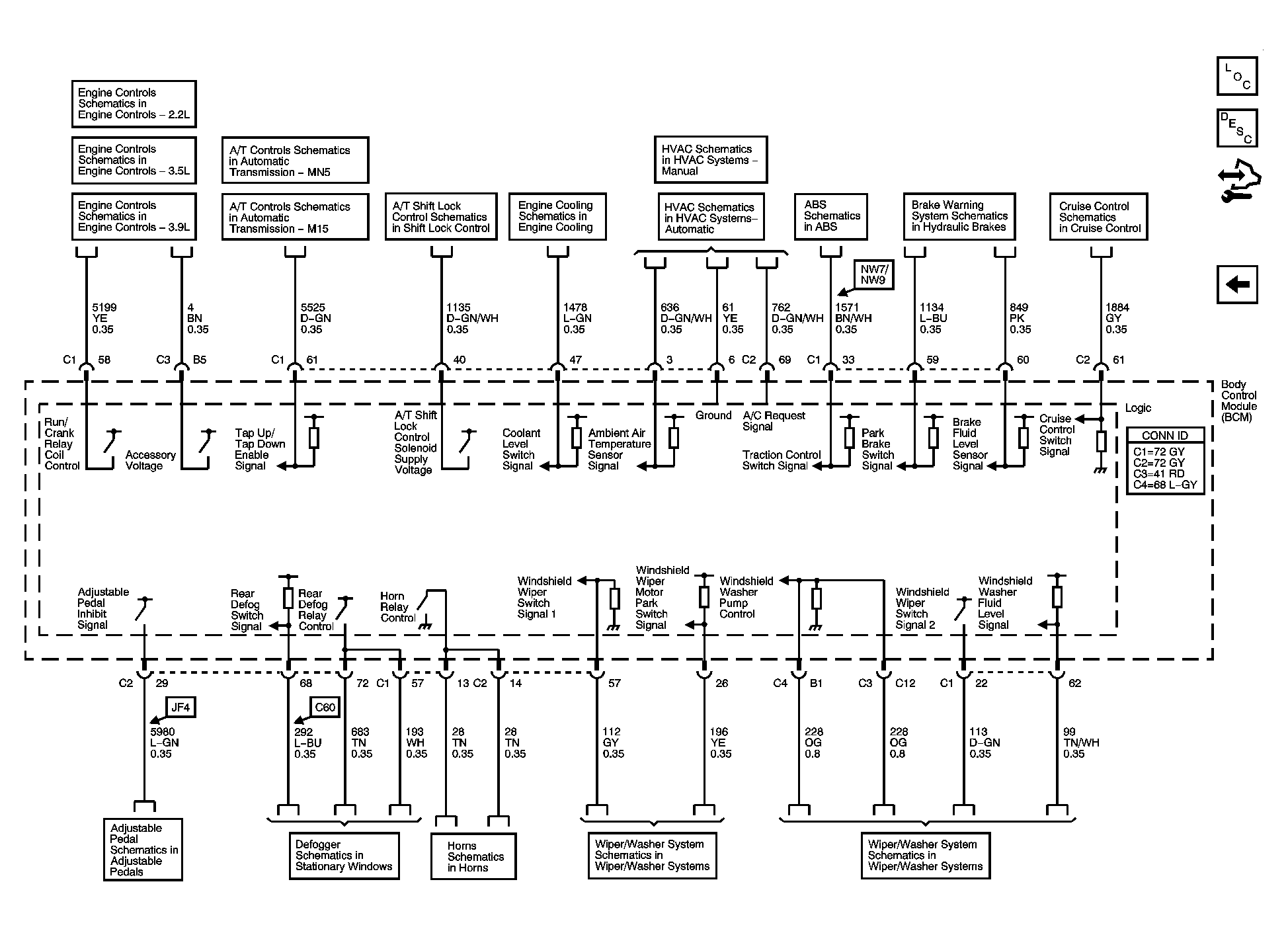

Fig 4: Adjustable Pedals, Body Rear End, Defogger, Headlights/DRL, Horns And Wiper/Washer References

Courtesy of GENERAL MOTORS CORP.

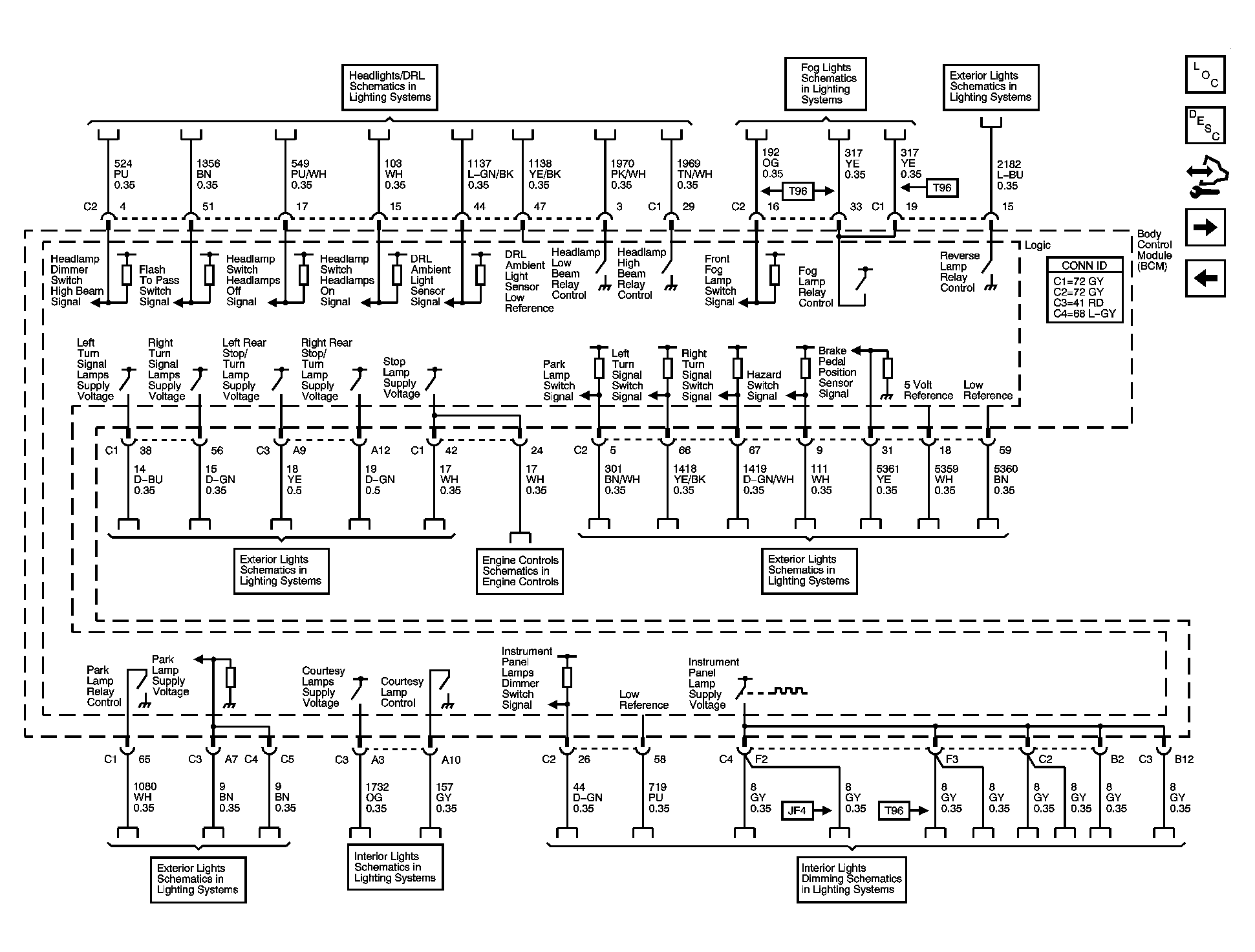

Fig 5: Lighting System References Continued

Courtesy of GENERAL MOTORS CORP.
