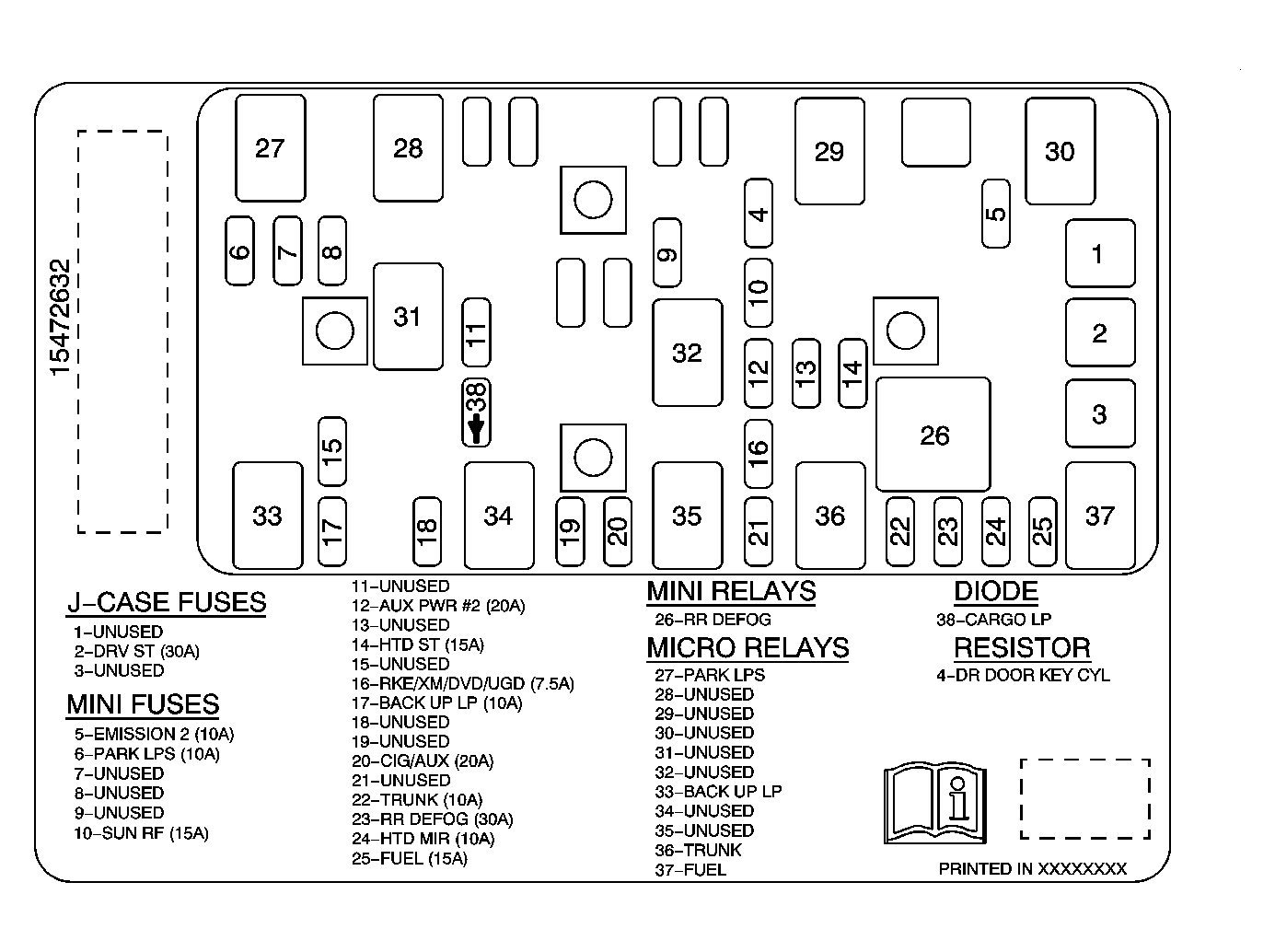

Fuse Block - Rear Label
FUSE BLOCK - REAR USAGE
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | DRV SEAT Fuse | 30A | Seat Adjuster Switch - Driver |
| 3-4 | - | - | Not Used |
| 5 | EMISSION 2 | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid Valve |
| 6 | PARK LPS | 10A | PARK LPS Relay 27 |
| 7-9 | - | - | Not Used |
| 10 | S/ROOF Fuse | 15A | Sunroof Control Module (CF5) |
| 11 | - | - | Not Used |
| 12 | AUX PWR #2 Fuse | 20A | Auxiliary Power Outlet - Rear (Extended Sedan) |
| 13 | - | - | Not Used |
| 14 | HTD SEAT Fuse | 15A | Heated Seat Control Module - Driver (KA1) and Heated Seat Control Module - Passenger (KA1) |
| 15 | - | - | Not Used |
| 16 | RKE/XM/DVD/UGD Fuse | 7.5A | Digital Radio Receiver (U2K), DVD Player (U32), Garage Door Opener Transmitter (UG1), and Remote Control Door Lock Receiver (RCDLR) |
| 17 | BCK/UP LAMPS Fuse | 10A | BU/LP Relay 33 |
| 18-19 | - | - | Not Used |
| 20 | CIG/AUX Fuse | 20A | Auxiliary Power Outlet - Console (NW7, NW9), Auxiliary Power Outlet - Front (w/o NW7, NW9), and Cigar Lighter |
| 21 | - | - | Not Used |
| 22 | TRUNK Fuse | 10A | TRUNK Relay 36 |
| 23 | RR DEFOG Fuse | 30A | Rear Window Defogger Grid |
| 24 | HTD MIR Fuse | 10A | Outside Rearview Mirror - Driver (DL8), Outside Rearview Mirror - Passenger (DL8) |
| 25 | FUEL PUMP Fuse | 15A | FUEL PMP Relay 37 |
| 26 | R/WDO DEFOG Relay | - | RR DEFOG Fuse 23 and HTD MIR Fuse 24 |
| 27 | PARK LPS Relay | - | Backup Lamp - Left, Backup Lamp - Right, Body Control Module (BCM), Garage Door Opener Transmitter (UG1), HVAC Control Module (C60), License Lamp (Extended Sedan), License Lamp - Left (Sedan), License Lamp - Right (Sedan) Park/Turn Signal Lamp - LF, Park/Turn Signal Lamp - RF, Tail Lamp - Left, Tail Lamp - Right, Tail/Stop and Turn Signal Lamp - Left, Tail/Stop and Turn Signal Lamp - Right |
| 28-32 | - | - | Not Used |
| 33 | BU/LP Relay | - | Backup Lamp - Left, Backup Lamp - Right, and Inside Rearview Mirror (DD8) |
| 34-35 | - | - | Not Used |
| 36 | TRUNK Relay | - | Rear Compartment Lid Latch |
| 37 | FUEL/PMP Relay | - | Fuel Pump |
| 38 | CARGO LP Diode | - | Cargo Lamp Switch (Extended Sedan), Rear Compartment Lid Latch (Sedan) |
