Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

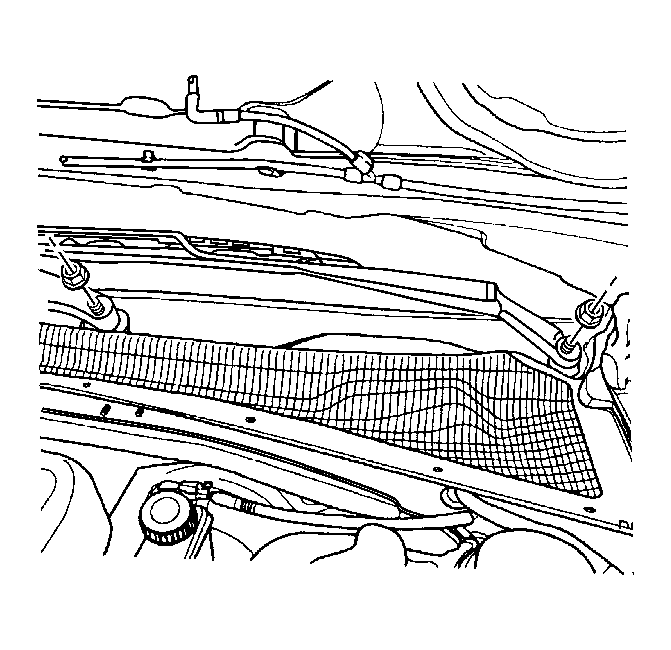

Fig 1: View Of Wiper Arms And Nuts

Courtesy of GENERAL MOTORS CORP.

Install the wiper arm.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Secure the wiper arm with the nut.
Tighten: Tighten the wiper arm nut to 22 N.m (16 lb ft) .
Close the hood.
