Inline Harness Connector End Views

C101 - Floor Harness to Underhood Fuse Block

GM1467057Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 612102
  • 21-Way F Hybrid 1809 Housing (WH)
Pin Wire Color Circuit No. Function
1 OG/GN (Except North America) 267 Heated Mirror Coil Supply Voltage
OG
2 - - Not Used
3 GY 120 Fuel Pump Supply Voltage
4 WH (Except North America) 193 Rear Defog Relay Control
WH/BK
5 PU/WH 709 Left Park Lamp Supply Voltage
PU (Except North America)
6 PU/WH 709 Left Park Lamp Supply Voltage (Notchback LHD)
PU 709 Left Park Lamp Supply Voltage (Notchback RHD) (Hatchback LHD)
7 BN 141 Ignition 3 Voltage
8 L-GN 876 Rough Road Signal w/ ABS
9 OG 140 Battery Positive Voltage
10 BN/BK 309 Right Park Lamp Supply Voltage
11 BN/WH 309 Right Park Lamp Supply Voltage
BN/BK (Except North America)
12 - - Not Used
13 PK/BK 1846 Ignition 1 Voltage
PK/BK 1846 Ignition 1 Voltage
14 WH/BK 1798 Headlamp Relay Control
GY/BK (North America)
15 PU/WH (Except North America) 709 Left Park Lamp Supply Voltage
PU/BK 709 Left Park Lamp Supply Voltage (Hatchback LHD)
PU 709 Left Park Lamp Supply Voltage (Notchback RHD)
16 - - Not Used
17 BK 28 Horn Relay Control
18 WH 1080 Park Lamp Relay Control
19 YE/D-GN 317 Fog Lamp Relay Coil Supply Voltage
20 PU 12 Headlamp Low Beam Supply Voltage (Except North America)
L-BU 1346 Headlamp Supply Voltage/ Headlamp Control
21 - - Not Used
C102 - Floor Harness to Underhood Fuse Block

GM1501855Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 652719
  • 11-Way F (WH)
Pin Wire Color Circuit No. Function
1 PU 12 Headlamp Low Beam Supply Voltage
2 L-GN 11 Headlamp High Beam Supply Voltage
3 OG/BK 1340 Battery Positive Voltage
4 PU 293 Rear Defog Element Supply Voltage
5 RD 581 Power Window Supply Voltage - Driver Door
6 OG/BK 540 Battery Positive Voltage
7 PK 539 Ignition 1 Voltage
8 OG/BK 640 Battery Positive Voltage
OG (Except North America)
9 OG/BK 640 Battery Positive Voltage
OG (Except North America)
10 OG/BK (Except North America) 640 Battery Positive Voltage
OG
11 OG 580 Power Window Supply Voltage
C103 - Engine Harness to Underhood Fuse Block

GM1467121Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651056
  • 10-Way F 090-II Series (WH)
Pin Wire Color Circuit No. Function
1 PK/BK 1846 Ignition 1 Voltage
- - Not Used (HV 240)
2 PK/BK 1846 Ignition 1 Voltage
- - Not Used (HV 240)
3-4 - - Not Used
5 PK/BK 1846 Ignition 1 Voltage
- - Not Used (HV 240)
6 BK 1846 Ignition 1 Voltage
PK/BK 1846 Ignition 1 Voltage (Sirius D4)
7 PK/BK 1846 Ignition 1 Voltage
8 - - Not Used
PK 139 Ignition 1 Voltage (Except North America) (Sirius D4)
9 PK 139 Ignition 1 Voltage
PK 139 Ignition 1 Voltage
10 PK 139 Ignition 1 Voltage
PK 139 Ignition 1 Voltage
C104 - Front Harness to Underhood Fuse Block

GM1501834Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 652503
  • 24-Way F Hybrid Connector (WH)
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage (Notchback) (Except North America)
2 BN/WH 309 Right Park Lamp Supply Voltage (North America)
3 PU 34 Fog Lamp Supply Voltage (w/Front Fog Lamp)
4 BN 990 Power Steering Pressure Switch Signal (Except North America)
5 D-GN 59 A/C Compressor Clutch Coil Supply Voltage (w/Air Conditioning)
6-7 - - Not Used
8 PU 34 Fog Lamp Supply Voltage (w/Front Fog Lamps)
9 OG 1240 Battery Positive Voltage
OG 1240 Battery Positive Voltage
10 - - Not Used
11 YE 712 Left Headlamp Low Beam Supply Voltage
12 BK 50 Ground
13-14 - - Not Used
15 L-BU 409 Cooling Fan Motor Supply Voltage
16 PU 312 Right Headlamp Low Beam Supply Voltage
PU/WH (Except North America)
17 L-GN/BK 311 Right Headlamp High Beam Supply Voltage
18 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
19 PU 709 Left Park Lamp Supply Voltage (North America)
20 PU 709 Left Park Lamp Supply Voltage (Notchback) (Except North America)
21 PU 532 Cooling Fan Motor Supply Voltage
22 PU 532 Cooling Fan Motor Supply Voltage
23 D-GN 29 Horn Control
24 - - Not Used
C105 - Floor Harness to Underhood Fuse Block

GM1468378Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651926
  • 4-Way F 312-II Series (WH)
Pin Wire Color Circuit No. Function
1 RD 742 Battery Positive Voltage
2 RD/D-BU 142 Battery Positive Voltage
3 RD/D-GN 1642 Battery Positive Voltage
4 RD/WH 642 Battery Positive Voltage
C106 - Engine Harness to Underhood Fuse Block

GM1467125Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651080
  • 20-Way F 090-II Series (WH)
Pin Wire Color Circuit No. Function
1 PK/D-BU 539 Ignition 1 Voltage
OG 440 Battery Voltage (Sirius D4)
2 PK 739 Ignition 1 Voltage
3 GY 120 Fuel Pump Supply Voltage
GY 120 Fuel Pump Supply Voltage
4 D-GN/WH 335 Low Speed Cooling Fan Relay Control
D-GN (Except North America) Low Speed Cooling Fan Relay Control
5 D-BU 473 High Speed Cooling Fan Relay Control
D-BU 473 High Speed Cooling Fan Relay Control
6 - - Not Used
7 D-GN 67 A/C Compressor Clutch Coil Supply Voltage
PU/WH A/C Compressor Clutch Coil Supply Voltage (Sirius D4)
8 OG 440 Battery Positive Voltage
9 OG 440 Battery Positive Voltage
- - Not Used (Sirius D4)
10 L-GN 465 Fuel Pump Relay Control
D-GN/WH Fuel Pump Relay Control (Sirius D4)
11 - - Not Used
12 PK/D-BU 539 Ignition 1 Voltage
PK/D-BU 539 Ignition 1 Voltage
PK 539 Ignition 1 Voltage (Sirius D4)
13 PK/D-BU 539 Ignition 1 Voltage
14 PK/D-BU 539 Ignition 1 Voltage (Except North America)
15 D-BU 876 Serial Data (w/ABS)
16 - - Not Used
17 BK 250 Ground
D-BU/WH 471 Main Relay Control (Sirius D4)
18 - - Not Used
BN 990 Power Steering Pressure Switch Signal (Sirius D4)
19 PK 139 Ignition 1 Voltage (HV 240)
BK 250 Ground (MR 140)
PK/D-BU 539 Ignition 1 Voltage (Sirius D4)
20 - - Not Used
C107 - ABS Harness to Underhood Fuse Block

GM1468379Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 652500
  • 2-Way F 312-II Series (WH)
Pin Wire Color Circuit No. Function
1 RD 42 Battery Positive Voltage
2 RD 42 Battery Positive Voltage
C108 - Floor Harness to Engine Harness (1.4L, 1.6L)

GM1501856Courtesy of GENERAL MOTORS CORP.
GM1501857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 96482026
  • 24-Way F (BK)
 Connector Part Information
  • 96482027
  • 24-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1-A3 - - Not Used A1-A3 - - Not Used
A4 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gage Signal A4 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gage Signal
A5 BN/WH 419 Malfunction Indicator Lamp (MIL) Control A5 BN/WH 419 Malfunction Indicator Lamp (MIL) Control
B1 PU/BK 632 Low Reference B1 GY 605 Low Reference
B2 D-GN/WH 817 Vehicle Speed Signal B2 D-GN/WH 817 Vehicle Speed Signal (w/ Manual Transmission)
B3 D-GN/D-BU 762 A/C Request Signal B3 D-GN/WH 762 A/C Request Signal (w/ A/C)
B4 WH/BK 30 Fuel Level Sensor Signal B4 WH 30 Fuel Level Sensor Signal
WH
C1 D-GN 890 Fuel Tank Pressure Sensor Signal (North America) C1 YE/D-GN 890 Fuel Tank Pressure Sensor Signal (North America)
C2 BN 2000 Serial Data C2 BN 2000 Serial Data
C3 BN 25 Charge Indicator Control C3 BU 25 Charge Indicator Control
C4 WH 121 Engine Speed Signal C4 WH 121 Engine Speed Signal
E1 PU 1807 CAN Serial Data High E1 PU 1807 CAN Serial Data High (w/Automatic Transmission)
E2 YE/RD 710 CAN Serial Data Low E2 YE 710 CAN Serial Data Low (w/Automatic Transmission)
E3 BN/BK 1671 Heated Oxygen Sensor (HO2S) 2 Heater Control (North America) E3 BN/BK 1671 Heated Oxygen Sensor (HO2S) 2 Heater Control
E4 L-BU/PU 1986 EVAP Canister Vent Solenoid Control (North America) E4 L-BU/BK 1986 EVAP Canister Vent Solenoid Control (North America)
E5 D-BU 1936 Fuel Level Sensor Signal E5 BU 1936 Fuel Level Sensor Signal
F1 BN/BK 231 Engine Oil Pressure Switch Signal F1 BN/BK 231 Engine Oil Pressure Switch Signal
F2 YE 5 Crank Voltage F2 YE 5 Crank Voltage
F3 PK 839 Ignition 1 Voltage F3 PK 839 Ignition 1 Voltage (w/Manual Transmission)
F4 L-GN 24 Backup Lamp Supply Signal F4 L-GN 24 Backup Lamp Supply Signal (w/Manual Transmission)
F5 GY 473 High Speed Cooling Fan Relay Control F5 D-BU 473 High Speed Cooling Fan Relay Control
F6 - - Not Used F6 - - Not Used
C108 - Floor Harness to Engine Harness (1.8L, 2.0L)

GM1501856Courtesy of GENERAL MOTORS CORP.
GM1501857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 96482026
  • 24-Way F (BK)
 Connector Part Information
  • 96482027
  • 24-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 L-GN 413 Heated Oxygen Sensor (HO2S) 2 Low Reference (North America) A1 L-GN 413 Heated Oxygen Sensor (HO2S) 2 Low Reference (North America)
A2 PU 1670 Heated Oxygen Sensor (HO2S) 2 Signal (North America) A2 PU 1670 Heated Oxygen Sensor (HO2S) 2 Signal (North America)
A3 GY 605 5-Volt Reference (North America) A3 GY 605 5-Volt Reference (North America)
A4 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gage Signal A4 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gage Signal
A5 BN/WH 419 Malfunction Indicator Lamp (MIL) Control A5 BN/WH 419 Malfunction Indicator Lamp (MIL) Control
B1 PU/BK 632 Low Reference B1 PU/WH 632 Low Reference
B2 D-GN/WH 817 Vehicle Speed Signal (w/ Manual Transmission) B2 D-GN/WH 817 Vehicle Speed Signal (w/ Manual Transmission)
B3 D-GN/D-BU 762 A/C Request Signal (Except North America) B3 D-GN/WH 762 A/C Request Signal (Except North America)
D-GN 762 A/C Request Signal D-GN 762 A/C Request Signal
B4 WH/BK 30 Fuel Level Sensor Signal B4 WH 30 Fuel Level Sensor Signal
WH (Except North America)
C1 D-GN 890 Fuel Tank Pressure Sensor Signal (North America) C1 YE/D-GN 890 Fuel Tank Pressure Sensor Signal (North America)
C2 BN 2000 Serial Data C2 PU 2000 Serial Data
C3 BN 25 Charge Indicator Control C3 BN 25 Charge Indicator Control
C4 WH 121 Engine Speed Signal C4 GY 121 Engine Speed Signal
E1 PU 1807 CAN Serial Data High E1 PU 1807 CAN Serial Data High (w/Automatic Transmission)
E2 YE/BN 710 CAN Serial Data Low E2 YE 710 CAN Serial Data Low (w/Automatic Transmission)
E3 BN/BK 1671 Heated Oxygen Sensor (HO2S) 2 Heater Control (North America) E3 BN/BK 1671 Heated Oxygen Sensor (HO2S) 2 Heater Control
E4 L-BU/PU 1986 EVAP Canister Vent Solenoid Control (North America) E4 L-BU/BK 1986 EVAP Canister Vent Solenoid Control (North America)
E5 D-BU 1936 Fuel Level Sensor Signal E5 GY 1936 Fuel Level Sensor Signal
F1 BN/BK 231 Engine Oil Pressure Switch Signal F1 BN/BK 231 Engine Oil Pressure Switch Signal
F2 YE 5 Crank Voltage F2 YE 5 Crank Voltage
F3 PK 839 Ignition 1 Voltage F3 PK 839 Ignition 1 Voltage (w/Manual Transmission)
F4 L-GN 24 Backup Lamp Supply Signal F4 L-GN 24 Backup Lamp Supply Signal (w/Manual Transmission)
F5 GY 473 High Speed Cooling Fan Relay Control F5 D-BU 473 High Speed Cooling Fan Relay Control
F6 - - Not Used F6 - - Not Used
C109 - Engine Harness to Front Harness

GM1467114Courtesy of GENERAL MOTORS CORP.
GM1467080Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651038
  • 4-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641041
  • 4-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN 413 Heated Oxygen Sensor (HO2S) 2 Low Reference 1 BN 413 Heated Oxygen Sensor (HO2S) 2 Low Reference
L-GN (Sirius D4) L-GN (Sirius D4)
2 PU 1670 Heated Oxygen Sensor (HO2S) 2 Signal 2 PU 1670 Heated Oxygen Sensor (HO2S) 2 Signal
3 BN/WH 1671 Heated Oxygen Sensor (HO2S) 2 Heater Control 3 BN/BK 1671 Heated Oxygen Sensor (HO2S) 2 Heater Control
BN/BK (Sirius D4)
4 PK/BK 1846 Ignition 1 Voltage 4 PK/BK 1846 Ignition 1 Voltage
C110 - ABS Harness to Floor Harness

GM1480200Courtesy of GENERAL MOTORS CORP.
GM1480201Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 966196-5
  • 12-Way F (BU)
 Connector Part Information
  • AMP 936207-5
  • 12-Way M 090-II 12P Cap Ass'y (BU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 L-BU 20 Stop Lamp Switch Signal 1 L-BU 20 Stop Lamp Switch Signal
2 D-BU 774 Serial Data 2 D-BU/WH 774 Serial Data
3 BN 882 Right Rear Wheel Speed Sensor Signal 3 BN 882 Right Rear Wheel Speed Sensor Signal
4 BK 884 Left Rear Wheel Speed Sensor Signal 4 BK 884 Left Rear Wheel Speed Sensor Signal
5 RD 885 Left Rear Wheel Speed Sensor Return 5 D-BU 885 Left Rear Wheel Speed Sensor Return
6 BN 739 Ignition 1 Voltage 6 BN 739 Ignition 1 Voltage
7 - - Not Used 7 - - Not Used
8 L-GN/BK 867 ABS Indicator Failure Control 8 L-GN 867 ABS Indicator Failure Control
9 L-GN 876 Rough Road Signal (Except North America) 9 WH 876 Rough Road Signal (Except North America)
WH/YE 866 Rough Road Signal L-GN 866 Rough Road Signal
10 WH 883 Right Rear Wheel Speed Sensor Return 10 WH 883 Right Rear Wheel Speed Sensor Return
11 D-GN 905 Serial Data 11 D-GN 905 Serial Data
12 PU/WH 33 Brake Warning Indicator Control 12 PU/WH 33 Brake Warning Indicator Control
C111 - ABS Harness to Front Harness

GM1467028Courtesy of GENERAL MOTORS CORP.
GM1468405Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
 Connector Part Information
  • KET MG 640322-5
  • 2-Way M SWP Connector (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 WH 833 Front Right Wheel Speed Sensor Return 1 YE 833 Front Right Wheel Speed Sensor Return
2 GY 872 Front Right Wheel Speed Sensor Signal 2 PU 872 Front Right Wheel Speed Sensor Signal
C112 - Front Harness to Horn Jumper Harness

GM1466982Courtesy of GENERAL MOTORS CORP.
GM1466983Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 641156
  • 2-Way F Econoseal J Mark II + Connector Plug Housing (BK)
 Connector Part Information
  • AMP 6181-0080
  • 2-Way M Econoseal J-Mark II + Connector Cap Housing (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 50 Ground 1 BK 150 Ground
2 D-GN 29 Horn Control 2 BK/WH 29 Horn Control
C113 - Floor Harness to Front Harness

GM1466992Courtesy of GENERAL MOTORS CORP.
GM1468535Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368047-1
  • 16-Way F Econoseal J-Mark II + 16P Plug Assembly (BK)
 Connector Part Information
  • AMP 368050-1
  • 16-Way M Econoseal J-MARK II + Connector 16Pos. CAP Housing (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN 141 Ignition 1 Voltage (Except North America) 1 PK 741 Ignition 1 Voltage (Except North America)
BN/BK 2105 Inflatable Restraint Front End Sensor - Left Voltage (North America) BN/BK 2105 Inflatable Restraint Front End Discriminating Sensor - Left Voltage (North America)
2 YE 261 Arm Alarm Signal 2 YE 261 Arm Alarm Signal
3 PK/D-BU 109 Hood Ajar Switch Signal 3 PK/BK 109 Hood Ajar Switch Signal
4 YE/D-BU 61 Low Reference (w/Auto A/C) 4 YE 61 Low Reference (w/Auto A/C)
5 BN 247 Medium Blower Motor Control (Except North America) 5 BN 247 Medium Blower Motor Control (Except North America)
BN/WH
L-GN/RD 2106 Front End Sensor - Left Signal (North America) L-GN/RD 2106 Inflatable Restraint Front End Discriminating Sensor - Left (North America)
6 D-BU 15 Right Turn Signal Lamp Supply Voltage 6 L-BU 15 Right Turn Signal Lamp Supply Voltage
7 L-BU (Except North America) 14 Left Turn Signal Lamp Supply Voltage 7 L-BU 14 Left Turn Signal Lamp Supply Voltage
L-BU/BK
8 L-GN/BK 735 Ambient Air Temperature Sensor (w/Auto A/C) 8 L-GN/BK 735 Ambient Air Temperature Sensor (w/Auto A/C)
9 PU 1703 Variable Effort Steering Actuator Supply Voltage (w/Variable Effort Steering) 9 L-GN 1703 Variable Effort Steering Actuator Supply Voltage (w/Variable Effort Steering)
10 GY 473 High Speed Cooling Fan Relay Control 10 GY 473 High Speed Cooling Fan Relay Control
11 D-GN 189 Headlamp Leveling Motor Supply Voltage (w/Headlamp Leveling) 11 D-GN 189 Headlamp Leveling Motor Supply Voltage (w/Headlamp Leveling)
12 RD 228 Windshield Washer Pump Control (Notchback) 12 RD 228 Windshield Washer Pump Control (Notchback)
13 L-BU 1738 Variable Effort Steering Actuator Control (w/Variable Effort Steering) 13 BN/BK 1738 Variable Effort Steering Actuator Control (w/Variable Effort Steering)
14 D-GN/WH 2104 Inflatable Restraint Front End Sensor - Right Signal (North America) 14 D-GN/WH 2104 Inflatable Restraint Front End Sensor - Right Signal (North America)
15 PU 2103 Inflatable Restraint Front End Sensor - Right Voltage (North America) 15 PU 2103 Inflatable Restraint Front End Discriminating Sensor - Right (North America)
16 PK/BK 1846 Ignition 1 Voltage 16 PK/BK 1846 Ignition 1 Voltage
C115 - Front Harness to Left Park/Turn Signal Lamp Jumper (North America)

GM1467029Courtesy of GENERAL MOTORS CORP.
GM1467076Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610327
  • 3-Way F SWP Series (BK)
 Connector Part Information
  • KET MG 640329
  • 3-Way M SWP Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage 1 PU 709 Left Park Lamp Supply Voltage
2 BK 50 Ground 2 BK 50 Ground
3 L-BU 14 Left Turn Signal Lamps Supply Voltage 3 L-BU 14 Left Turn Signal Lamps Supply Voltage
C116 - Front Harness to Right Park/Turn Signal Lamp Jumper (North America)

GM1467029Courtesy of GENERAL MOTORS CORP.
GM1467076Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610327
  • 3-Way F SWP Series (BK)
 Connector Part Information
  • KET MG 640329
  • 3-Way M SWP Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage 1 PU 309 Right Park Lamp Supply Voltage
2 BK 150 Ground 2 BK 150 Ground
3 L-BU 15 Right Turn Signal Lamps Supply Voltage 3 PU 15 Right Turn Signal Lamps Supply Voltage
C120 - Front Harness to Right Headlamp Jumper Harness (w/ Leveling) (Except North America)

GM1468383Courtesy of GENERAL MOTORS CORP.
GM1468518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-06027
  • 6-Way F NMWP 06F-B Assembly (BK)
 Connector Part Information
  • KUM PB 621-06020
  • 6-Way M NMWP06M-B (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 150 Ground 1 BK 50 Ground
2 BN/WH 309 Right Park Lamp Supply Voltage 2 D-BU 709 Right Park Lamp Supply Voltage
3 D-GN 189 Headlamp Leveling Motor Supply Voltage 3 D-GN 189 Headlamp Leveling Motor Supply Voltage
4 L-GN/BK 311 Right Headlamp High Beam Supply Voltage 4 RD 711 Right Headlamp High Beam Supply Voltage
5 PU/WH 312 Right Headlamp Low Beam Supply Voltage 5 L-GN 712 Right Headlamp Low Beam Supply Voltage
6 BK 150 Ground 6 BK/WH 50 Ground
C120 - Front Harness to Right Headlamp Jumper Harness (w/o Leveling) (North America)

GM1468381Courtesy of GENERAL MOTORS CORP.
GM1497839Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-04127
  • 4-Way F KNMWP 04F-GY Assembly (BK)
 Connector Part Information
  • KUM PB 621-04120
  • 4-Way M Connector NMWP04M-B (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 312 Right Headlamp Low Beam Supply Voltage 1 L-GN 312 Right Headlamp Low Beam Supply Voltage
2 L-GN/BK 311 Right Headlamp High Beam Supply Voltage 2 RD 311 Right Headlamp High Beam Supply Voltage
3 BK 150 Ground 3 BK/WH 150 Ground
4 - - Not Used 4 - - Not Used
C121 - Front Harness to Left Headlamp Jumper Harness (w/Leveling)

GM1468383Courtesy of GENERAL MOTORS CORP.
GM1468518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-06027
  • 6-Way F NMWP 06F-B Assembly (BK)
 Connector Part Information
  • KUM PB 621-06020
  • 6-Way M NMWP06M-B (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 50 Ground 1 BK 50 Ground
2 PU 709 Left Park Lamp Supply Voltage 2 D-BU 709 Left Park Lamp Supply Voltage
3 D-GN 189 Headlamp Leveling Motor Supply Voltage 3 D-GN 189 Headlamp Leveling Motor Supply Voltage
4 D-GN/WH 711 Left Headlamp High Beam Supply Voltage 4 RD 711 Left Headlamp High Beam Supply Voltage
5 YE 712 Left Headlamp Low Beam Supply Voltage 5 L-GN 712 Left Headlamp Low Beam Supply Voltage
6 BK 50 Ground 6 BK/WH 50 Ground
C121 - Front Harness to Left Headlamp Jumper Harness (w/o Leveling)

GM1468381Courtesy of GENERAL MOTORS CORP.
GM1497839Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-04127
  • 4-Way F KNMWP 04F-GY Assembly (BK)
 Connector Part Information
  • KUM PB 621-04120
  • 4-Way M Connector NMWP04M-B (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 YE 712 Left Headlamp Low Beam Supply Voltage 1 L-GN 712 Left Headlamp Low Beam Supply Voltage
2 D-GN/WH 711 Left Headlamp High Beam Supply Voltage 2 RD 711 Left Headlamp High Beam Supply Voltage
3 BK 50 Ground 3 BK/WH 50 Ground
4 - - Not Used 4 - - Not Used
C135 - Engine Harness to Manifold Absolute Pressure (MAP) Sensor Jumper

GM1500906Courtesy of GENERAL MOTORS CORP.
GM1466984Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174357
  • 3-Way F Connector (BK)
 Connector Part Information
  • AMP 174359
  • 3-Way M 070 Series Econoseal Mark-2 Cap 3P (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 OG/BK 469 Low Reference 1 OG/BK 469 Low Reference
2 D-BU/WH 432 Manifold Absolute Pressure (MAP) Sensor Signal 2 L-GN 432 Manifold Absolute Pressure (MAP) Sensor Signal
3 L-BU/BK 1688 5-Volt Reference 3 D-GN/BK 1688 5-Volt Reference
C191 - ABS Harness to Left Front Wheel Speed Sensor Jumper

GM1506478Courtesy of GENERAL MOTORS CORP.
GM1506100Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Bosch 2264-420424 (F)
  • 2-Way F Connector (BK)
 Connector Part Information
  • Bosch 2264-420424 (M)
  • 2-Way M Connector (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN 873 Left Front Wheel Speed Sensor Signal 1 WH 873 Left Front Wheel Speed Sensor Signal
2 L-BU 830 Left Front Wheel Speed Sensor Low Reference 2 BK 830 Left Front Wheel Speed Sensor Return
C192 - Front Harness to Right Front Wheel Speed Sensor Jumper

GM1506478Courtesy of GENERAL MOTORS CORP.
GM1506100Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Bosch 2264-420424 (F)
  • 2-Way F Connector (BK)
 Connector Part Information
  • Bosch 2264-420424 (M)
  • 2-Way M Connector (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 872 Right Front Wheel Speed Sensor Signal 1 WH 872 Right Front Wheel Speed Sensor Return
2 YE 833 Right Front Wheel Speed Sensor Low Reference 2 BK 833 Right Front Wheel Speed Sensor Signal
C201 - I/P Harness to I/P Fuse Block

GM1501860Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936195-1
  • 76-Way F Connector (BK)
Pin Wire Color Circuit No. Function
1 BN 441 Ignition 3 Voltage
2 BK 250 Ground
3 PK 539 Ignition 1 Voltage (Automatic Transmission)
PK 539 Ignition 1 Voltage (Automatic Transmission)
4 BK 250 Ground
5 PK 339 Ignition 1 Voltage
6 PK 239 Ignition 1 Voltage (w/Manual A/C)
7 PK 239 Ignition 1 Voltage (w/Manual A/C)
8 PK 239 Ignition 1 Voltage (w/Variable Effort Steering)
9 BK 250 Ground
10 - - Not Used
11 BN 141 Ignition 3 Voltage (Notchback Only w/Daytime Running Lamp (DRL)
12 OG 300 Ignition 3 Voltage
13 BN 41 Ignition 3 Voltage (w/Auto A/C)
14 YE 317 Fog Lamp Relay Coil Supply Voltage (w/Rear Fog Lamps) (Except North America)
15 YE 317 Fog Lamp Relay Coil Supply Voltage
16 - - Not Used
17 PK 1139 Ignition 1 Voltage (w/Air Bags)
18 PK/OG 239 Ignition 1 Voltage (Except North America)
19 PK 239 Ignition 1 Voltage (Key Interlock)
20 PK 239 Ignition 1 Voltage (w/Alarm)
21 PK 239 Ignition 1 Voltage (Notchback Only Daytime Running Lamp (DRL) Scandinavia)
22 BK 250 Ground
23 - - Not Used
24 BN 141 Ignition 3 Voltage
25 BN 641 Ignition 3 Voltage
BN 641 Ignition 3 Voltage
26 YE 317 Fog Lamp Relay Coil Supply Voltage (w/Rear Fog Lamps)
27 BN 441 Ignition 3 Voltage
28 PK 939 Ignition 1 Voltage
29 - - Not Used
30 PK 3 Ignition 1 Voltage
PK 3 Ignition 1 Voltage
31 PK 239 Ignition 1 Voltage
32 PK 239 Ignition 1 Voltage (DAE)
33 OG 440 Battery Positive Voltage
34 OG 1040 Battery Positive Voltage
35 BN 41 Ignition 3 Voltage (w/A/C)
36 OG 340 Battery Positive Voltage (w/Alarm)
37 OG 1840 Battery Positive Voltage
38 YE 317 Fog Lamp Relay Coil Supply Voltage
39 YE 243 Ignition 3 Voltage (Power Socket)
YE 243 Ignition 3 Voltage (Power Socket)
40 BN 441 Ignition 3 Voltage
41 OG 140 Battery Positive Voltage (w/Daytime Running Lamp (DRL)
42 OG 140 Battery Positive Voltage
OG 140 Battery Positive Voltage
43 PK 739 Ignition 1 Voltage (Notchback w/Cruise Control)
PK 739 Ignition 1 Voltage (Notchback w/Cruise Control)
BN 739 Ignition 1 Voltage (w/ABS)
44 PK 639 Ignition 1 Voltage
45 BK 250 Ground (Except North America)
46 BK 250 Ground
47 RD 142 Charge Indicator Control
48 - - Not Used
49 L-BU 20 Stop Lamp Switch Signal/Stop Lamp Supply Voltage
50 L-BU 20 Stop Lamp Switch Signal/Stop Lamp Supply Voltage (w/Automatic Transmission)
51 YE 43 Accessory Voltage
52 YE 43 Accessory Voltage (w/Key Interlock)
53 YE 143 Accessory Voltage
54 PK 639 Ignition 1 Voltage (w/Immobilizer)
55 PU/WH 33 Brake Warning Indicator Control
PU/WH 33 Brake Warning Indicator Control
56 BK 250 Ground
57 BK 250 Ground (Except North America)
58 BK 250 Ground
59 - - Not Used
60 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
61 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
62 YE 43 Accessory Voltage (w/Key Interlock)
63 YE 43 Accessory Voltage
64 BN 4 Accessory Voltage
65 OG 140 Battery Positive Voltage (w/Daytime Running Lamp (DRL) Scandinavian)
66 PK 839 Ignition 1 Voltage (w/Automatic Transmission)
67 PK 839 Ignition 1 Voltage
68 PU/WH 33 Brake Warning Indicator Lamp
69 BK 250 Ground (w/Dimming)
70 BK 250 Ground
71 - - Not Used
72 OG 1540 Battery Positive Voltage
73 OG 1140 Battery Positive Voltage
74 OG 40 Battery Positive Voltage
75 OG 240 Battery Positive Voltage (w/Immobilizer)
76 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
C202 - I/P Harness to Floor Harness

GM1501862Courtesy of GENERAL MOTORS CORP.
GM1501861Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 96457410
  • 89-Way F Connector (WH)
 Connector Part Information
  • 96457409
  • 89-Way M Connector (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN 247 High Speed Blower Relay Control (w/Auto A/C) 1 BN 247 High Speed Blower Relay Control (w/Auto A/C)
BN/WH (Except North America)
2 WH 193 Rear Defog Relay Control 2 WH 193 Rear Defog Relay Control
WH/BK (Except North America)
3 D-GN 189 Headlamp Leveling Motor Supply Voltage (w/Headlamp Leveling) 3 D-GN 189 Headlamp Leveling Motor Supply Voltage
4 GY 161 Antenna Module Signal 4 GY 161 Antenna Module Signal
5 BN 141 Ignition 3 Voltage 5 BN 141 Ignition 3 Voltage
6 BN 641 Ignition 3 Voltage 6 BN (Except North America) 641 Ignition 3 Voltage
BN/WH
7 BK/WH 238 Seat Belt Switch Left 7 BK/WH 238 Seat Belt Switch Left
8 YE 112 Windshield Wiper Switch Signal 1 8 YE 112 Windshield Wiper Switch Signal 1
9 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gage Signal 9 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gage Signal
10 PU/WH 33 Brake Warning Indicator Control 10 PU/WH 33 Brake Warning Indicator Control
RD 122 Rear Fog Lamp Supply Voltage (Except North America) RD 122 Rear Fog Lamp Supply Voltage (Except North America)
11 L-BU 20 Stop Lamp Switch Signal 11 L-BU 20 Stop Lamp Switch Signal
12 L-GN 483 Serial Data (w/Alarm) 12 L-GN 483 Serial Data (w/Alarm)
PK/BK 1303 Door Switch Signal (Except North America) PK/BK 1303 Door Switch Signal (Except North America)
13 BN 25 Charge Indicator Signal 13 BN 25 Charge Indicator Signal
14 YE 317 Front Fog Lamp Relay Coil Supply Voltage 14 YE/D-GN 317 Front Fog Lamp Relay Coil Supply Voltage
15 PU 126 Left Front Door Open Switch Signal 15 PU/WH 126 Left Front Door Open Switch Signal
16 WH 905 Serial Data (w/ABS) 16 D-GN 905 Serial Data (w/ABS)
17 L-BU 14 Left Turn Signal Lamp Supply Voltage 17 L-BU/BK (Except North America) 14 Left Turn Signal Lamp Supply Voltage
L-BU
18 OG 340 Battery Positive Voltage (w/Alarm) 18 OG 340 Battery Positive Voltage (w/Alarm)
19 D-BU/WH 774 Serial Data (w/ABS) 19 D-BU/WH 774 Serial Data (w/ABS)
20 D-BU 15 Right Turn Signal Lamps Supply Voltage 20 D-BU 15 Right Turn Signal Lamps Supply Voltage
21 PU 2000 Serial Data 21 BN 2000 Serial Data
22 L-GN 867 ABS Indicator Failure Control (w/ABS) 22 L-GN/BK 867 ABS Indicator Failure Control 1 (w/ABS)
23 L-BU 97 Windshield Wiper Switch Mist/OFF/Low Signal 23 BN 96 Windshield Wiper Switch Delay Signal
24 L-BU 263 Tamper Switch Signal (Optional) 24 L-BU 263 Tamper Switch Signal (Optional)
25 D-GN 1659 Microphone (-) (Optional) 25 WH 1659 Microphone (-) (Optional)
26 YE 356 Door Lock (Optional) 26 YE 356 Door Lock (Optional)
27 PK/BK 109 Alarm Signal (Optional) 27 PK/BK 109 Alarm Signal (Optional)
28 WH 1658 Microphone (+) (Optional) 28 D-BU 1658 Microphone (+) (Optional)
29 L-GN/WH 355 Door Unlock (Optional) 29 L-GN/WH 355 Door Unlock (Optional)
30 WH 156 Courtesy Lamp Control 30 PU 156 Courtesy Lamp Control
31 WH 1080 Park Lamp Relay Control (w/Lamp Driver Control Module) 31 WH 1080 Park Lamp Relay Control
32 PU/WH 231 Oil Pressure Switch Signal 32 BN/BK 231 Oil Pressure Switch Signal
PU/BK (Except North America) PU/WH (Except North America) 231 Oil Pressure Daytime Running Lamp (DRL) Input (Scandinavian)
33 D-GN/WH 762 A/C Request Signal (w/A/C) 33 D-GN/D-BU 762 A/C Request Signal (w/A/C)
34 L-GN 11 Headlamp High Beam Supply Voltage 34 L-GN 11 Headlamp High Beam Supply Voltage
35 BK 28 Horn Relay Control 35 BK 28 Horn Relay Control
36 D-BU 744 Trunk Open Signal 36 D-BU 744 Trunk Open Signal
L-BU 195 Door Lock (Except North America) L-BU 195 Door Lock (Except North America)
PK/BK 1303 Door Switch Signal (Except North America) PK/BK 1303 Door Switch Signal (Except North America)
37 - - Not Used 36-37 - - Not Used
38 YE 749 Security Indicator Control (w/Immobilizer) 38 YE/D-GN 749 Security Indicator Control (w/Immobilizer)
39 BN/WH 309 Right Park Lamp Supply Voltage 39 BN/BK 309 Right Park Lamp Supply Voltage
40 OG 540 Battery Positive Voltage 40 OG/BK 540 Battery Positive Voltage
41 PU/WH 33 Brake Warning Indicator Control 41 PU/WH 33 Brake Warning Indicator Control
42 PK 839 Ignition 1 Voltage 42 PK 839 Ignition 1 Voltage
43 RD 228 Windshield Washer Pump Control 43 RD 228 Windshield Washer Pump Control
44 PU 12 Headlamp Low Beam Supply Voltage 44 PU 12 Headlamp Low Beam Supply Voltage
45 OG 640 Battery Positive Voltage 45 OG/BK 640 Battery Positive Voltage
OG 640 Battery Positive Voltage OG/BK 640 Battery Positive Voltage
46 BN 641 Ignition 3 Voltage 46 BN 641 Ignition 3 Voltage
BN/BK (Except North America)
47 BN 441 Ignition 3 Voltage 47 RD/D-BU 441 Ignition 3 Voltage
48 PK 639 Ignition 1 Voltage 48 PK 639 Ignition 3 Voltage
49 L-GN 80 Key In Ignition Switch Signal (w/Alarm) 49 L-GN/RD 80 Key In Ignition Switch Signal (w/Alarm)
BN 253 Trunk Open (Except North America) BN 253 Trunk Open (Except North America)
50 YE 243 Accessory Voltage 50 YE 243 Accessory Voltage
51 BN/WH 419 Malfunction Indicator Lamp (MIL) Control 51 BN/WH 419 Malfunction Indicator Lamp (MIL) Control
52 RD 1642 Battery Positive Voltage 52 RD/D-GN 1642 Battery Positive Voltage
53 YE 5 Crank Voltage (Except North America) 53 YE 5 Crank Voltage (Except North America)
PU 5 Crank Voltage 5 Crank Voltage
54 OG 140 Battery Positive Voltage 54 OG 140 Battery Positive Voltage
55 RD 742 Battery Positive Voltage 55 RD 742 Battery Positive Voltage
56 RD 142 Battery Positive Voltage 56 RD/D-BU 142 Battery Positive Voltage
57 L-BU 1346 Headlamp Supply Voltage 57 L-BU 1346 Headlamp Supply Voltage
58 PK 539 Ignition 1 Voltage 58 PK 539 Ignition 1 Voltage
59 RD 642 Battery Positive Voltage 59 RD/WH 642 Battery Positive Voltage
60 L-GN/BK 735 Ambient Air Temperature Sensor Signal (w/Auto A/C) 60 L-GN/BK 735 Ambient Air Temperature Sensor Signal
61 YE 61 Low Reference (w/Auto A/C) 61 YE/D-BU 61 Low Reference
62 PK 739 Ignition 1 Voltage (w/ABS) 62 BN 739 Ignition 1 Voltage (w/ABS)
63 D-GN/WH 817 Vehicle Speed Signal 63 D-GN/WH 817 Vehicle Speed Signal
64 D-GN 392 Rear Window Washer Pump Control 64 D-GN 392 Rear Window Washer Pump Control (Hatchback Only)
65 D-GN 95 Windshield Washer Switch Signal 65 D-GN 95 Windshield Washer Switch Signal
66 GY 121 Engine Speed Signal 66 WH 121 Engine Speed Signal
67 PU 92 Windshield Wiper Motor High Speed 67 PU 92 Windshield Wiper Motor High Speed
68 PU 201 Left Front Speaker Output (+) 68 PU 201 Left Front Speaker Output (+)
69 YE 710 CAN Serial Data Low (w/Automatic Transmission) 69 YE/BN 710 CAN Serial Data Low
70 WH 393 Rear Window Wiper Motor Control 70 WH 393 Rear Window Wiper Motor Control (Hatchback Only)
71 L-BU 115 Right Rear Speaker Output (-) 71 L-BU 115 Right Rear Speaker Output (-)
72 PU 1807 CAN Serial Data High (w/Automatic Transmission) 72 PU 1807 CAN Serial Data High
73 D-GN/WH 900 Key Cylinder Lamp Control (Notchback Only) 73 D-GN/WH 900 Key Cylinder Lamp Control
74 L-GN 200 Right Front Speaker Output (+) 74 L-GN 200 Right Front Speaker Output (+)
75 L-GN 24 Backup Lamp Supply Voltage (w/Automatic Transmission) 75 L-GN 24 Backup Lamp Supply Voltage
76 RD 709 Left Park Lamp Supply Voltage (w/Alarm) 76 PU/WH 709 Left Park Lamp Supply Voltage
PU 709 Left Park Lamp Supply Voltage (Notchback RHD)
77 GY 118 Left Front Speaker Output (-) 77 GY/WH 118 Left Front Speaker Output (-)
78 GY/BK 1798 Headlamp Relay Control 78 GY/BK 1798 Headlamp Relay Control
79 - - Not Used 79 - - Not Used
BN/WH 1201 Left Front Speaker Output (-) (Except Notchback RHD) BN/WH 1201 Left Front Speaker Output (-) (Except Notchback RHD)
GY 1118 GY 1118
80 YE 116 Left Rear Speaker Output (-) 80 YE 116 Left Rear Speaker Output (-)
81 PU 172 Low Fuel Indicator Control 81 PU 172 Low Fuel Indicator Control
82 - - Not Used 82 - - Not Used
GY 1118 Left Front Speaker Output (+) (Except Notchback RHD) GY 1118 Left Front Speaker Output (+) (Except Notchback RHD)
BN/WH 1201 BN/WH 1201
83 BN 199 Left Rear Speaker Output (+) 83 BN 199 Left Rear Speaker Output (+)
84 - - Not Used 84 - - Not Used
YE 261 Alarm Signal (Except North America) YE 261 Alarm Signal (Except North America)
85 WH 30 Fuel Level Sensor Signal 85 WH/BK 30 Fuel Level Sensor Signal
86 D-BU 46 Right Rear Speaker Output (+) 86 D-BU/WH 46 Right Rear Speaker Output (+)
87 L-BU 1738 Variable Effort Steering Actuator Supply Voltage (w/Variable Effort Steering) 87 L-BU 1738 Variable Effort Steering Actuator Supply Voltage
88 PU 1703 Variable Effort Steering Actuator Control 88 PU 1703 Variable Effort Steering Actuator Control
89 D-GN 117 Right Front Speaker Output (-) 89 D-GN 117 Right Front Speaker Output (-)
C204 - Roof Harness to Floor Harness (w/ Rain Sensor)

GM1501864Courtesy of GENERAL MOTORS CORP.
GM1501863Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936199-1
  • 14-Way F Connector (WH)
 Connector Part Information
  • AMP 936209-1
  • 14-Way M Connector (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 L-GN 227 Windshield Washer Pump Ground 1 L-GN 227 Windshield Washer Pump Ground
2 D-GN 2228 Wiper Motor Signal 2 D-GN 2228 Wiper Motor Signal
3 D-BU 1112 Wiper Motor Signal 3 D-BU 1112 Wiper Motor Signal
4 - - Not Used 4 - - Not Used
WH 1659 Microphone (-) (Optional) WH 1659 Microphone (-) (Optional)
5 GY 161 Antenna Enable Signal 5 GY 161 Antenna Motor Up
6 PU 156 Courtesy Lamp Control 6 PU 156 Courtesy Lamp Control
7 PK 839 Ignition 1 Voltage 7 PK 839 Ignition 1 Voltage
8 YE 112 Windshield Wiper Switch Signal 1 8 YE 112 Windshield Wiper Switch Signal
9 RD 228 Windshield Washer Pump Control 9 RD 228 Windshield Washer Pump Control
10 PK 639 Ignition 1 Voltage 10 RD/D-BU 441 Ignition 1 Voltage (Notchback RHD)
PK 639 Ignition 1 Voltage (Notchback LHD)
11 D-GN/WH 900 Key Cylinder Lamp Control 11 D-GN/WH 900 Key Cylinder Lamp Control
12 OG 640 Battery Positive Voltage 12 OG/BK 640 Battery Positive Voltage
13 BN 641 Ignition 3 Voltage 13 BN/WH 641 Ignition 3 Voltage
14 - - Not Used 14 - - Not Used
PK/BK 1303 Door Switch Signal PK/BK 1303 Door Switch Signal
D-BU 1658 Microphone (+) (Optional) D-BU 1658 Microphone (+) (Optional)
C204 - Roof Harness to Floor Harness (w/o Rain Sensor)

GM1468548Courtesy of GENERAL MOTORS CORP.
GM1468547Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936233
  • 8-Way F 090III 8P PLUG Assembly (WH)
 Connector Part Information
  • AMP 936242
  • 8-Way M 090III 8P CAP Assembly (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 GY 161 Antenna Signal 1 GY 161 Antenna Motor Up (Hatchback Only)
2 PU 156 Courtesy Lamp Control 2 PU 156 Courtesy Lamp Control
3 PK 839 Ignition 1 Voltage 3 PK 839 Ignition 1 Voltage
4 D-GN/WH 900 Key Cylinder Lamp Control 4 D-GN/WH 900 Key Cylinder Lamp Control
5 OG 640 Battery Positive Voltage 5 OG 640 Battery Positive Voltage
OG/BK (Except North America)
6 BN 641 Ignition 3 Voltage 6 BN/WH 641 Ignition 3 Voltage (Hatchback)
BN 641 Ignition 3 Voltage BN 641 Ignition 3 Voltage (Notchback)
7 D-BU 1658 Microphone (+) (Optional) 7 D-BU 1658 Microphone (+) (Optional)
8 WH 1659 Microphone (-) (Optional) 8 WH 1659 Microphone (-) (Optional)
PK/BK 1303 Door Switch Signal (Except North America) PK/BK 1303 Door Switch Signal (Except North America)

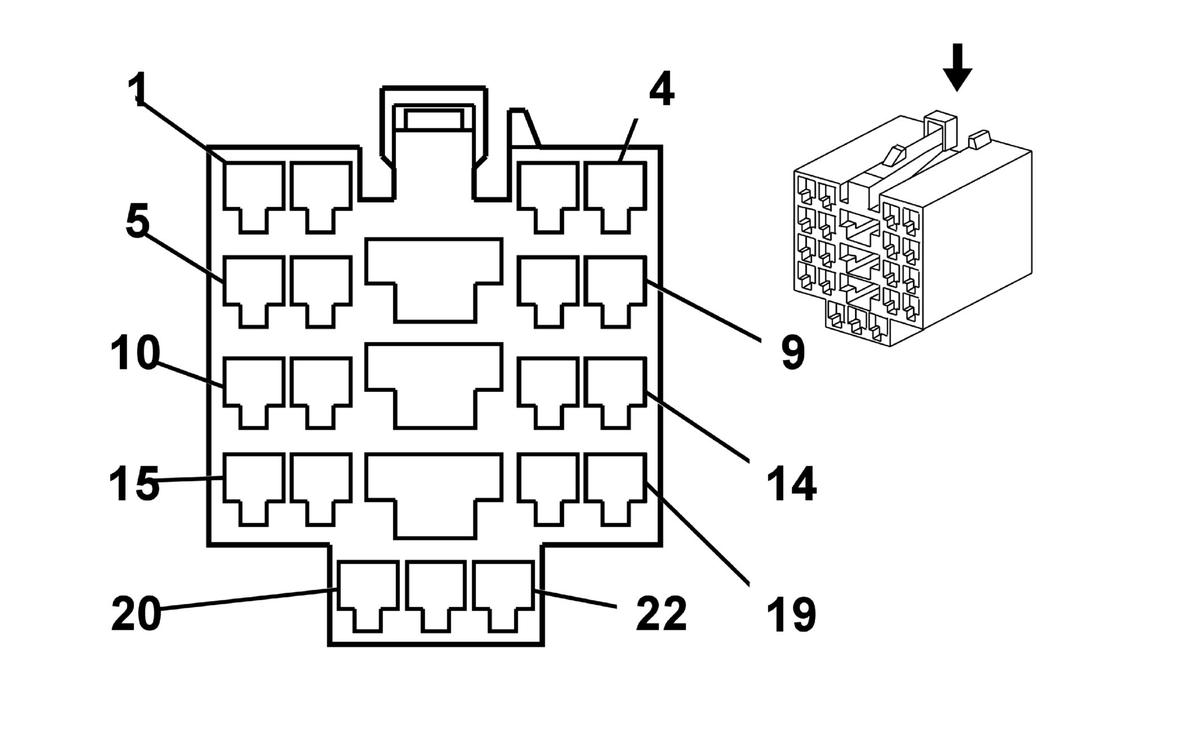

C206 - I/P Harness to TCM Harness (Aisin)

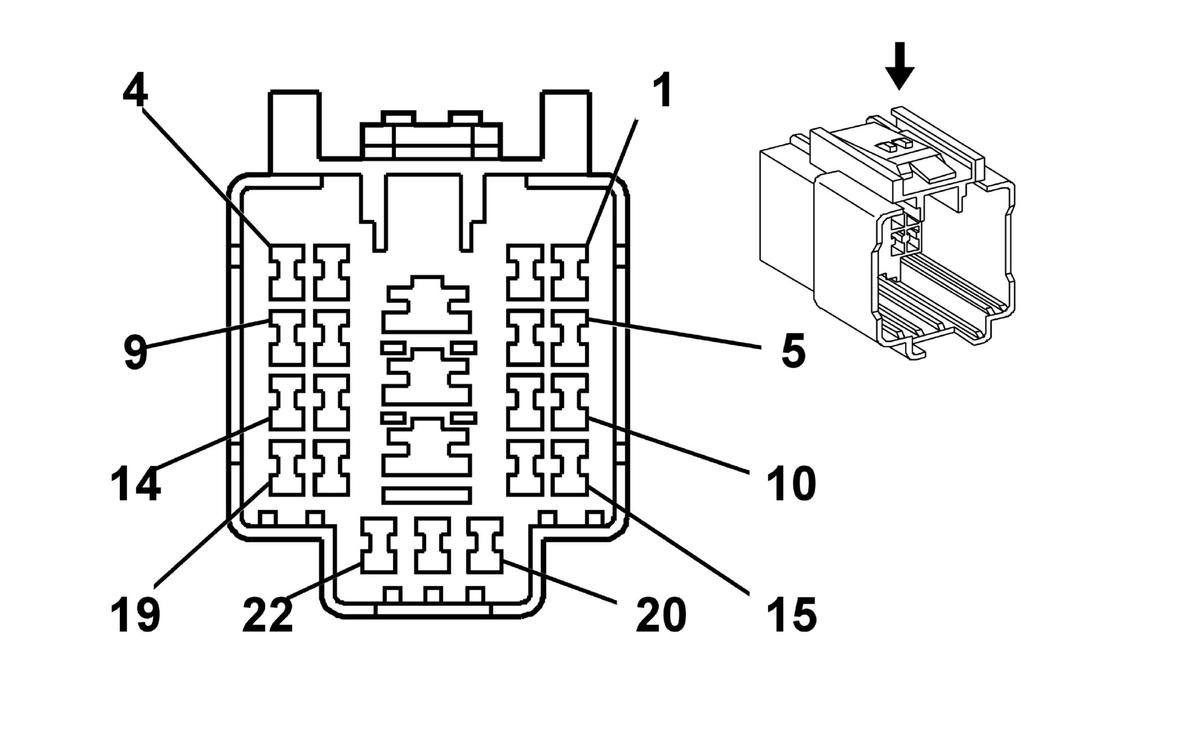

GM1467052Courtesy of GENERAL MOTORS CORP.
GM1467070Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610837
  • 22-Way F Hybrid 2507 Housing (WH)
 Connector Part Information
  • KET MG 620838
  • 22-Way M Hybrid 2507 Housing (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 D-GN/WH 1135 Transmission Hold Signal 1 D-GN/WH 1135 Transmission Hold Signal
2 L-GN/BK 3013 Park/Neutral Position (PNP) Switch Drive Signal 2 WH 2377 Park/Neutral Position (PNP) Switch Drive Signal
3 D-GN/WH 817 Vehicle Speed Signal 3 D-GN/WH 817 Vehicle Speed Signal
4 YE 710 CAN Serial Data Low 4 YE 710 CAN Serial Data Low
5 YE 1481 Hold Mode Indicator Control 5 YE 1481 Hold Mode Indicator Control
6 L-GN/RD 3012 Park/Neutral Position (PNP) Switch Neutral Signal 6 YE 2381 Park/Neutral Position (PNP) Switch Neutral Signal
7 BK 250 Ground 7 BK/WH 51 Ground
8 OG/BK 434 Automatic Transmission Shift Lock Control 8 OG/BK 434 Automatic Transmission Shift Lock Control
9 L-BU 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal 9 L-BU 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal
10 - - Not Used 10 - - Not Used
11 L-GN/RD 3011 Park/Neutral Position (PNP) Switch Reverse Signal 11 D-GN/WH 2383 Park/Neutral Position (PNP) Switch Reverse Signal
12 PK 539 Ignition 1 Voltage 12 PK 839 Ignition 1 Voltage
13-14 - - Not Used 13-14 - - Not Used
15 D-GN 2384 Park/Neutral Position (PNP) Switch 2nd Gear Signal 15 PK 2384 Park/Neutral Position (PNP) Switch 2nd Gear Signal
16 D-BU/RD 3010 Park/Neutral Position (PNP) Switch Park Signal 16 D-GN 2382 Park/Neutral Position (PNP) Switch Park Signal
17 L-GN 24 Backup Lamp Supply Voltage 17 D-GN/WH 24 Backup Lamp Supply Voltage
18 OG 440 Battery Positive Voltage 18 OG 440 Battery Positive Voltage
19 PU 2000 Keyword Serial Data 19 D-BU 2000 Keyword Serial Data
20 PK 839 Ignition 1 Voltage 20 - - Not Used
21 GY 2380 Park/Neutral Position (PNP) Switch Low Gear Signal 21 GY 2380 Park/Neutral Position (PNP) Switch Low Gear Signal
22 PU 1807 CAN Serial Data High 22 PU 1807 CAN Serial Data High
C206 - I/P Harness to TCM Harness (ZF-4HP16)

GM1467052Courtesy of GENERAL MOTORS CORP.
GM1467070Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610837
  • 22-Way F Hybrid 2507 Housing (WH)
 Connector Part Information
  • KET MG 620838
  • 22-Way M Hybrid 2507 Housing (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 D-GN/WH 1135 Transmission Hold Signal 1 D-GN/WH 1135 Transmission Hold Signal
2 L-GN/BK 3013 Park/Neutral Position (PNP) Switch L4 Signal 2 L-GN/BK 3013 Park/Neutral Position (PNP) Switch L4 Signal
3 D-GN/WH 817 Vehicle Speed Signal 3 D-GN/WH 817 Vehicle Speed Signal
4 YE 710 CAN Serial Data Low 4 YE 710 CAN Serial Data Low
5 YE 1481 Hold Mode Indicator Control 5 YE 1481 Hold Mode Indicator Control
6 L-GN/RD 3012 Park/Neutral Position (PNP) Switch L3 Signal 6 RD/ D-BU 3012 Park/Neutral Position (PNP) Switch L3 Signal
7 BK 250 Ground 7 BK/WH 251 Ground
8 OG/BK 434 Automatic Transmission Shift Lock Control 8 OG/BK 434 Automatic Transmission Shift Lock Control
9 L-BU 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal 9 L-BU 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal
10 - - Not Used 10 - - Not Used
11 L-GN/RD 3011 Park/Neutral Position (PNP) Switch L2 Signal 11 L-GN/RD 3011 Park/Neutral Position (PNP) Switch L2 Signal
12 PK 539 Ignition 1 Voltage 12 PK 439 Ignition 1 Voltage
13-14 - - Not Used 13-14 - - Not Used
15 D-GN 2384 Park/Neutral Position (PNP) Switch 2nd Gear Signal (Except North America) 15 D-GN 3017 Transmission Mode Signal Power
16 D-BU/RD 3010 Park/Neutral Position (PNP) Switch L1 Signal 16 D-BU/RD 3010 Park/Neutral Position (PNP) Switch L1 Signal
17 L-GN 24 Backup Lamp Supply Voltage 17 L-GN 24 Backup Lamp Supply Voltage
18 OG 440 Battery Positive Voltage 18 OG 440 Battery Positive Voltage
19 PU 2000 Keyword Serial Data 19 BN 2000 Keyword Serial Data
20 PK 839 Ignition 1 Voltage 20 PK 839 Ignition 1 Voltage
21 GY 2380 Park/Neutral Position (PNP) Switch Low Gear Signal (Except North America) 21 - - Not Used
22 PU 1807 CAN Serial Data High 22 PU 1807 CAN Serial Data High
C207 - SIR Harness to I/P Harness

GM1468522Courtesy of GENERAL MOTORS CORP.
GM1480158Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 175658
  • 6-Way F 070 MLC W-W PLUG HSG 6P (WH)
 Connector Part Information
  • AMP 175657
  • 6-Way M .070 SRS MLC 6POS (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 YE 1139 Ignition 1 Voltage 1 PK 1139 Ignition 1 Voltage
2 BN/WH 238 Seat Belt Switch Left 2 BK/WH 238 Seat Belt Switch Left
3 D-GN 358 Air Bag Indicator Control 3 BN 358 Air Bag Indicator Control
4 L-BU 327 SIR Serial Data 4 L-BU 327 SIR Serial Data
5 - - Not Used (RHD) 5 - - Not Used (RHD)
PK 939 Ignition 1 Voltage (LHD) PK 939 Ignition 1 Voltage (LHD)
6 D-GN/WH 1358 Air Bag Indicator Control (North America Only) 6 D-GN/WH 1358 Air Bag Indicator Control (North America Only)
C208 - I/P Harness to HVAC Harness (Auto A/C Only)

GM1467001Courtesy of GENERAL MOTORS CORP.

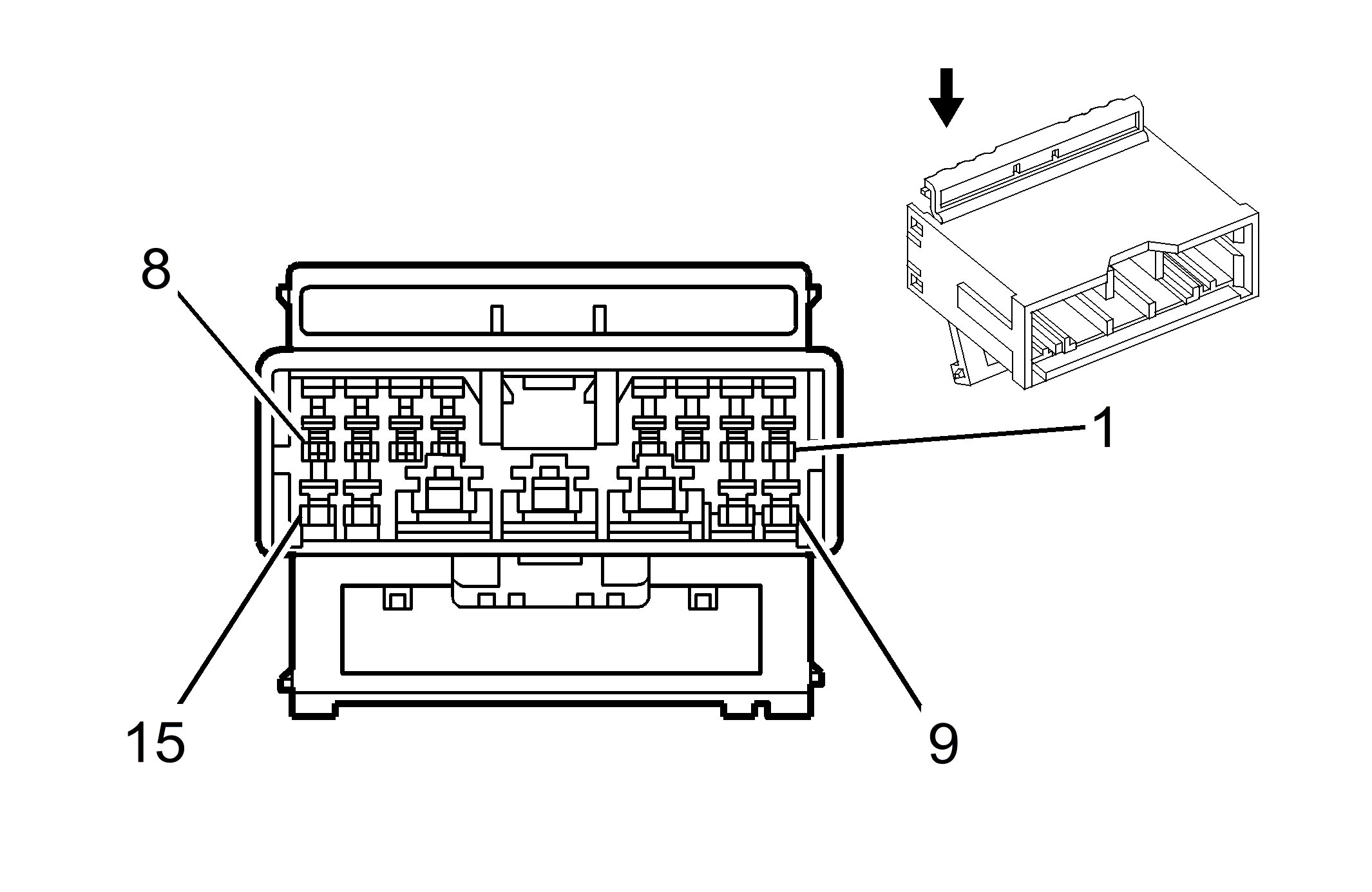

GM1468426Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85113-1
  • 15-Way F 070/250 Series Hybrid 15P Plug Housing (WH)
 Connector Part Information
  • AMP 85114-1
  • 15-Way M .070/.250 Hybrid 15P CAP HSG (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 YE 61 Low Reference 1 YE 61 Low Reference
2 D-GN/WH 762 A/C Request Signal 2 D-GN/WH 762 A/C Request Signal
3 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal 3 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal
4 BN/WH 309 Right Park Lamp Supply Voltage 4 BN/WH 309 Right Park Lamp Supply Voltage
5 D-GN/WH 817 Vehicle Speed Signal 5 D-GN/RD 817 Vehicle Speed Signal
6 BN 41 Ignition 3 Voltage 6 BN 41 Ignition 3 Voltage
7 - - Not Used 7 - - Not Used
8 OG 1140 Battery Positive Voltage 8 OG 1140 Battery Positive Voltage
9 L-GN/BK 735 Ambient Air Temperature Sensor 9 L-GN/BK 735 Ambient Air Temperature Sensor
10 BN 247 High Speed Blower Relay Control 10 - - Not Used
11 WH 193 Rear Defog Relay Control 11 WH 193 Rear Defog Relay Control
12 PU 65 Blower Motor Feed 12 YE 744 Blower Motor Supply Voltage
13 BK 1050 Ground 13 BK 350 Ground
14 D-GN 95 Windshield Washer Switch Signal 14 D-GN 95 Windshield Washer Switch Signal
15 - - Not Used 15 - - Not Used
C209 - HVAC Harness to Auxiliary HVAC Harness (Auto A/C Only)

GM1481273Courtesy of GENERAL MOTORS CORP.
GM1481271Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368511-1
  • 20-Way F 070 Multi Lock Connector (WH)
 Connector Part Information
  • AMP 368510-1
  • 20-Way M 070 Multi Lock Connector (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 OG 1140 Battery Positive Voltage 1 OG 1140 Battery Positive Voltage
2 PK/WH 1648 Recirculation Door Control A 2 PK/WH 1648 Recirculation Door Control A
3 - - Not Used 3 - - Not Used
4 D-GN/BK 1647 Recirculation Door Control B 4 D-GN/BK 1647 Recirculation Door Control B
5 L-GN/BK 735 Ambient Air Temperature Sensor Signal 5 L-GN/BK 735 Ambient Air Temperature Sensor Signal
6 D-BU/BK 247 High Speed Blower Relay Control 6 D-BU/BK 247 High Speed Blower Relay Control
7 D-GN 95 Windshield Washer Switch Signal 7 D-GN 95 Windshield Washer Switch Signal
8 D-GN/RD 817 Vehicle Speed Signal 8 D-GN/RD 817 Vehicle Speed Signal
9 D-BU 188 Blower Motor Supply Voltage 9 D-BU 188 Blower Motor Supply Voltage
10 WH 193 Rear Defog Relay Signal 10 WH 193 Rear Defog Relay Signal
11 BN 41 Ignition 3 Voltage 11 BN 41 Ignition 3 Voltage
12 BN/WH 309 Right Park Lamp Supply Voltage 12 BN/WH 309 Right Park Lamp Supply Voltage
13 D-GN 44 Instrument Panel Lamps Dimming Control 13 D-GN 44 Instrument Panel Lamps Dimming Control
14 BN/WH 762 A/C Request Signal 14 BN/WH 762 A/C Request Signal
15 YE 61 Low Reference 15 YE 61 Low Reference
16-18 - - Not Used 16-18 - - Not Used
19 BK 350 Ground 19 BK 350 Ground
20 GY/BK 754 Blower Motor Speed Control 20 GY/BK 754 Blower Motor Speed Control
C210 - I/P Harness to Console Harness

GM1468522Courtesy of GENERAL MOTORS CORP.
GM1480158Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 175658
  • 6-Way F 070 MLC W-W PLUG HSG 6P (WH)
 Connector Part Information
  • AMP 175657
  • 6-Way M .070 SRS MLC 6POS (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 YE 243 Ignition 3 Voltage 1 YE 243 Ignition 3 Voltage
2 BK 1050 Ground 2 BK 1050 Ground
3 D-GN/WH 1135 Transmission Hold Signal 3 D-GN/WH 1135 Transmission Hold Signal
4 BK 1050 Ground 4 BK 1050 Ground
5 BN/WH 309 Right Park Lamp Supply Voltage 5 BN/WH 309 Right Park Lamp Supply Voltage
BN/WH 309 Right Park Lamp Supply Voltage
6 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal 6 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal
D-GN 44 Instrument Panel Lamps Dimmer Switch Signal
C301 - SIR Harness to Floor Harness (Except North America)

GM1468548Courtesy of GENERAL MOTORS CORP.
GM1468547Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936233-1
  • 8-Way F 090III 8P PLUG Assembly (WH)
 Connector Part Information
  • AMP 936242-1
  • 8-Way M 090III 8P CAP Assembly (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 RD/YE 753 Side Impact Sensor - Driver Voltage 1 PK 753 Side Impact Sensor - Driver Voltage
2 PK/WH 714 Side Impact Sensor - Passenger Voltage 2 PK/WH 714 Side Impact Sensor - Passenger Voltage
3 PK 1184 Seat Belt Pretensioner - Driver Low Control 3 YE/D-BU 1184 Seat Belt Pretensioner - Driver Low Control
4 BK 754 Side Impact Sensor - Driver Signal 4 BK/WH 754 Side Impact Sensor - Driver Signal
5 BN/WH 715 Side Impact Sensor - Passenger Signal 5 BN/WH 715 Side Impact Sensor - Passenger Signal
6 D-BU/WH 1187 Seat Belt Pretensioner - Passenger Low Control 6 RD/BK 1187 Seat Belt Pretensioner - Passenger Low Control
7 PK/BK 1186 Seat Belt Pretensioner - Passenger High Control 7 D-BU/WH 1186 Seat Belt Pretensioner - Passenger High Control
8 D-BU 1185 Seat Belt Pretensioner - Driver High Control 8 PU 1185 Seat Belt Pretensioner - Driver High Control
C301 - SIR to Floor Harness (North America)

GM1480200Courtesy of GENERAL MOTORS CORP.
GM1480201Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936196-1
  • 12-Way F 090 III 12P Plug Assembly (WH)
 Connector Part Information
  • AMP 936207-5
  • 12-Way M 090-II 12P Cap Assembly (BU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 2103 Front End Sensor - Right - Voltage 1 PU 2103 Front End Sensor - Right - Voltage
2 BN/BK 2105 Front End Sensor - Left - Voltage 2 BN/BK 2105 Front End Sensor - Left - Voltage
3 RD-YE 753 Side Impact Sensor - Driver Voltage (w/Side Air Bags) 3 PK 753 Side Impact Sensor - Driver Voltage (w/Side Air Bags)
4 PK/WH 714 Side Impact Sensor - Passenger Voltage (w/Side Air Bags 4 PK/WH 714 Side Impact Sensor - Passenger Voltage (w/Side Air Bags
5 PK 1184 Seat Belt Pretensioner - Driver - Low Control 5 YE/D-BU 1184 Seat Belt Pretensioner - Driver - Low Control
6 D-GN/WH 2104 Front End Sensor - Right - Signal 6 D-GN/WH 2104 Front End Sensor - Right - Signal
7 L-GN/RD 2106 Front End Sensor - Left - Signal 7 L-GN/RD 2106 Front End Sensor - Left - Signal
8 BK 754 Side Impact Sensor Driver Signal (w/Side Air Bags) 8 BK/WH 754 Side Impact Sensor Driver Signal (w/Side Air Bags)
9 BN/WH 715 Side Impact Sensor Passenger Signal (w/Side Air Bags) 9 BN/WH 715 Side Impact Sensor Passenger Signal (w/Side Air Bags)
10 D-BU/WH 1187 Seat Belt Pretensioner - Passenger - Low Control 10 RD/BK 1187 Seat Belt Pretensioner - Passenger - Low Control
11 PK/BK 1186 Seat Belt Pretensioner - Passenger - High Control 11 D-BU/WH 1186 Seat Belt Pretensioner - Passenger - High Control
12 D-BU 1185 Seat Belt Pretensioner - Driver - High Control 12 PU 1185 Seat Belt Pretensioner - Driver - High Control
C302 - ABS Harness to Floor Harness

GM1467086Courtesy of GENERAL MOTORS CORP.
GM1467127Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 641101
  • 4-Way F 090-II WP Series (BK)
 Connector Part Information
  • KET MG 651098
  • 4-Way M 090-II WP (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 GY 882 Right Rear Wheel Speed Sensor Signal 1 BN 882 Right Rear Wheel Speed Sensor Signal
2 WH 883 Right Rear Speed Sensor Return 2 WH 883 Right Rear Speed Sensor Low Reference
3 GY 884 Left Rear Wheel Speed Sensor Signal 3 BK 884 Left Rear Wheel Speed Sensor Low Reference
4 WH 885 Left Rear Wheel Speed Sensor Return 4 D-BU 885 Left Rear Wheel Speed Sensor Signal
C351 - Floor Harness to Left Front Door Harness (LHD)

GM1480205Courtesy of GENERAL MOTORS CORP.
GM1480203Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936283-1
  • 33-Way F 090/JPT 33P Plug Assembly (WH)
 Connector Part Information
  • AMP 936280
  • 33-Way M .090/JPT 33P CAP Assembly (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 201 Left Front Speaker Output (+) 1 PU 201 Left Front Speaker Output (+)
2 GY/WH 118 Left Front Speaker Output (-) 2 GY/WH 118 Left Front Speaker Output (-)
3 YE 356 Driver Door Lock Relay Unlock Control 3 WH 356 Driver Door Lock Relay Unlock Control
4 WH 194 Door Unlock Control 4 WH 194 Door Unlock Control
5 PU 167 Power Window Master Switch Passenger Front Down Signal 5 PU 167 Power Window Master Switch Passenger Front Down Signal
6 L-BU 166 Power Window Master Switch Passenger Front Up Signal 6 L-BU 166 Power Window Master Switch Passenger Front Up Signal
7 GY/BK 90 Passenger Mirror Motor Left Control 7 GY 90 Passenger Mirror Motor Left Control
8 PU/WH 889 Passenger Mirror Motor Down Control 8 PU/WH 889 Passenger Mirror Motor Down Control
9 RD/WH 881 Passenger Mirror Motor Right Control 9 RD/WH 881 Passenger Mirror Motor Right Control
10 RD 581 Power Window Supply Voltage - Driver Door 10 RD 581 Power Window Supply Voltage - Driver Door
11 L-GN/WH 355 Driver Door Lock Relay Lock Control 11 L-GN/WH 355 Driver Door Lock Relay Lock Control
12 D-BU 1307 Power Window Master Switch Lockout Control 12 D-BU 1307 Power Window Master Switch Lockout Control
13 L-BU 195 Door Lock Control 13 L-BU/BK 195 Door Lock Control
14 PU/RD 169 Power Window Master Switch Left Rear Down Signal 14 PU/RD 169 Power Window Master Switch Left Rear Down Signal
15 D-GN 168 Power Window Master Switch Left Rear Up Signal 15 D-GN 168 Power Window Master Switch Left Rear Up Signal
16 BN 253 Trunk Release Relay Control 16 BN 253 Trunk Release Relay Control
17 OG 640 Battery Positive Voltage 17 OG 640 Battery Positive Voltage
18 BN/BK 641 Ignition 3 Voltage 18 BN 141 Ignition 3 Voltage
BN
19 BK 1150 Ground 19 BK 1150 Ground
20 BK 1150 Ground 20 BK 1150 Ground
21 OG 580 Power Window Supply Voltage 21 OG 580 Power Window Supply Voltage
22 GY 1118 Left Speaker Output (+) Optional 22 D-GN 1118 Left Speaker Output (+) Optional
23 PU/WH 171 Power Window Master Switch Right Rear Down Signal 23 PU/WH 171 Power Window Master Switch Right Rear Down Signal
24 L-GN 170 Power Window Master Switch Right Rear Up Signal 24 L-GN 170 Power Window Master Switch Right Rear Up Signal
25 L-GN/BK 2231 Folding Mirror Motor Extend Control (w/Folding Mirrors) 25 L-GN/BK 2231 Folding Mirror Motor Extend Control (w/Folding Mirrors)
26 BN/WH 2230 Folding Mirror Motor Retract Control (w/Folding Mirrors) 26 BN/WH 2230 Folding Mirror Motor Retract Control (w/Folding Mirrors)
27 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage 27 OG/WH 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
28 GY 295 Door Lock Actuator Lock Control 28 GY 295 Door Lock Actuator Lock Control
29 L-GN 1370 Driver Door Lock Switch Signal 29 L-GN 1370 Driver Door Lock Switch Signal
30 PU/WH 294 Door Lock Actuator Unlock Control 30 PU/WH 294 Door Lock Actuator Unlock Control
31 BN/WH 1201 Left Speaker Output (-) Optional 31 PU 1201 Left Speaker Output (-) Optional
32 YE/GN 749 Security Indicator Control (w/Alarm) 32 YE 749 Security Indicator Control (w/Alarm)
33 GY/RD 2232 Folding Mirror Switch Signal (w/Folding Mirrors) 33 GY/BK 2232 Folding Mirror Switch Signal (w/Folding Mirrors)
C351 - Floor Harness to Left Front Door Harness (RHD)

GM1480205Courtesy of GENERAL MOTORS CORP.
GM1480203Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936283-1
  • 33-Way F 090/JPT 33P Plug Assembly (WH)
 Connector Part Information
  • AMP 936280
  • 33-Way M .090/JPT 33P CAP Assembly (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 201 Left Front Speaker Output (+) 1 L-GN 201 Left Front Speaker Output (+)
2 GY/WH 118 Left Front Speaker Output (-) 2 D-GN 118 Left Front Speaker Output (-)
3-4 - - Not Used 3 - - Not Used
5 PU 167 Power Window Master Switch Passenger Front Down Signal 5 PU 167 Power Window Master Switch Passenger Front Down Signal
6 L-BU 166 Power Window Master Switch Passenger Front Up Signal 6 L-BU 166 Power Window Master Switch Passenger Front Up Signal
7 GY/BK 90 Passenger Mirror Motor Left Control 7 GY/BK 90 Passenger Mirror Motor Left Control
8 PU/WH 889 Passenger Mirror Motor Down Control 8 PU/WH 889 Passenger Mirror Motor Down Control
9 RD/WH 881 Passenger Mirror Motor Right Control 9 RD/WH 881 Passenger Mirror Motor Right Control
10 - - Not Used 10 - - Not Used
11 BK 350 Ground (Hatchback) 11 BK 350 Ground (Hatchback)
BK 1150 Ground (Notchback) BK 1150 Ground (Notchback)
12 D-BU 1307 Power Window Master Switch Lockout Control 12 D-BU 1307 Power Window Master Switch Lockout Control
13-24 - - Not Used 13-24 - - Not Used
25 L-GN/BK 2231 Folding Mirror Motor Extend Control (w/Folding Mirrors) 25 L-GN/BK 2231 Folding Mirror Motor Extend Control (w/Folding Mirrors)
26 BN/WH 2230 Folding Mirror Motor Retract Control (w/Folding Mirrors) 26 BN/WH 2230 Folding Mirror Motor Retract Control (w/Folding Mirrors)
27 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage 27 OG/WH 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
28 GY 295 Door Lock Actuator Lock Control 28 GY 295 Door Lock Actuator Lock Control
29 PU 1371 Passenger Door Lock Switch Signal 29 PU 1371 Passenger Door Lock Switch Signal
30 PU/WH 294 Door Lock Actuator Unlock Control 30 PU/WH 294 Door Lock Actuator Unlock Control
31-33 - - Not Used 31-33 - - Not Used
C361 - Floor Harness to Right Front Door Harness (LHD)

GM1480205Courtesy of GENERAL MOTORS CORP.
GM1480203Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936283-1
  • 33-Way F 090/JPT 33P Plug Assembly (WH)
 Connector Part Information
  • AMP 936280
  • 33-Way M .090/JPT 33P CAP Assembly (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 L-GN 200 Right Front Speaker Output (+) 1 L-GN 200 Right Front Speaker Output (+)
2 D-GN 117 Right Front Speaker Output (-) 2 D-GN 117 Right Front Speaker Output (-)
3-4 - - Not Used 3-4 - - Not Used
5 PU 167 Power Window Master Switch Passenger Front Down Signal 5 PU 167 Power Window Master Switch Passenger Front Down Signal
6 L-BU 166 Power Window Master Switch Passenger Front Up Signal 6 L-BU 166 Power Window Master Switch Passenger Front Up Signal
7 GY/BK 90 Passenger Mirror Motor Left Control 7 GY/BK 90 Passenger Mirror Motor Left Control
8 PU/WH 889 Passenger Mirror Motor Down Control 8 PU/WH 889 Passenger Mirror Motor Down Control
9 RD/WH 881 Passenger Mirror Motor Right Control 9 RD/WH 881 Passenger Mirror Motor Right Control
10 - - Not Used 10 - - Not Used
11 BK 350 Ground 11 BK 350 Ground
12 D-BU 1307 Power Window Master Switch Lockout Control 12 D-BU 1307 Power Window Master Switch Lockout Control
13-24 - - Not Used 10 - - Not Used
25 L-GN/BK 2231 Folding Mirror Motor Extend Control (w/Folding Mirrors) 25 L-GN/BK 2231 Folding Mirror Motor Extend Control (w/Folding Mirrors)
26 BN/WH 2230 Folding Mirror Motor Retract Control (w/Folding Mirrors) 26 BN/WH 2230 Folding Mirror Motor Retract Control (w/Folding Mirrors)
27 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage 27 OG/WH 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
28 GY 295 Door Lock Actuator Lock Control 28 GY 295 Door Lock Actuator Lock Control
29 PU 1371 Driver Door Lock Switch Signal 29 PU 1371 Driver Door Lock Switch Signal
30 PU/WH 294 Door Lock Actuator Unlock Control 30 PU/WH 294 Door Lock Actuator Unlock Control
31-33 - - Not Used 10 - - Not Used
C361 - Floor Harness to Right Front Door Harness (RHD)

GM1480205Courtesy of GENERAL MOTORS CORP.
GM1480203Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936283-1
  • 33-Way F 090/JPT 33P Plug Assembly (WH)
 Connector Part Information
  • AMP 936280
  • 33-Way M .090/JPT 33P CAP Assembly (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 200 Right Front Speaker Output (+) 1 PU 200 Right Front Speaker Output (+)
2 GY/WH 117 Right Front Speaker Output (-) 2 GY/WH 117 Right Front Speaker Output (-)
3 YE 356 Driver Door Lock Relay Unlock Control 3 WH 356 Driver Door Lock Relay Unlock Control
4 WH 194 Door Unlock Control 4 WH 194 Door Unlock Control
5 PU 167 Power Window Master Switch Passenger Front Down Signal 5 PU 167 Power Window Master Switch Passenger Front Down Signal
6 L-BU 166 Power Window Master Switch Passenger Front Up Signal 6 L-BU 166 Power Window Master Switch Passenger Front Up Signal
7 GY/BK 90 Passenger Mirror Motor Left Control 7 GY/BK 90 Passenger Mirror Motor Left Control
8 PU/WH 889 Passenger Mirror Motor Down Control 8 PU/WH 889 Passenger Mirror Motor Down Control
9 RD/WH 881 Passenger Mirror Motor Right Control 9 RD/WH 881 Passenger Mirror Motor Right Control
10 RD 581 Power Window Supply Voltage - Driver Door 10 RD 581 Power Window Supply Voltage - Driver Door
11 L-GN/WH 355 Driver Door Lock Relay Lock Control 11 L-GN/WH 355 Driver Door Lock Relay Lock Control
BK 350 Ground BK 350 Ground
12 D-BU 1307 Power Window Master Switch Lockout Control 12 D-BU 1307 Power Window Master Switch Lockout Control
13 L-BU 195 Door Lock Control 13 L-BU 195 Door Lock Control
14 PU/RD 169 Power Window Master Switch Left Rear Down Signal 14 PU/RD 169 Power Window Master Switch Left Rear Down Signal
15 D-GN 168 Power Window Master Switch Left Rear Up Signal 15 D-GN 168 Power Window Master Switch Left Rear Up Signal
16 BN 253 Trunk Release Relay Control 16 BN 253 Trunk Release Relay Control
17 OG 640 Battery Positive Voltage 17 OG 640 Battery Positive Voltage
18 BN/BK 641 Ignition 3 Voltage 18 BN 641 Ignition 3 Voltage
19 BK 350 Ground 19 BK 1150 Ground
20 BK 350 Ground 20 BK 1150 Ground
21 OG 580 Power Window Supply Voltage 21 OG 580 Power Window Supply Voltage
22 D-GN 1118 Left Speaker Output (+) Optional 22 D-GN 1118 Left Speaker Output (+) Optional
23 PU/WH 171 Power Window Master Switch Right Rear Down Signal 23 PU/WH 171 Power Window Master Switch Right Rear Down Signal
24 L-GN 170 Power Window Master Switch Right Rear Up Signal 24 L-GN 170 Power Window Master Switch Right Rear Up Signal
25 L-GN/BK 2231 Folding Mirror Motor Extend Control (w/Folding Mirrors) 25 L-GN/BK 2231 Folding Mirror Motor Extend Control (w/Folding Mirrors)
26 BN/WH 2230 Folding Mirror Motor Retract Control (w/Folding Mirrors) 26 BN/WH 2230 Folding Mirror Motor Retract Control (w/Folding Mirrors)
27 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage 27 OG/WH 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
28 GY 295 Door Lock Actuator Lock Control 28 GY 295 Door Lock Actuator Lock Control
29 L-GN 1370 Driver Door Lock Switch Signal 29 L-GN 1370 Driver Door Lock Switch Signal
30 PU/WH 294 Door Lock Actuator Unlock Control 30 PU/WH 294 Door Lock Actuator Unlock Control
31 PU 1201 Left Speaker Output (-) Optional 31 PU 1201 Left Speaker Output (-) Optional
32 YE/D-GN 749 Security Indicator Control (w/Alarm) 32 YE 749 Security Indicator Control (w/Alarm)
33 GY/RD 2232 Folding Mirror Switch Signal (w/Folding Mirrors) 33 GY/BK 2232 Folding Mirror Switch Signal (w/Folding Mirrors)
C371 - Floor Harness to Left Rear Door Harness

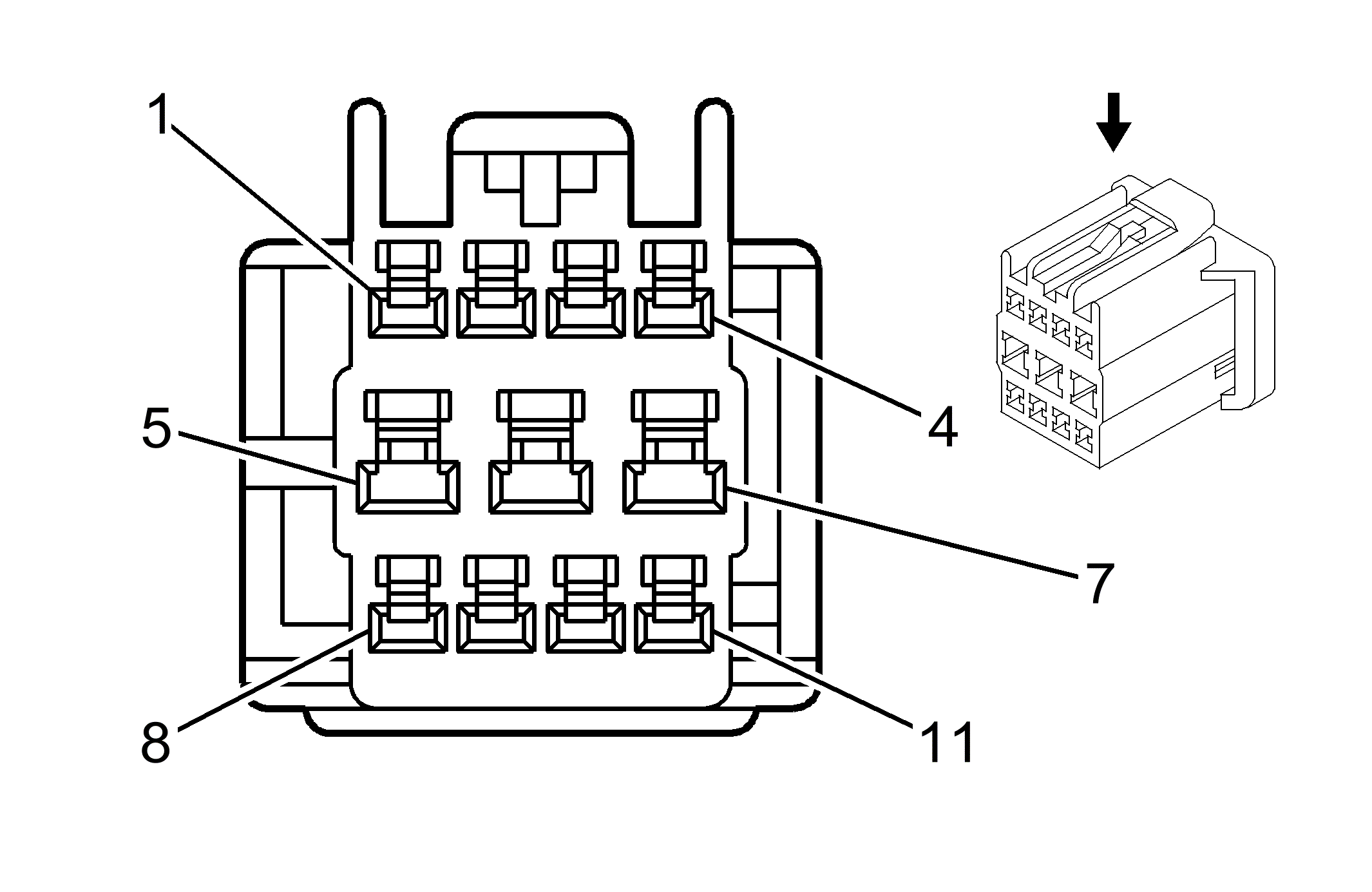

GM1480168Courtesy of GENERAL MOTORS CORP.
GM1480162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85218-1
  • 11-Way F 070/110 Series 11P Plug Housing (WH)
 Connector Part Information
  • AMP 85216
  • 11-Way M 070/110 Series 11P Cap Housing (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 YE 116 Left Rear Speaker Output (-) 1 D-GN 116 Left Rear Speaker Output (-)
2-3 - - Not Used 2-3 - - Not Used
4 BN 199 Left Rear Speaker Output (+) 4 BN 199 Left Rear Speaker Output (+)
L-GN 199 Left Rear Speaker Output (+) (Except North America)
5 D-GN 168 Power Window Master Switch Left Rear Up Signal (w/Power Windows) 5 D-GN 168 Power Window Master Switch Left Rear Up Signal (w/Power Windows)
6 D-BU 1307 Power Window Master Switch Lockout Control (w/Power Windows) 6 D-BU 1307 Power Window Master Switch Lockout Control (w/Power Windows)
7 PU/RD 169 Power Window Master Switch Left Rear Down Signal (w/Power Windows) 7 PU 169 Power Window Master Switch Left Rear Down Signal (w/Power Windows)
8 GY 295 Door Lock Actuator Lock Control 8 GY 295 Door Lock Actuator Lock Control
9 BK 1250 Ground (w/Power Windows) 9 BK 1250 Ground (w/Power Windows)
10 - - Not Used 10 - - Not Used
11 PU/WH 294 Door Lock Actuator Unlock Control 11 PU 294 Door Lock Actuator Unlock Control
PU 294 Door Lock Actuator Unlock Control (Except North America)
C381 - Floor Harness to Right Rear Door Harness

GM1480168Courtesy of GENERAL MOTORS CORP.
GM1480162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85218-1
  • 11-Way F 070/110 Series 11P Plug Housing (WH)
 Connector Part Information
  • AMP 85216
  • 11-Way M 070/110 Series 11P Cap Housing (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 L-BU 115 Right Rear Speaker Output (-) 1 D-GN 115 Right Rear Speaker Output (-)
2-3 - - Not Used 2-3 - - Not Used
4 D-BU/WH 46 Right Rear Speaker Output (+) 4 BN 199 Right Rear Speaker Output (+)
5 L-GN 170 Power Window Master Switch Right Rear Up Signal (w/Power Windows) 5 D-GN 168 Power Window Master Switch Right Rear Up Signal (w/Power Windows)
6 D-BU 1307 Power Window Master Switch Lockout Control (w/Power Windows) 6 D-BU 1307 Power Window Master Switch Lockout Control (w/Power Windows)
7 PU/WH 171 Power Window Master Switch Right Rear Down Signal (w/Power Windows) 7 PU 169 Power Window Master Switch Right Rear Down Signal (w/Power Windows)
8 GY 295 Door Lock Actuator Lock Control 8 GY 295 Door Lock Actuator Lock Control
9 BK 350 Ground (w/Power Windows) 9 BK 1250 Ground (w/Power Windows)
10 - - Not Used 10 - - Not Used
11 PU/WH 294 Door Lock Actuator Unlock Control 11 PU 294 Door Lock Actuator Unlock Control
C391 - Rear ABS Harness to Left Rear Wheel Speed Sensor Jumper

GM1506478Courtesy of GENERAL MOTORS CORP.
GM1506100Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Bosch 2264-420424 (F)
  • 2-Way F Connector (BK)
 Connector Part Information
  • Bosch 2264-420424 (M)
  • 2-Way M Connector (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 WH 885 Left Rear Wheel Speed Sensor Signal 1 WH 885 Left Rear Wheel Speed Sensor Signal
2 GY 884 Left Rear Wheel Speed Sensor Low Reference 2 BK 884 Left Rear Wheel Speed Sensor Return
C392 - Rear ABS Harness to Right Rear Wheel Speed Sensor Jumper

GM1506478Courtesy of GENERAL MOTORS CORP.
GM1506100Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Bosch 2264-420424 (F)
  • 2-Way F Connector (BK)
 Connector Part Information
  • Bosch 2264-420424 (M)
  • 2-Way M Connector (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 WH 883 Right Rear Wheel Speed Sensor Signal 1 WH 883 Right Rear Wheel Speed Sensor Signal
2 GY 882 Right Rear Wheel Speed Sensor Low Reference 2 BK 882 Right Rear Wheel Speed Sensor Return
C401 - Trunk Harness to Floor Harness (Hatchback)

GM1467119Courtesy of GENERAL MOTORS CORP.
GM1467085Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641053
  • 8-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 L-BU/PU 1986 EVAP Canister Vent Solenoid Control (North America) 1 L-BU/PU 1986 EVAP Canister Vent Solenoid Control
2 - - Not Used 2 - - Not Used
3 YE 20 Stop Lamp Supply Voltage 3 L-BU 20 Stop Lamp Supply Voltage
4 PK/BK 1846 Ignition 1 Voltage (North America) 4 PK/BK 1846 Ignition 1 Voltage
5 D-BU 15 Right Turn Signal Lamp Supply Voltage 5 D-BU 15 Right Turn Signal Lamp Supply Voltage
6 L-BU 14 Left Turn Signal Lamp Supply Voltage 6 L-BU/BK 14 Left Turn Signal Lamp Supply Voltage
7 PU 709 Left Park Lamp Supply Voltage 7 PU/BK 709 Left Park Lamp Supply Voltage
PU 709 Left Park Lamp Supply Voltage
8 BN/WH 309 Right Park Lamp Supply Voltage 8 BN/WH 309 Right Park Lamp Supply Voltage
BN/WH 309 Right Park Lamp Supply Voltage
C401 - Trunk Harness to Floor Harness (Notchback)

GM1468548Courtesy of GENERAL MOTORS CORP.
GM1468547Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936233
  • 8-Way F 090III 8P Plug Assembly (WH)
 Connector Part Information
  • AMP 936242-1
  • 8-Way M 090III 8P CAP Assembly (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 D-BU 15 Right Turn Signal Lamp Supply Voltage 1 D-BU 15 Right Turn Signal Lamp Supply Voltage
2 BN/WH 309 Right Park Lamp Supply Voltage 2 BN/WH 309 Right Park Lamp Supply Voltage
3 YE 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal 3 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
4 PU 709 Left Park Lamp Supply Voltage 4 PU/WH 709 Left Park Lamp Supply Voltage
5 L-BU 14 Left Turn Signal Lamp Supply Voltage 5 L-BU 14 Left Turn Signal Lamp Supply Voltage
L-BU/BK
6 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps) 6 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps)
L-BU/PU 1986 EVAP Canister Vent Solenoid Control (North America) L-BU/PU 1986 EVAP Canister Vent Solenoid Control (North America)
7 L-GN 24 Backup Lamp Supply Voltage 7 L-GN 24 Backup Lamp Supply Voltage
8 PK/BK 1846 Ignition 1 Voltage (North America) 8 PK/BK 1846 Ignition 1 Voltage (North America)
YE/BK 2001 GPS (Optional) YE/BK 2001 GPS (Optional)
C401 - Trunk Harness to Floor Harness (Optional)

GM1467115Courtesy of GENERAL MOTORS CORP.
GM1467083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 6-Way F 090 II Series (WH)
 Connector Part Information
  • KET MG 641053
  • 6-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 - - Not Used 1 - - Not Used
2 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal 2 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
3 D-BU 15 Right Turn Signal Lamp Supply Voltage 3 D-BU 15 Right Turn Signal Lamp Supply Voltage
4 L-BU 14 Left Turn Signal Lamp Supply Voltage 4 L-BU 14 Left Turn Signal Lamp Supply Voltage
5 PU/BK 709 Left Park Lamp Supply Voltage 5 PU/BK 709 Left Park Lamp Supply Voltage
6 BN/WH 309 Right Park Lamp Supply Voltage 6 BN/WH 309 Right Park Lamp Supply Voltage
C401 - Trunk Harness to Floor Harness (Notchback) (Optional)

GM1468548Courtesy of GENERAL MOTORS CORP.
GM1468547Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936092
  • 10-Way F 090III 8P Plug Assembly (WH)
 Connector Part Information
  • AMP 636129
  • 10-Way M 090III 8P CAP Assembly (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 D-BU 15 Right Turn Signal Lamp Supply Voltage 1 D-BU 15 Right Turn Signal Lamp Supply Voltage
2 BN/WH 309 Right Park Lamp Supply Voltage 2 BN/WH 309 Right Park Lamp Supply Voltage
3 YE 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal 3 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
4 PU 709 Left Park Lamp Supply Voltage 4 PU/WH 709 Left Park Lamp Supply Voltage
5 L-BU 14 Left Turn Signal Lamp Supply Voltage 5 L-BU/BK 14 Left Turn Signal Lamp Supply Voltage
6 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps) 6 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps)
7 L-GN 24 Backup Lamp Supply Voltage 7 L-GN 24 Backup Lamp Supply Voltage
8 L-BU/PU 1986 EVAP Canister Vent Solenoid Control (North America) 8 L-BU/PU 1986 EVAP Canister Vent Solenoid Control (North America)
9 PK/BK 1846 Ignition 1 Voltage (North America) 9 PK/BK 1846 Ignition 1 Voltage (North America)
10 - - Not Used 10 - - Not Used
C402 - Trunk Lid Harness to Floor Harness (Notchback)

GM1468516Courtesy of GENERAL MOTORS CORP.
GM1480157Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174923
  • 6-Way F 070 Multi Lock Connector (WH)
 Connector Part Information
  • AMP 174930
  • 6-Way M .070 SRS MLC 6POS (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 L-BU 263 Rear Compartment Lid Ajar Switch Signal (w/RKE) 1 L-BU 263 Rear Compartment Lid Ajar Switch Signal (w/RKE)
2 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal 2 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
3 BK 1250 Ground 3 BK 1250 Ground
4 PU 709 Left Park Lamp Supply Voltage 4 PU/BK 709 Left Park Lamp Supply Voltage
PU/WH
5 BN 253 Trunk Release Relay Control 5 BN 253 Trunk Release Relay Control
6 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal (w/RKE) 6 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal (w/RKE)
C403 - Liftgate Jumper Harness to Floor Harness (Notchback)

GM1468516Courtesy of GENERAL MOTORS CORP.
GM1480157Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 651038
  • 4-Way F 070 Multi Lock Connector (WH)
 Connector Part Information
  • AMP 641041
  • 4-Way M .070 SRS MLC 6POS (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 750 Ground 1 BK 750 Ground
2 BK 750 Ground 2 BK 750 Ground
3 PU 293 Rear Compartment Lid Ajar Switch Signal (w/RKE) 3 PU 293 Rear Compartment Lid Ajar Switch Signal (w/RKE)
4 - - Not Used 4 - - Not Used
C403 - Liftgate Jumper Harness to Floor Harness (Hatchback)

GM1467115Courtesy of GENERAL MOTORS CORP.
GM1467083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 6-Way F 090 II Series (WH)
 Connector Part Information
  • KET MG 641047
  • 6-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage 1 PU/WH 709 Left Park Lamp Supply Voltage
2 - - Not Used 2 - - Not Used
3 L-GN 24 Backup Lamp Supply Voltage 3 L-GN 24 Backup Lamp Supply Voltage
L-GN 24 Backup Lamp Supply Voltage
4 - - Not Used 4 - - Not Used
5 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal 5 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
6 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps) 6 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps)
C404 - Liftgate Jumper Harness to Floor Harness (Notchback)

GM1467119Courtesy of GENERAL MOTORS CORP.
GM1467085Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641053
  • 8-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 WH 393 Rear Window Wiper Motor Control 1 WH 393 Rear Window Wiper Motor Control
2 BN 441 Ignition 3 Voltage 2 RD/D-BU 441 Ignition 3 Voltage
3 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal 3 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
4 PK/BK 1303 Liftgate Switch Signal (w/RKE) 4 PK/BK 1303 Liftgate Switch Signal (w/RKE)
5 L-BU 263 Rear Compartment Lid Ajar Switch (w/RKE) 5 L-BU 263 Rear Compartment Lid Ajar Switch (w/RKE)
6 PU 294 Door Lock Actuator Unlock Control 6 PU 294 Door Lock Actuator Unlock Control
7 GY 295 Door Lock Actuator Lock Control 7 GY 295 Door Lock Actuator Lock Control
8 PU 709 Left Park Lamp Supply Voltage 8 PU 709 Left Park Lamp Supply Voltage
C404 - Liftgate Jumper Harness to Floor Harness (Hatchback)

GM1467119Courtesy of GENERAL MOTORS CORP.
GM1467085Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641053
  • 8-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 294 Door Lock Actuator Unlock Control 1 PU/WH 294 Door Lock Actuator Unlock Control
2 GY 295 Door Lock Actuator Lock Control 2 GY 295 Door Lock Actuator Lock Control
3 L-BU 263 Rear Compartment Lid Ajar Switch (w/RKE) 3 L-BU 263 Rear Compartment Lid Ajar Switch (w/RKE)
4 PK/BK 1303 Liftgate Switch Signal (w/RKE) 4 PK/BK 1303 Liftgate Switch Signal (w/RKE)
5 BN 441 Ignition 3 Voltage 5 RD/D-BU 441 Ignition 3 Voltage
6 WH 393 Rear Window Wiper Motor Control 6 WH 393 Rear Window Wiper Motor Control
7 PU 293 Rear Defog Element Supply Voltage 7 PU 293 Rear Defog Element Supply Voltage
D-GN
8 - - Not Used 8 - - Not Used
C405 - Liftgate Jumper Harness to Liftgate Harness (Hatchback)

GM1467119Courtesy of GENERAL MOTORS CORP.
GM1467085Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641053
  • 8-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage 1 PU 709 Left Park Lamp Supply Voltage
2 BK 750 Ground 2 BK 750 Ground
3 BK 750 Ground 3 BK 750 Ground
4 L-GN 24 Backup Lamp Supply Voltage 4 L-GN 24 Backup Lamp Supply Voltage
L-GN 24 Backup Lamp Supply Voltage
5 L-BU 20 Stop Lamp Supply Voltage 5 L-BU 20 Stop Lamp Supply Voltage
6 BN 441 Ignition 3 Voltage 6 PK 441 Ignition 3 Voltage
7 WH 393 Rear Window Wiper Motor Control 7 WH 393 Rear Window Wiper Motor Control
8 BK 750 Ground 8 BK 750 Ground
C405 - Liftgate Jumper Harness to Liftgate Harness (Notchback)

GM1467119Courtesy of GENERAL MOTORS CORP.
GM1467085Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641053
  • 8-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 WH 393 Rear Window Wiper Motor Control 1 WH 393 Rear Window Wiper Motor Control
2 BN 441 Ignition 3 Voltage 2 RD/BU 441 Ignition 3 Voltage
3 L-BU 20 Stop Lamp Supply Voltage 3 L-BU 20 Stop Lamp Supply Voltage
4 PK/BK 1303 Liftgate Switch Signal 4 PK/BK 1303 Liftgate Switch Signal
5 L-BU 263 Rear Compartment Lid Ajar Switch 5 L-BU 263 Rear Compartment Lid Ajar Switch
6 PU 294 Door Lock Actuator Unlock Control 6 PU 294 Door Lock Actuator Unlock Control
7 GY 295 Door Lock Actuator Lock Control 7 GY 295 Door Lock Actuator Lock Control
8 PU 709 Left Park Lamp Supply Voltage 8 PU 709 Left Park Lamp Supply Voltage
C406 - Liftgate Jumper Harness to Liftgate Harness (Hatchback)

GM1468516Courtesy of GENERAL MOTORS CORP.
GM1480157Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936230-1
  • 6-Way F 090 II Series (WH)
 Connector Part Information
  • KET MG 641047
  • 6-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps) 1 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps)
2 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal (w/RKE) 2 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal (w/RKE)
3 D-GN 293 Rear Defog Element Supply Voltage 3 D-GN 293 Rear Defog Element Supply Voltage
PU (North America)
4 L-BU 263 Rear Compartment Lid Ajar Switch Signal (w/RKE) 4 L-BU 263 Rear Compartment Lid Ajar Switch Signal (w/RKE)
5 PU 294 Door Unlock Actuator Control 1 PU 294 Door Unlock Actuator Control
6 GY 295 Door Lock Actuator Control 2 GY 295 Door Lock Actuator Control
C406 - Liftgate Jumper Harness to Liftgate Harness (Notchback)

GM1467114Courtesy of GENERAL MOTORS CORP.
GM1467080Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651038
  • 4-Way F 090 II Series (WH)
 Connector Part Information
  • KET MG 641041
  • 4-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 750 Ground 1 BK 750 Ground
2 BK 750 Ground 2 BK 750 Ground
3 PU 293 Rear Defog Element Supply Voltage 3 PU 293 Rear Defog Element Supply Voltage
4 - - Not Used 4 - - Not Used
C407 - Trunk Harness to Left Tail Lamp Jumper Harness (Hatchback)

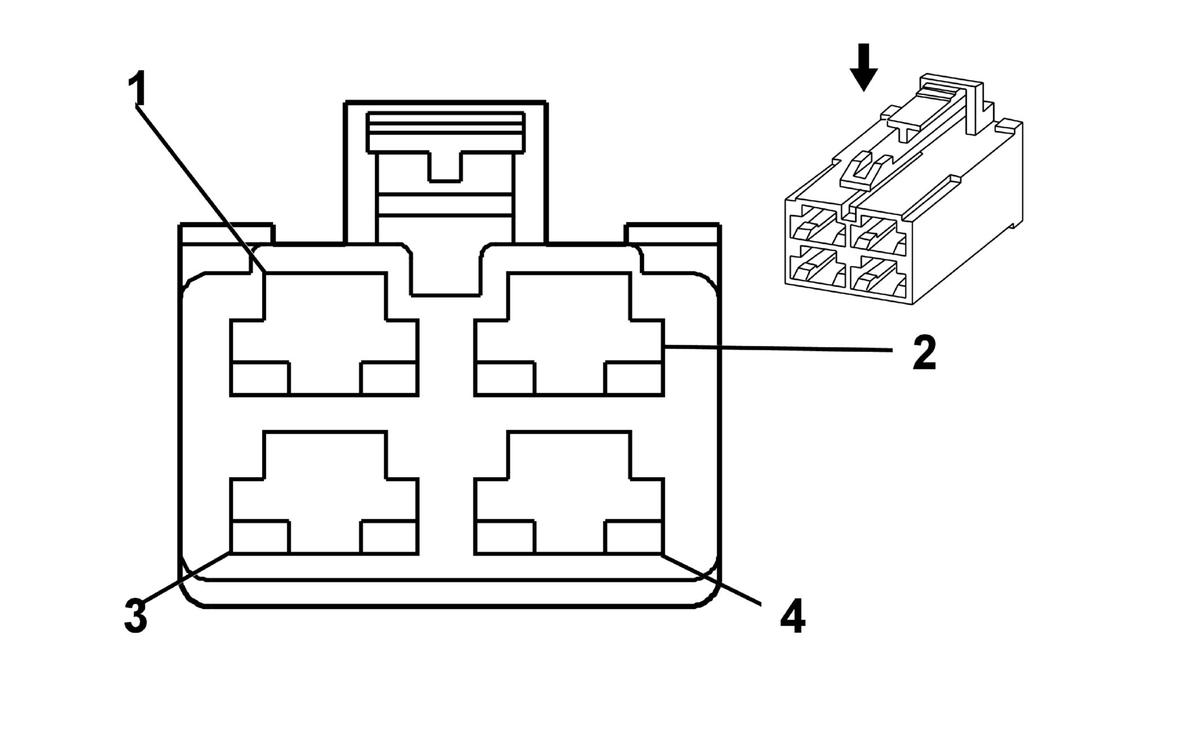

GM1467011Courtesy of GENERAL MOTORS CORP.
GM1467059Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610047
  • 4-Way F 250 Series (WH)
 Connector Part Information
  • KET MG 620046
  • 4-Way M 250 Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage 1 PU 709 Left Park Lamp Supply Voltage
WH/D-BU (North America)
2 YE 20 Stop Lamp Switch Signal 2 YE 20 Stop Lamp Switch Signal
RD (North America)
3 BK 550 Ground 3 BK 550 Ground
BK 550 Ground
4 L-BU 14 Left Turn Signal Lamps Supply Voltage 4 YE 14 Left Turn Signal Lamps Supply Voltage
C408 - Trunk Harness to Right Tail Lamp Jumper Harness (Hatchback)

GM1467011Courtesy of GENERAL MOTORS CORP.
GM1467059Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610047
  • 4-Way F 250 Series (WH)
 Connector Part Information
  • KET MG 620046
  • 4-Way M 250 Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage 1 WH/D-GN 309 Right Park Lamp Supply Voltage
2 YE 20 Stop Lamp Switch Signal 2 RD 20 Stop Lamp Switch Signal
3 BK 550 Ground 3 BK 550 Ground
BK/WH (North America) 550 Ground
4 D-BU 15 Right Turn Signal Lamps Supply Voltage 4 YE 15 Right Turn Signal Lamps Supply Voltage
C417 - Trunk Harness to Left Side Marker Lamp Jumper Harness

GM1467028Courtesy of GENERAL MOTORS CORP.
GM1480207Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
 Connector Part Information
  • KET MG 640322
  • 2-Way M SWP Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage 1 WH 709 Left Park Lamp Supply Voltage
2 BK 550 Ground 2 BK 550 Ground
C418 - Trunk Harness to Right Side Marker Lamp Jumper Harness

GM1467028Courtesy of GENERAL MOTORS CORP.
GM1480207Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
 Connector Part Information
  • KET MG 640322
  • 2-Way M SWP Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage 1 WH 309 Right Park Lamp Supply Voltage
2 BK 550 Ground 2 BK 550 Ground
C420 - Tailgate Harness to Right Backup Lamp/Tail Lamp Jumper Harness (Hatchback)

GM1467042Courtesy of GENERAL MOTORS CORP.
GM1500908Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610398
  • 6-Way F SDL Series (WH)
 Connector Part Information
  • KET MG 620401
  • 6-Way M Connector (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 750 Ground 1 BK/WH 550 Ground
2 BK 750 Ground 2 BK 550 Ground
3 L-GN 24 Backup Lamp Supply Voltage 3 WH 24 Backup Lamp Supply Voltage
4 RD 122 Rear Fog Lamp Supply Voltage (Except North America) 4 RD 122 Rear Fog Lamp Supply Voltage (Except North America)
5 L-BU 20 Stop Lamp Switch Signal 5 RD 20 Stop Lamp Switch Signal
6 PU 709 Park Lamp 6 WH/D-GN 709 Park Lamp
C420 - Tailgate Harness to Right Backup Lamp/Tail Lamp Jumper Harness (Notchback)

GM1467115Courtesy of GENERAL MOTORS CORP.
GM1467104Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 6-Way F 090 II Series
 Connector Part Information
  • KET MG 642449
  • 6-Way M 090 II Series
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 RD 122 Rear Fog Lamp Supply Voltage 1 WH 122 Rear Fog Lamp Supply Voltage
2 BK 550 Ground 2 BK 550 Ground
BK 550 Ground
3 L-GN 24 Backup Lamp Supply Voltage 3 WH 24 Backup Lamp Supply Voltage
4 D-BU 15 Left Turn Signal Lamps Supply Voltage 4 YE 15 Left Turn Signal Lamps Supply Voltage
5 BN/WH 309 Left Park Lamp Supply Voltage 5 WH/BK 309 Left Park Lamp Supply Voltage
6 YE 20 Stop Lamp Switch Signal 6 RD 20 Stop Lamp Switch Signal
C421 - Tailgate Harness to Left Backup Lamp/Tail Lamp Jumper Harness (Notchback)

GM1467115Courtesy of GENERAL MOTORS CORP.
GM1467104Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 6-Way F 090 II Series
 Connector Part Information
  • KET MG 642449
  • 6-Way M 090 II Series
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 RD 122 Rear Fog Lamp Supply Voltage 1 RD 122 Rear Fog Lamp Supply Voltage
2 BK 550 Ground 2 BK 550 Ground
3 L-GN 24 Backup Lamp Supply Voltage 3 WH 24 Backup Lamp Supply Voltage
4 L-BU 14 Left Turn Signal Lamps Supply Voltage 4 L-BU 14 Left Turn Signal Lamps Supply Voltage
5 PU 709 Left Park Lamp Supply Voltage 5 WH/D-GN 709 Left Park Lamp Supply Voltage
6 YE 20 Stop Lamp Switch Signal 6 YE 20 Stop Lamp Switch Signal
C421 - Tailgate Harness to Left Backup Lamp and Tail Lamp Jumper Harness (Hatchback)

GM1467042Courtesy of GENERAL MOTORS CORP.
GM1500908Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610398
  • 6-Way F SDL Series (WH)
 Connector Part Information
  • KET MG 620401
  • 6-Way M Connector (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 750 Ground 1 BK/WH 550 Ground
2 BK 750 Ground 2 BK 550 Ground
3 L-GN 24 Backup Lamp Supply Voltage 3 WH 24 Backup Lamp Supply Voltage
4 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps) 4 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps)
5 L-BU 20 Stop Lamp Switch Signal 5 RD 20 Stop Lamp Switch Signal
6 PU 709 Park Lamp 6 WH/D-GN 709 Park Lamp
C422 Tailgate Harness to License Lamps Jumper Harness (Hatchback)

GM1467049Courtesy of GENERAL MOTORS CORP.
GM1467068Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610489
  • 2-Way F 090 (2.3 mm) Series (WH)
 Connector Part Information
  • KET MG 620490
  • 2-Way M 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 750 Ground 1 WH 750 Ground
2 PU 709 Left Park Lamp Supply Voltage 2 BK 709 Left Park Lamp Supply Voltage
C422 Tailgate Harness to License Lamps Jumper Harness (Notchback)

GM1467049Courtesy of GENERAL MOTORS CORP.
GM1467068Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610489
  • 2-Way F 090 (2.3 mm) Series (WH)
 Connector Part Information
  • KET MG 620490
  • 2-Way M 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage 1 BK 709 Left Park Lamp Supply Voltage
2 BK 1250 Ground 2 WH 1250 Ground
C423 - Floor Harness to Left Backup Lamp/Tail Lamp Jumper Harness (Optional)

GM1467119Courtesy of GENERAL MOTORS CORP.
GM1467085Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641053
  • 8-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 650 Ground 1 BK 650 Ground
2 BK 650 Ground 2 BK 650 Ground
3 BK 650 Ground 3 BK 650 Ground
4 PU 709 Left Park Lamp Supply Voltage 4 PU 709 Left Park Lamp Supply Voltage
5 L-BU 20 Stop Lamp Switch Signal 5 L-BU 20 Stop Lamp Switch Signal
6 L-GN 24 Backup Lamp Supply Voltage 6 L-GN 24 Backup Lamp Supply Voltage
7 L-BU 14 Left Turn Signal Lamp Supply Voltage 7 L-BU 14 Left Turn Signal Lamp Supply Voltage
8 RD 122 Rear Fog Lamp Supply Voltage 8 RD 122 Rear Fog Lamp Supply Voltage
C424 - Floor Harness to Right Backup Lamp/Tail Lamp Jumper Harness (Optional)

GM1467119Courtesy of GENERAL MOTORS CORP.
GM1467085Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641053
  • 8-Way M 090-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 550 Ground 1 BK 550 Ground
2 BK 550 Ground 2 BK 550 Ground
3 BK 550 Ground 3 BK 550 Ground
4 BN/WH 309 Left Park Lamp Supply Voltage 4 BN/WH 309 Left Park Lamp Supply Voltage
5 L-BU 20 Stop Lamp Switch Signal 5 L-BU 20 Stop Lamp Switch Signal
6 L-GN 24 Backup Lamp Supply Voltage 6 L-GN 24 Backup Lamp Supply Voltage
7 D-BU 15 Left Turn Signal Lamp Supply Voltage 7 D-BU 15 Left Turn Signal Lamp Supply Voltage
8 RD 122 Rear Fog Lamp Supply Voltage 8 RD 122 Rear Fog Lamp Supply Voltage
C425 - Floor Harness to Left Side Marker Lamp Jumper Harness (Optional)

GM1467028Courtesy of GENERAL MOTORS CORP.
GM1480207Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
 Connector Part Information
  • KET MG 640322
  • 2-Way M SWP Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage 1 WH 709 Left Park Lamp Supply Voltage
2 BK 650 Ground 2 BK 650 Ground
C426 - Floor Harness to Right Side Marker Lamp Jumper Harness (Optional)

GM1467028Courtesy of GENERAL MOTORS CORP.
GM1480207Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
 Connector Part Information
  • KET MG 640322
  • 2-Way M SWP Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage 1 WH 309 Right Park Lamp Supply Voltage
2 BK 550 Ground 2 BK 550 Ground
About FixVault
