Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

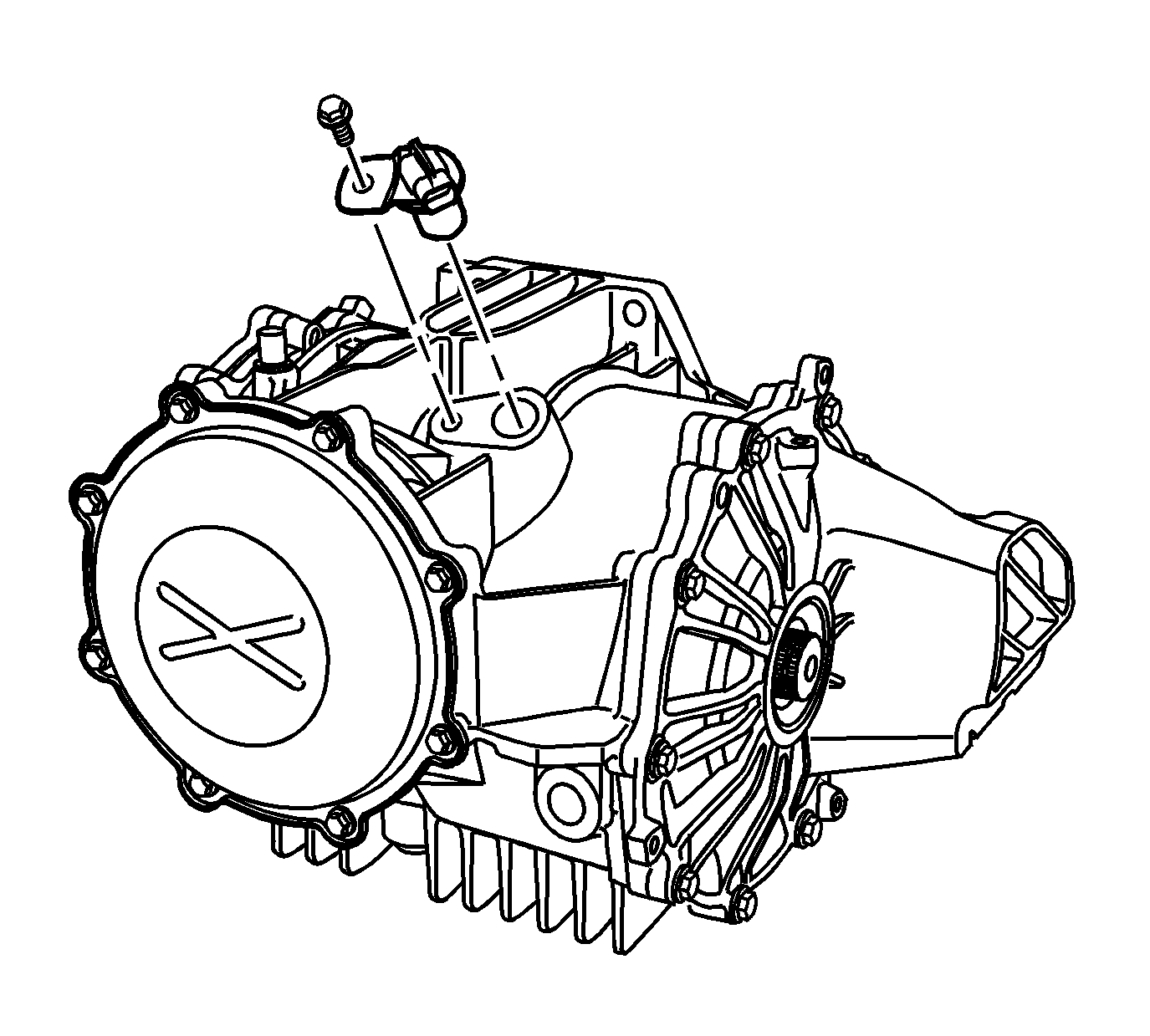

Fig 1: View Of Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Lubricate the O-ring seal of the VSS with clean engine oil.
Install the VSS into the hole on the axle case.

NOTE: Refer to Fastener Notice .

Install the VSS retaining bolt the differential.
Tighten: Tighten the vehicle speed sensor retaining bolt to 10 N.m (89 lb in).

Fig 2: View Of Vehicle Speed Sensor (VSS) Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the sensor.
Lower the vehicle.
