Navigation System Schematics

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

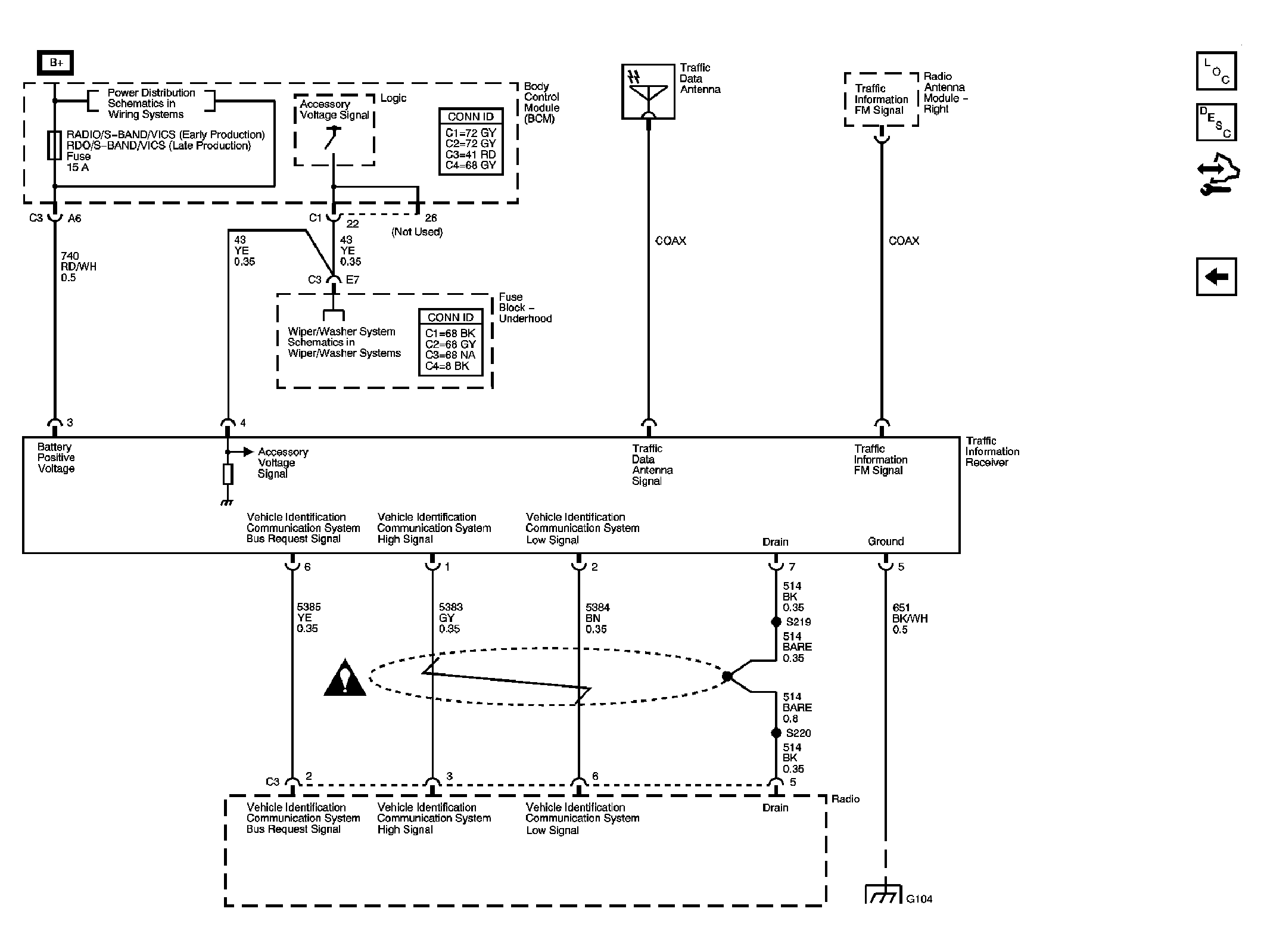

Fig 1: Schematics - Wiring Diagram (Except Japan)

Courtesy of GENERAL MOTORS CORP.

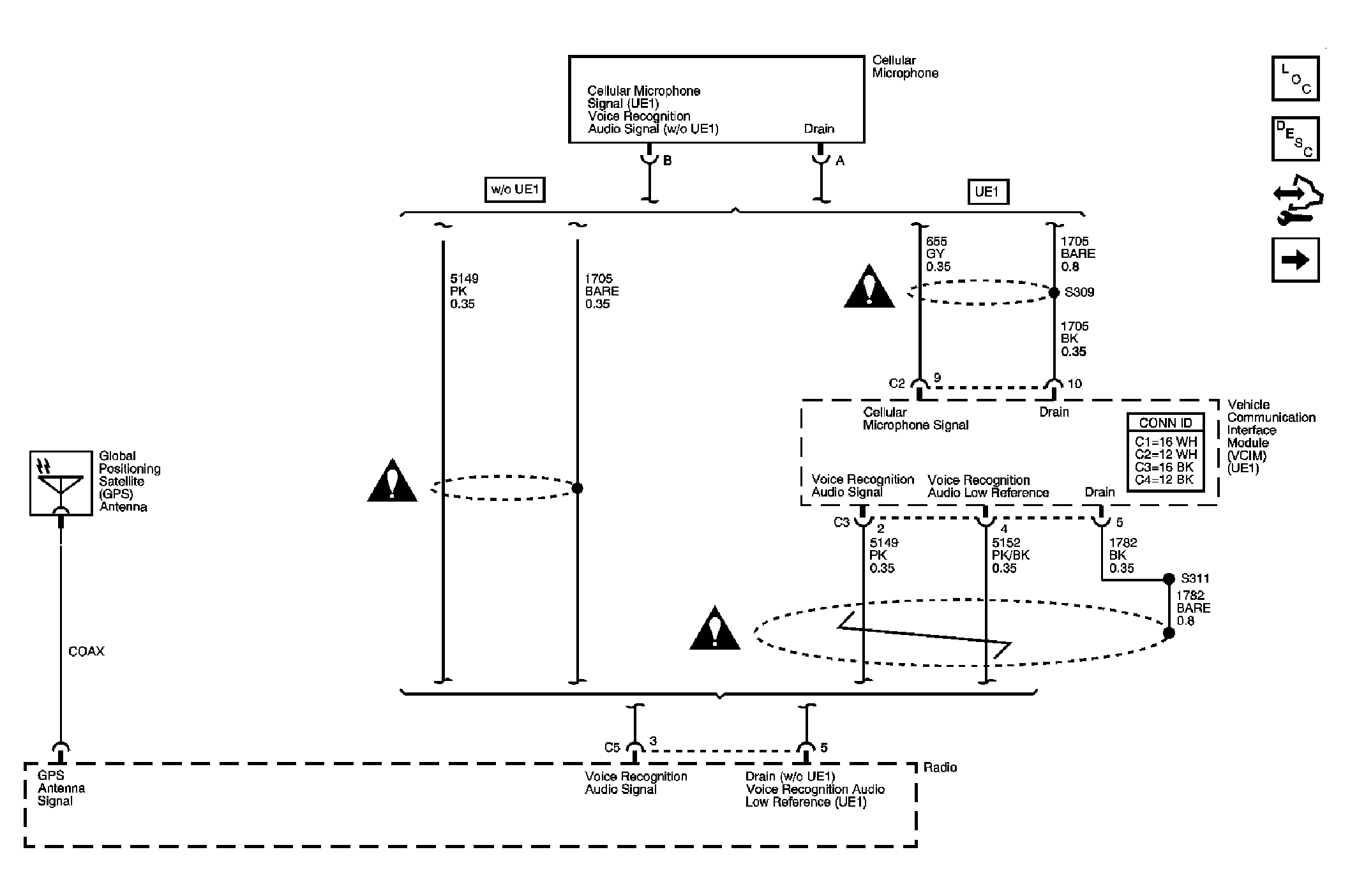

Fig 2: Schematics - Wiring Diagram (Japan (UZD))

Courtesy of GENERAL MOTORS CORP.
