Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

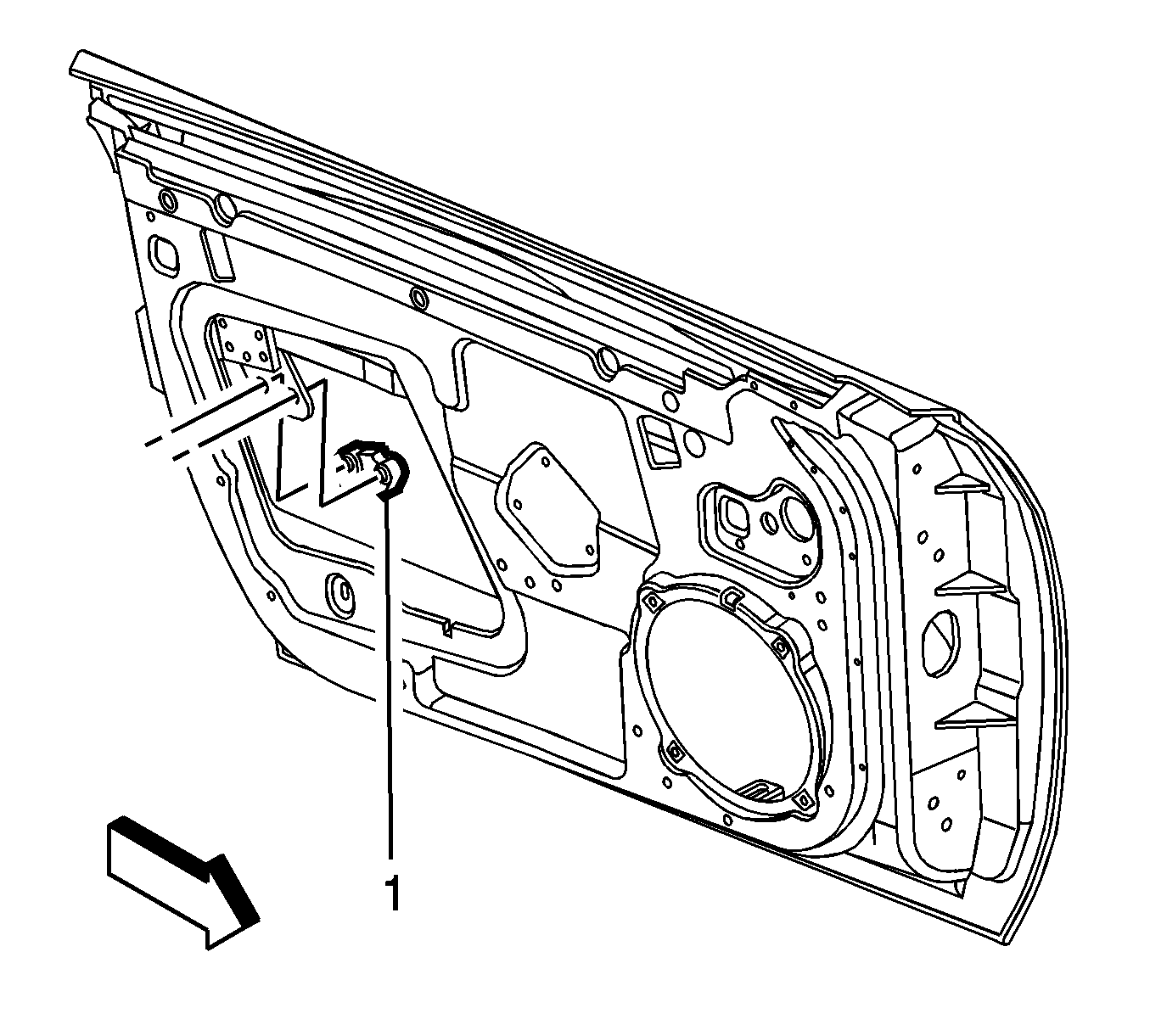

    Fig 1: Inflatable Restraint Side Impact Sensor & Retaining Bolts
    GM1226209Courtesy of GENERAL MOTORS CORP.
  1. Install the sensor to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the retaining bolts to the inflatable restraint side impact sensor.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  3. Install the front side door trim panel. Refer to Front Side Door Trim Panel Replacement - Driver Side or Front Side Door Trim Panel Replacement - Passenger Side .
  4. Enable the SIR system. Refer to SIR Disabling and Enabling .
