Tire Pressure Monitoring System Component Views

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

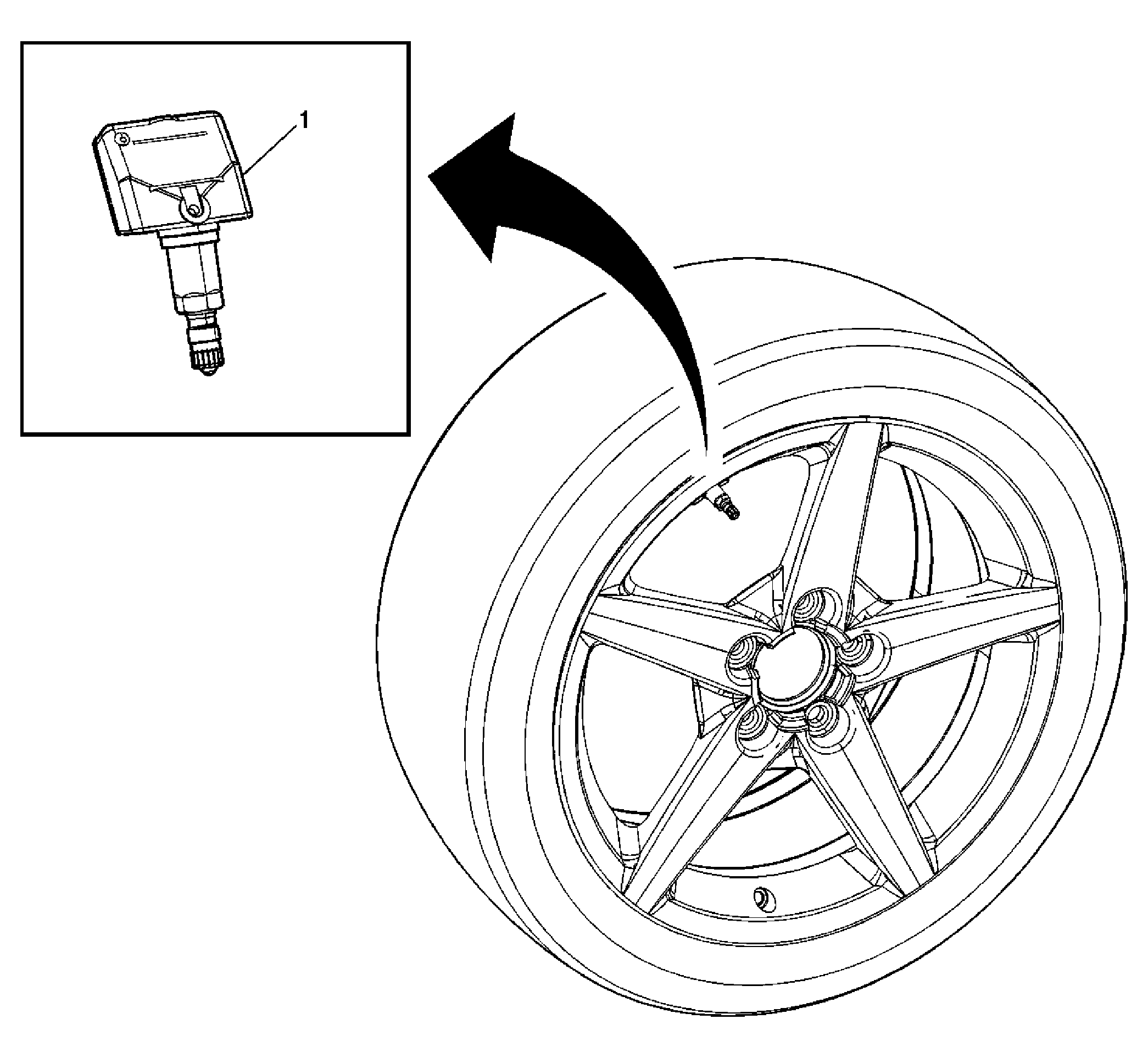

Fig 1: Tire Pressure Monitor Sensor (Typical)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tire Pressure Monitor Sensor
