Roof Lift Off Panel Front Latch Handle Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

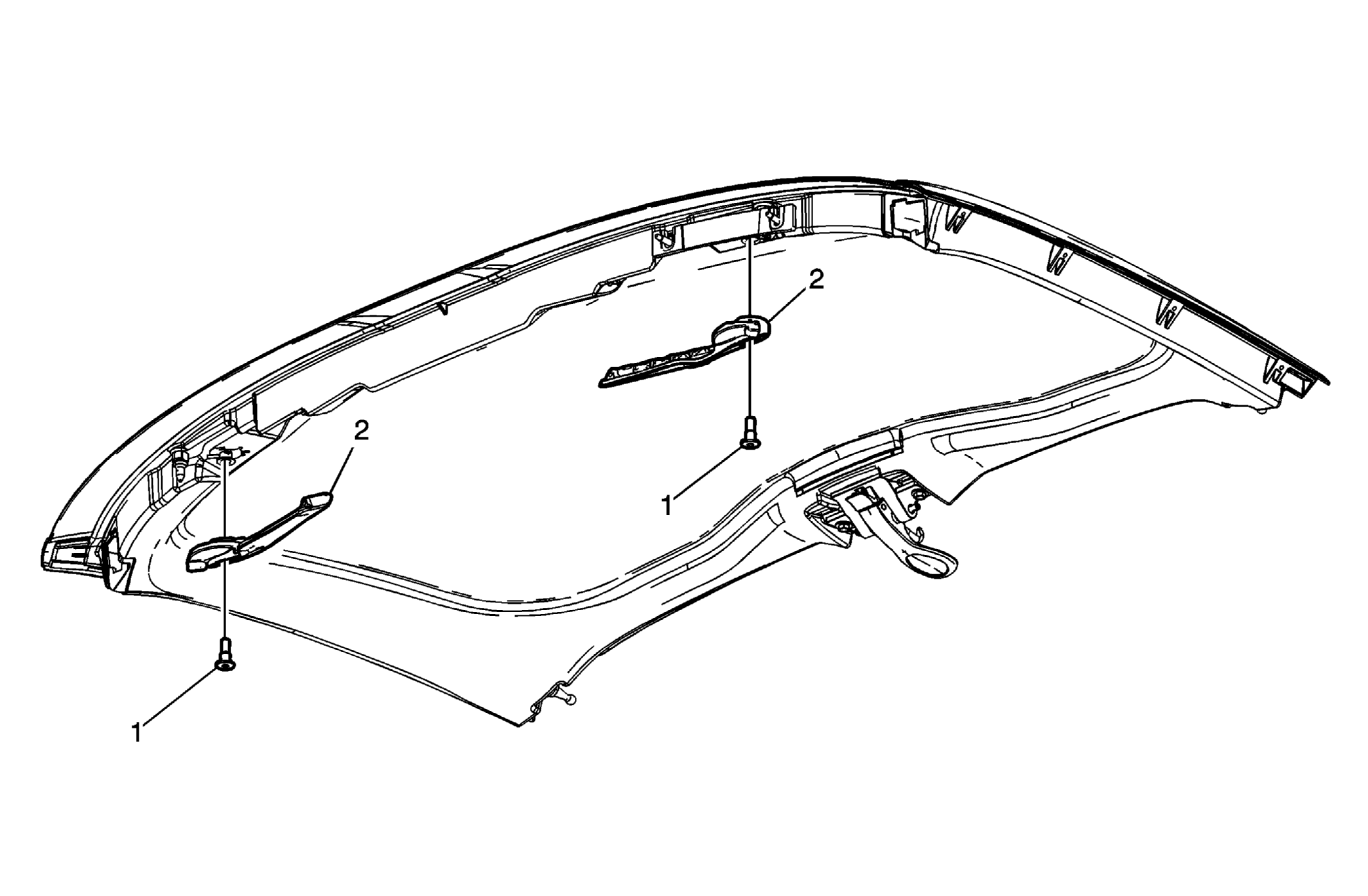

Fig 1: Replacing Roof Lift Off Panel Front Latch Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bolts, Front Lift Off Panel Latch Handle (Qty: 2) Tighten: 18 N.m (13 lb ft)
2	Handles, Lift Off Panel Front Latch (Qty: 2)
