Radio Front Speaker Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

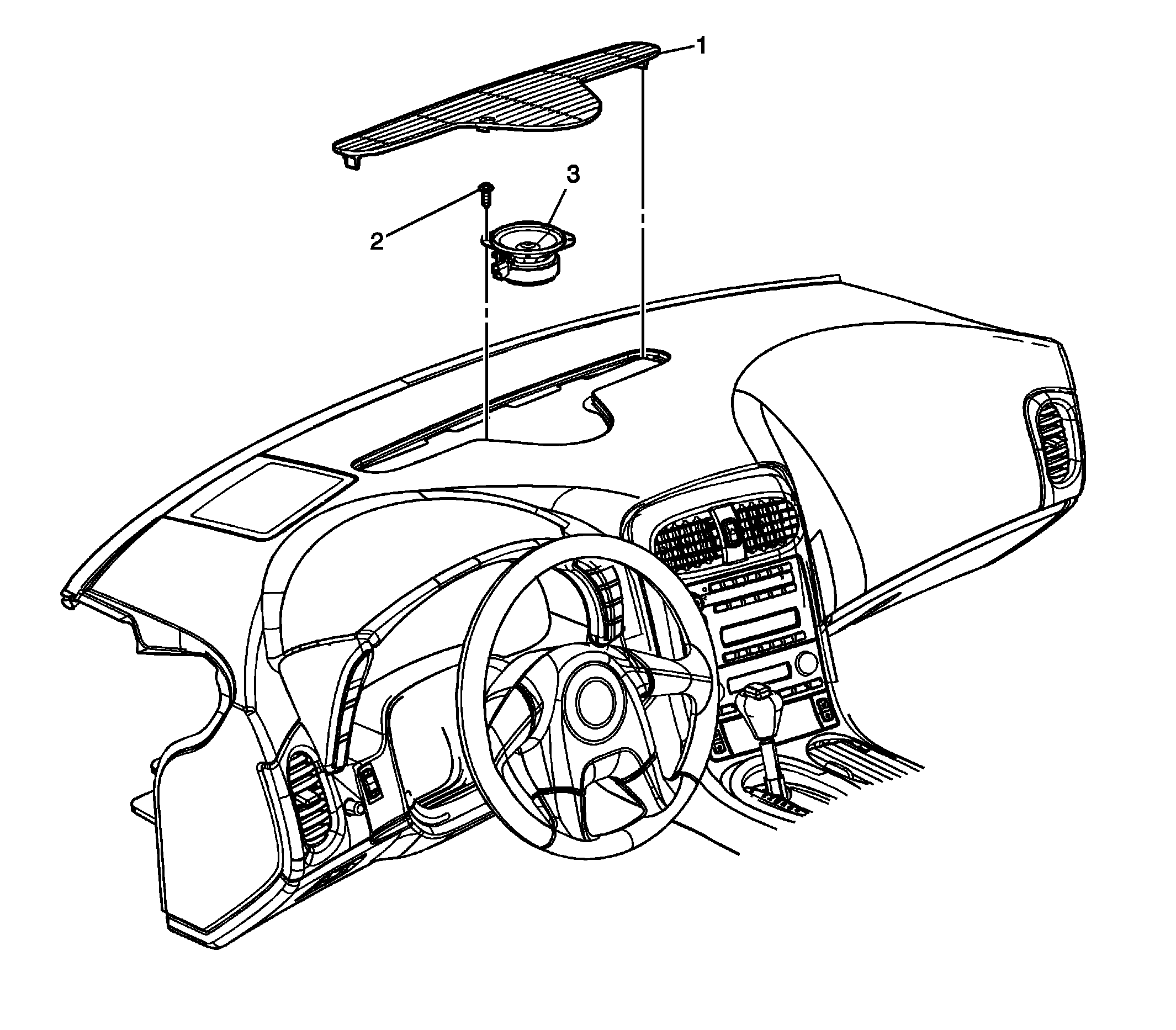

Fig 1: View Of Front Speaker Grille & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Defroster Grill Refer to Defroster Grille Replacement .
2	Speaker Screws (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Speaker Assembly
