Speaker Replacement - Front Door

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

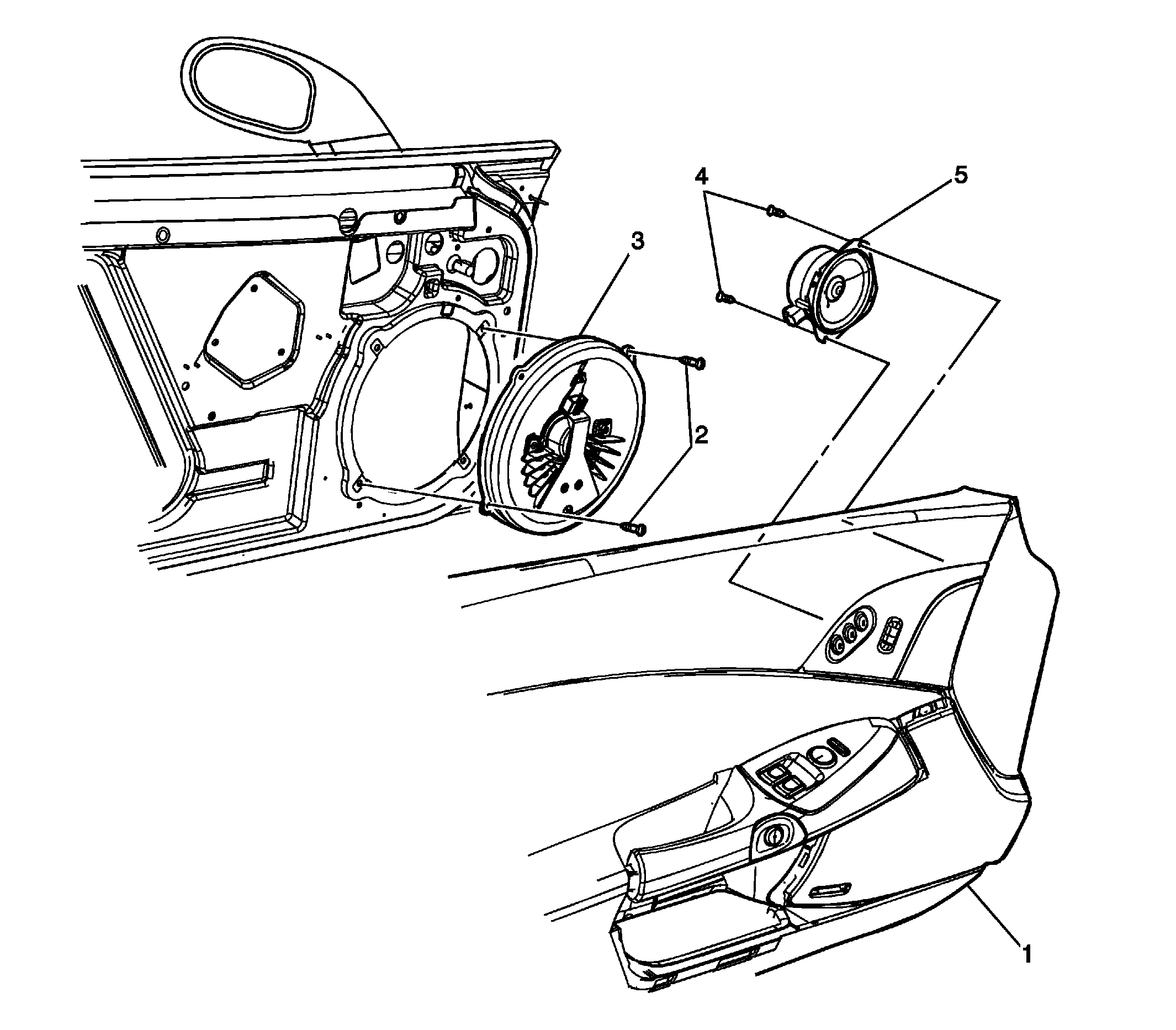

Fig 1: View Of Front Door Speakers & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Panel, Door Trim Refer to Front Side Door Trim Panel Replacement - Driver Side or Front Side Door Trim Panel Replacement - Passenger Side . Tip: Left side shown, right side similar.
2	Screws, Door Speaker (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Speaker, Door Lower
4	Screws, Door Speaker (Qty: 4) Tighten: 2 N.m (18 lb in)
5	Speaker, Door Upper
