High Mounted Stop Lamp Replacement

WARNING: This page is about a different car, the 2007 Pontiac Torrent and 2007 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

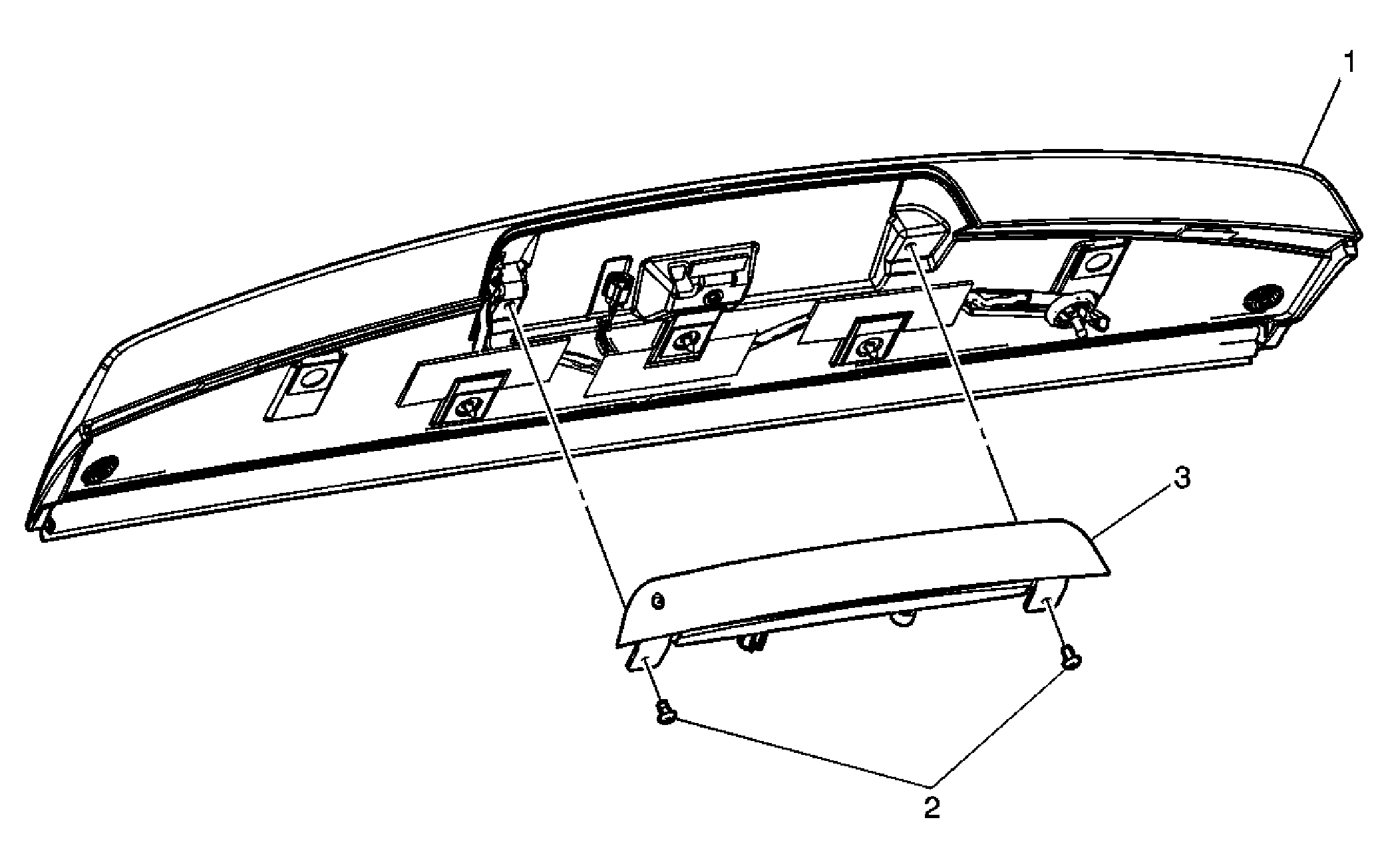

Fig 1: View Of High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear End Spoiler Assembly Refer to Rear Spoiler Replacement .
2	Center High Mounted Stop Lamp Screw (Qty: 2) Tighten: 2.5 N.m (22 lb in)
3	Center High Mounted Stop Lamp Assembly Tip: Disconnect the rear washer hose from the rear washer nozzle. Remove the rear washer nozzle from the stop lamp assembly if replacing. Disconnect the electrical connector.
