License Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Pontiac Torrent and 2007 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

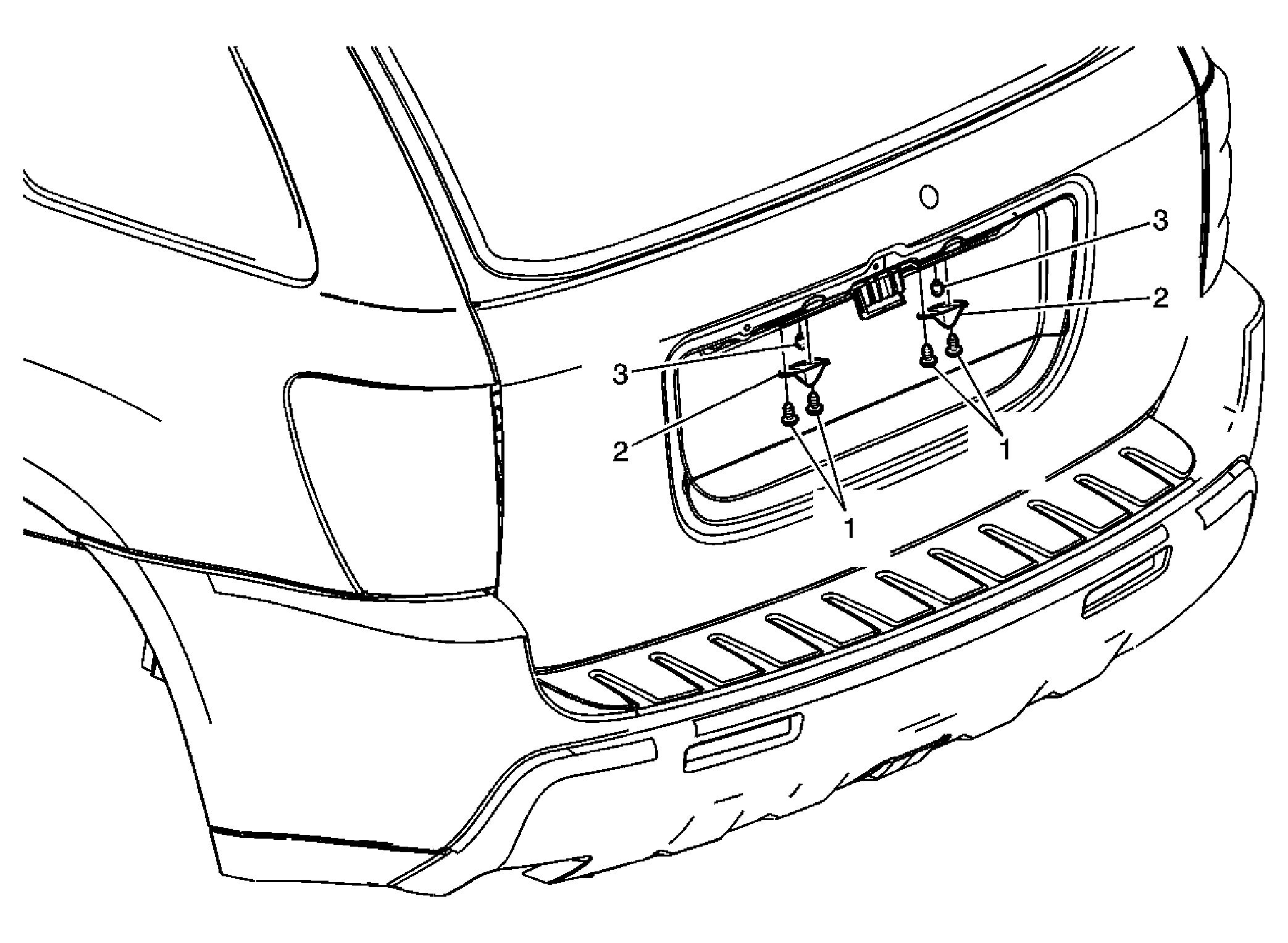

Fig 1: View Of License Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	License Lamp Lens Screw (Qty: 4) Tighten: 2.5 N.m (22 lb in)
2	License Lamp Lens (Qty: 2)
3	License Lamp Bulb
