Body Control System Schematics

WARNING: This page is about a different car, the 2007 Isuzu Ascender, 2007 GMC Envoy, 2007 Chevrolet TrailBlazer, and 2007 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

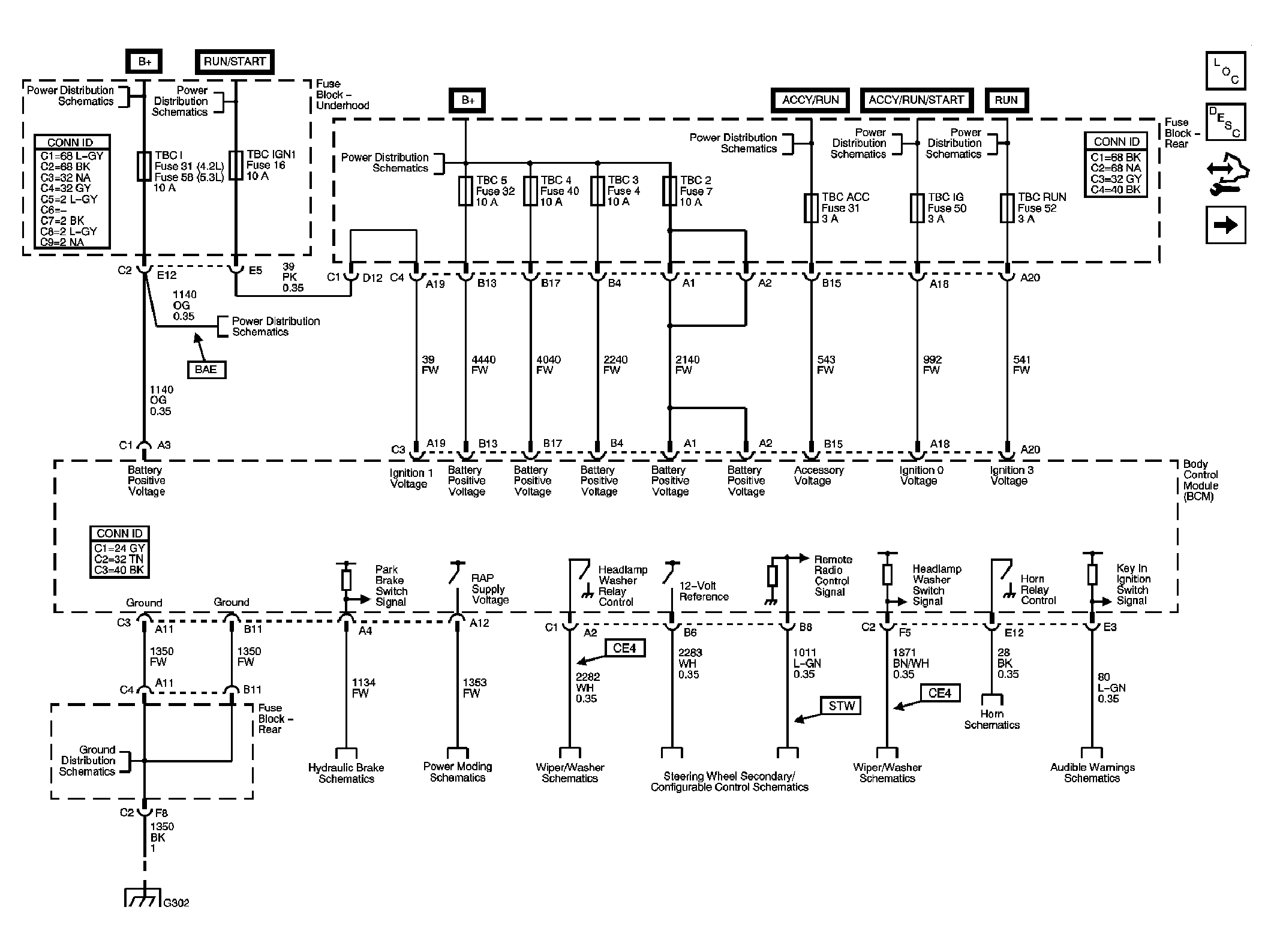

Fig 1: BCM Module Power & Ground Schematic

GM1748034

Courtesy of GENERAL MOTORS CORP.

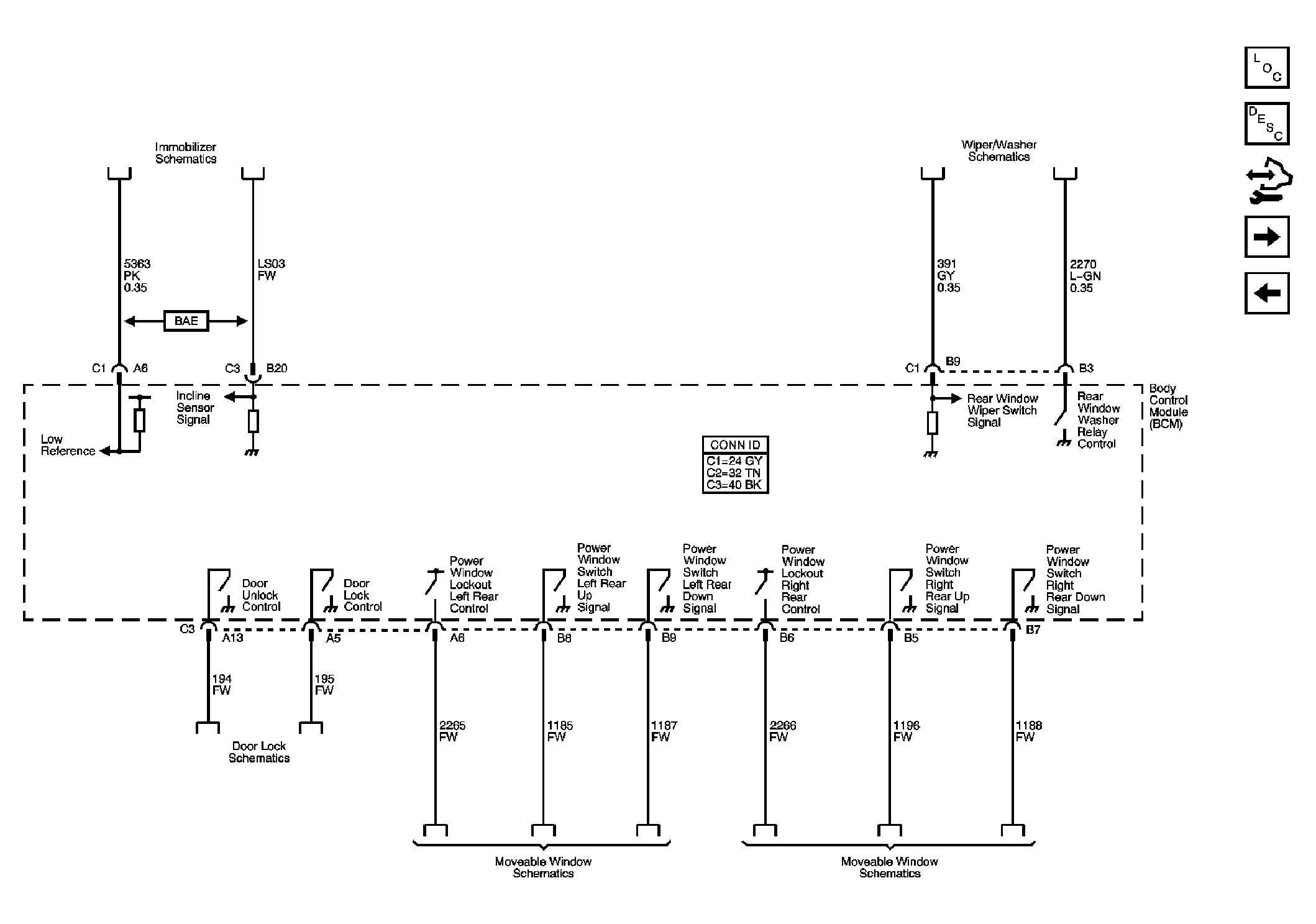

Fig 2: BCM Controlled/Monitored Subsystem References Schematic - 1 of 3

GM1748036

Courtesy of GENERAL MOTORS CORP.

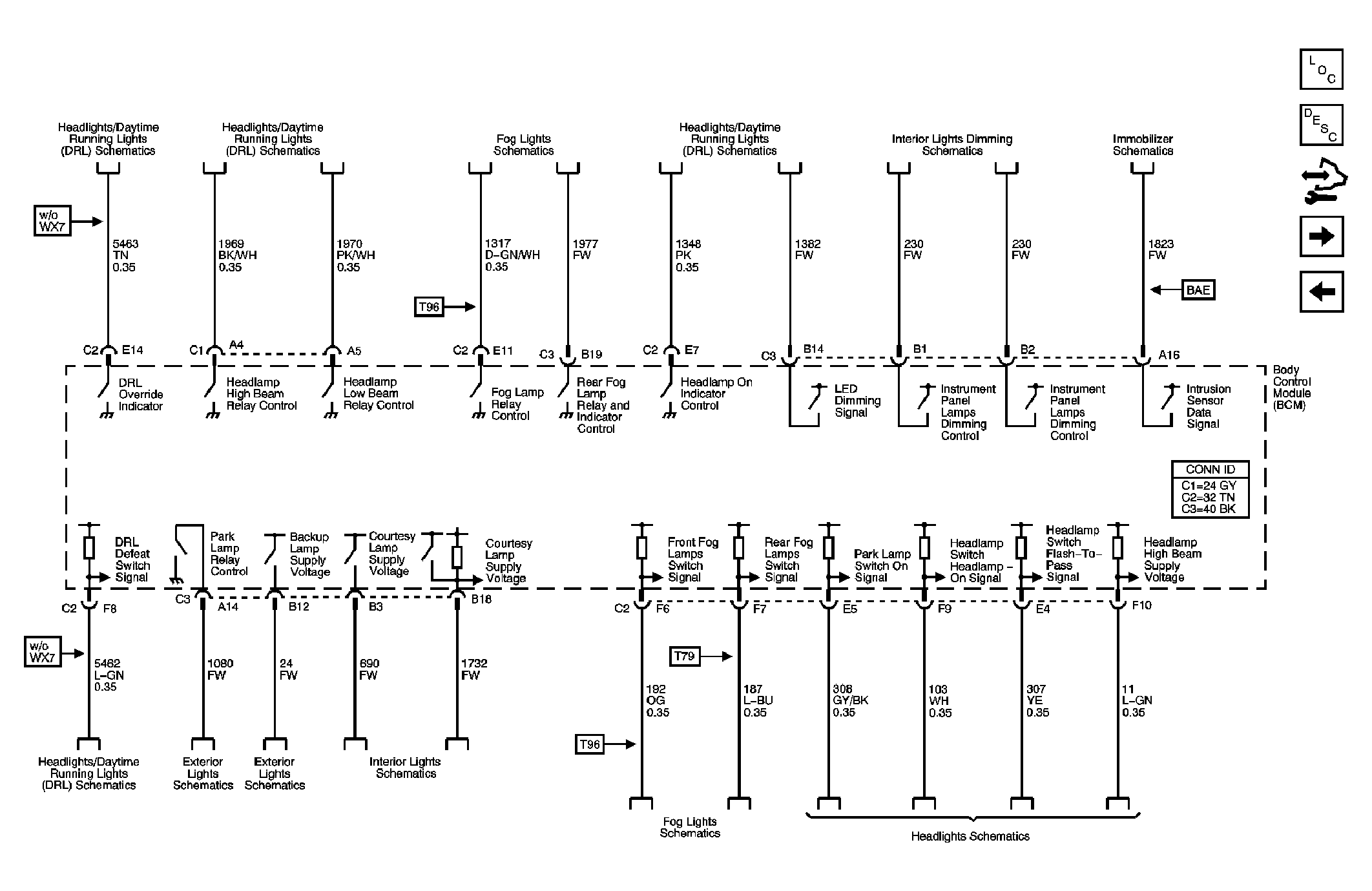

Fig 3: BCM Controlled/Monitored Subsystem References Schematic- 2 of 3

GM1748037

Courtesy of GENERAL MOTORS CORP.

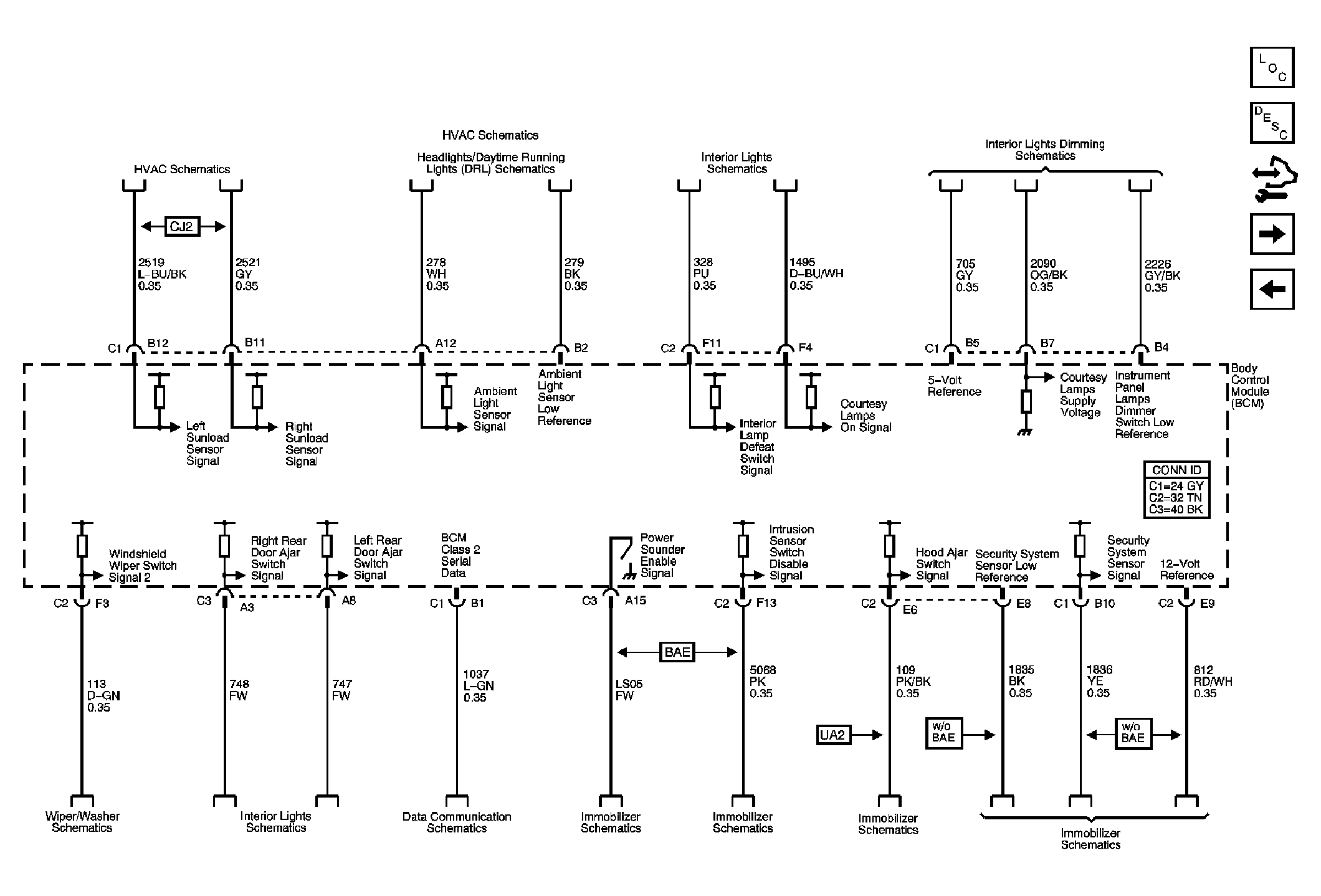

Fig 4: BCM Controlled/Monitored Subsystem References Schematic - 3 of 3

GM1748038

Courtesy of GENERAL MOTORS CORP.

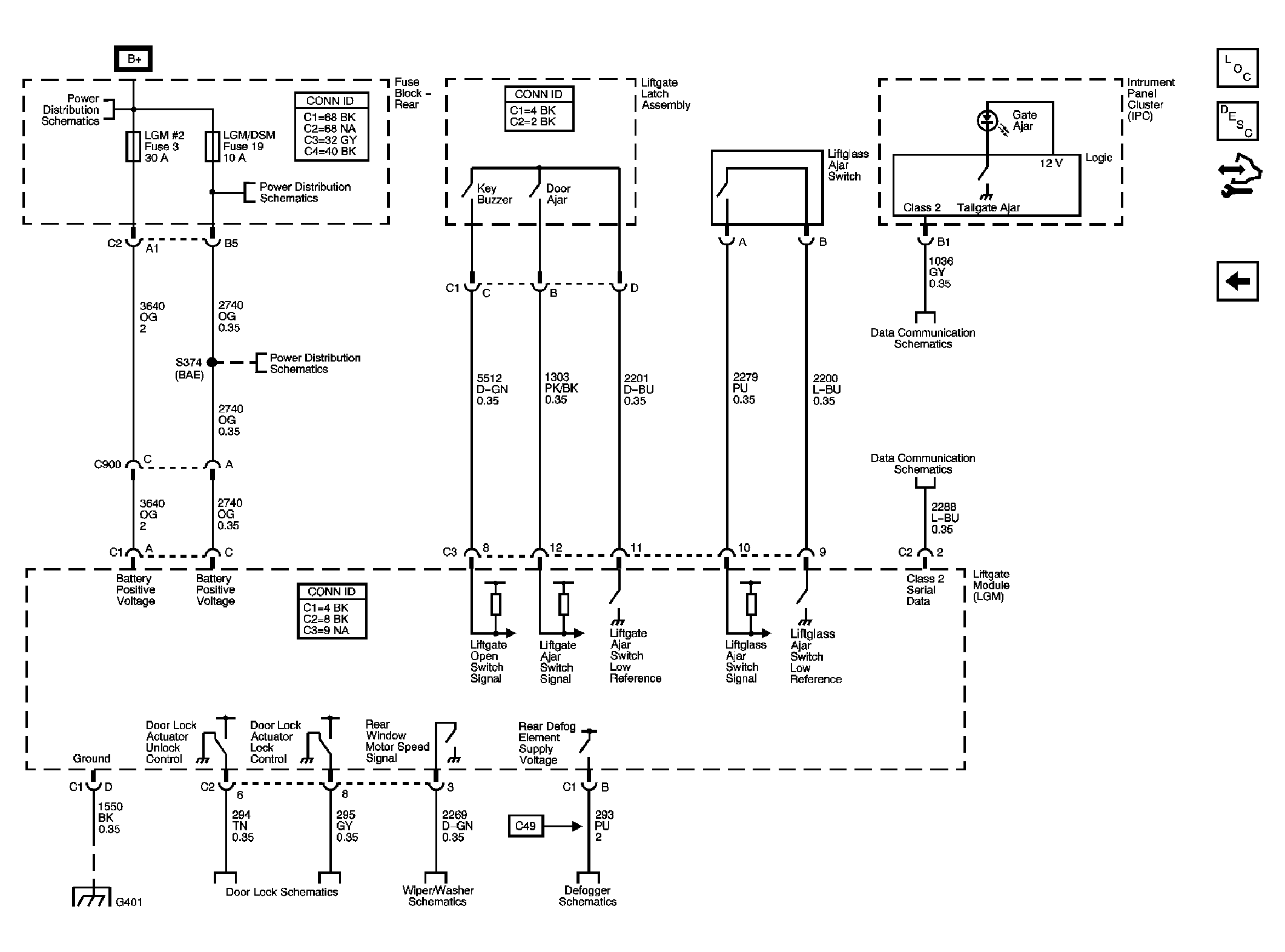

Fig 5: Liftgate Module Schematic

GM1747704

Courtesy of GENERAL MOTORS CORP.
