Door Lock/Indicator Schematics

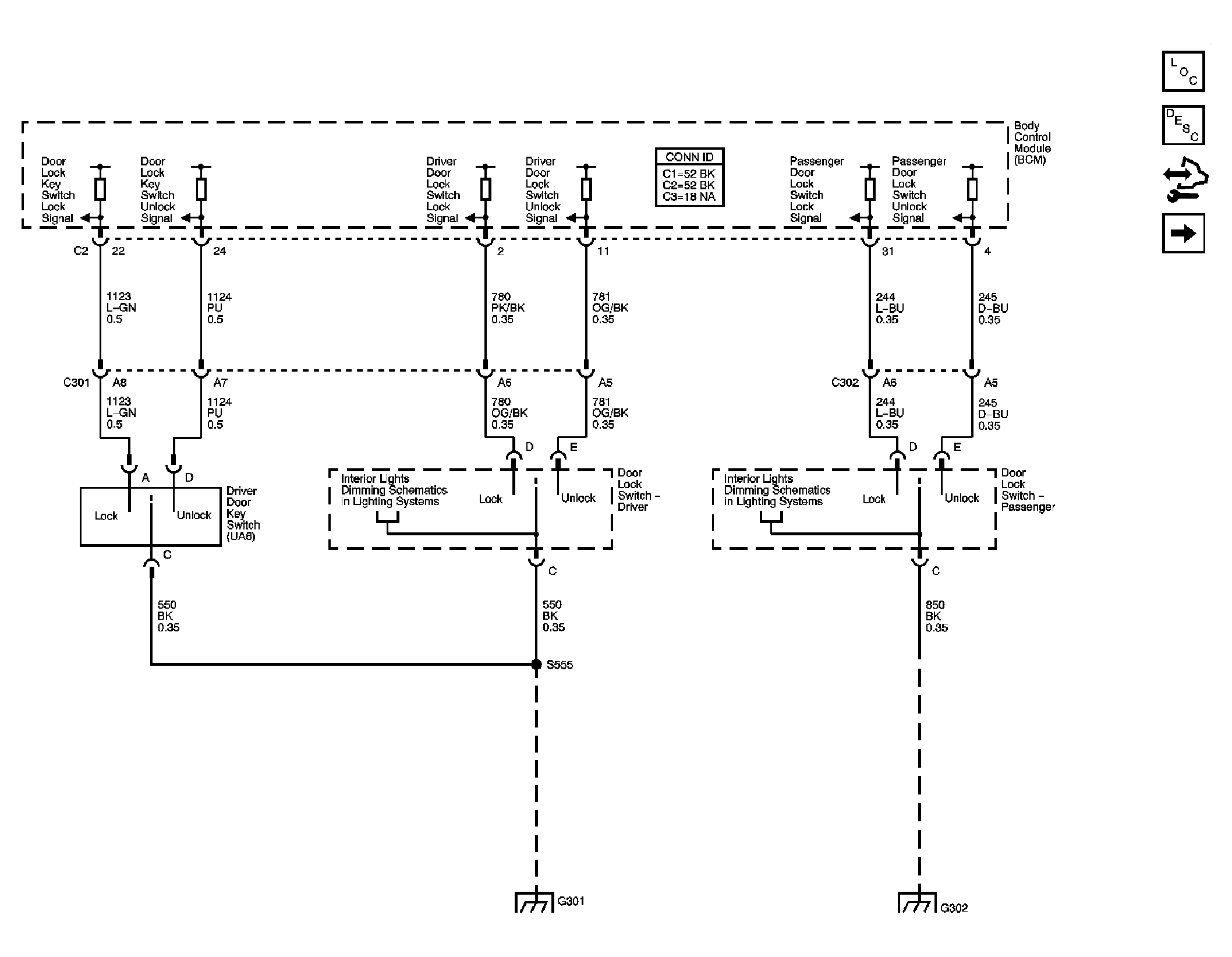

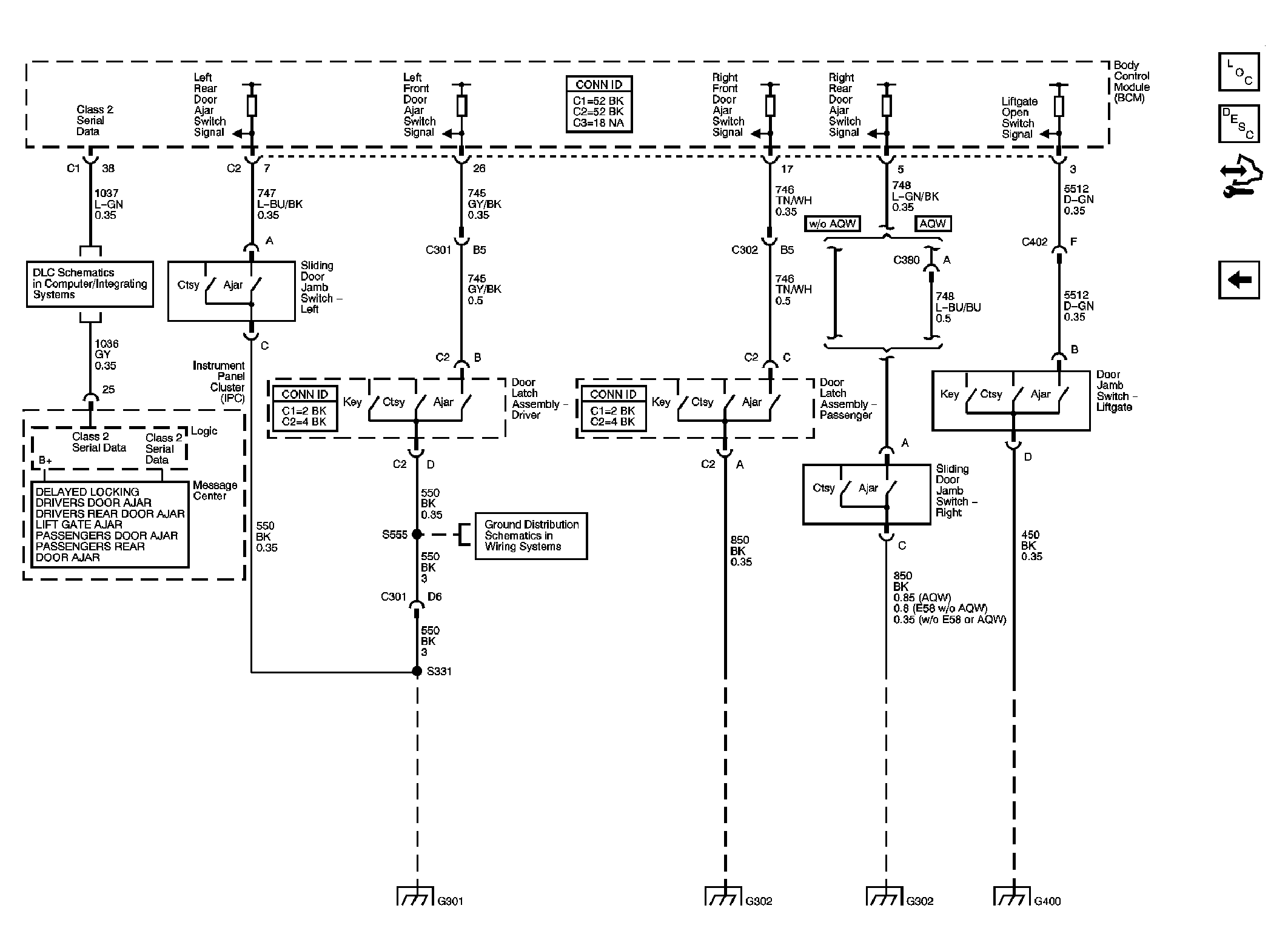

Fig 1: Switches Schematic

Courtesy of GENERAL MOTORS CORP.

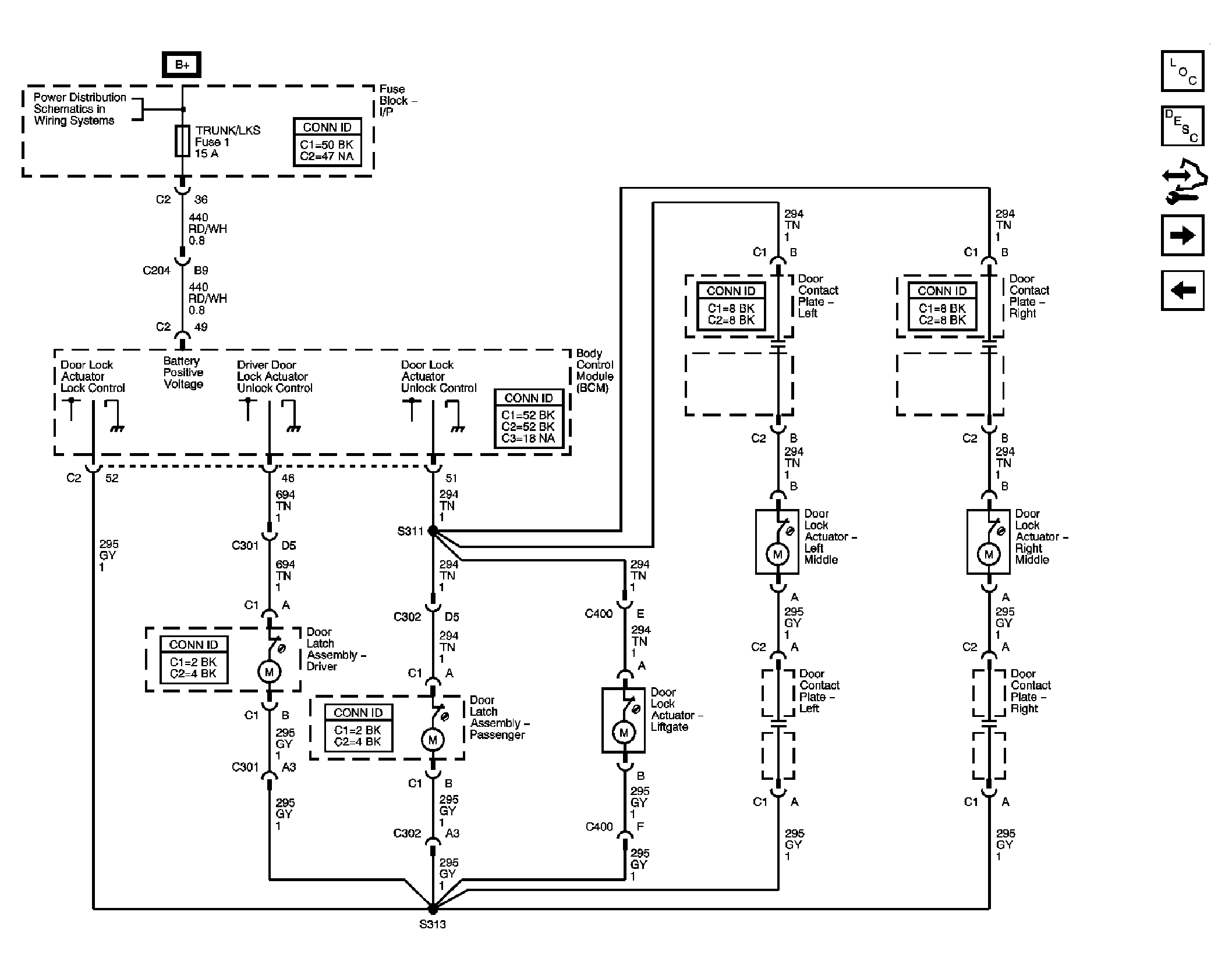

Fig 2: Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Indicators Schematic

Courtesy of GENERAL MOTORS CORP.
