Assist Handle Replacement - Front

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

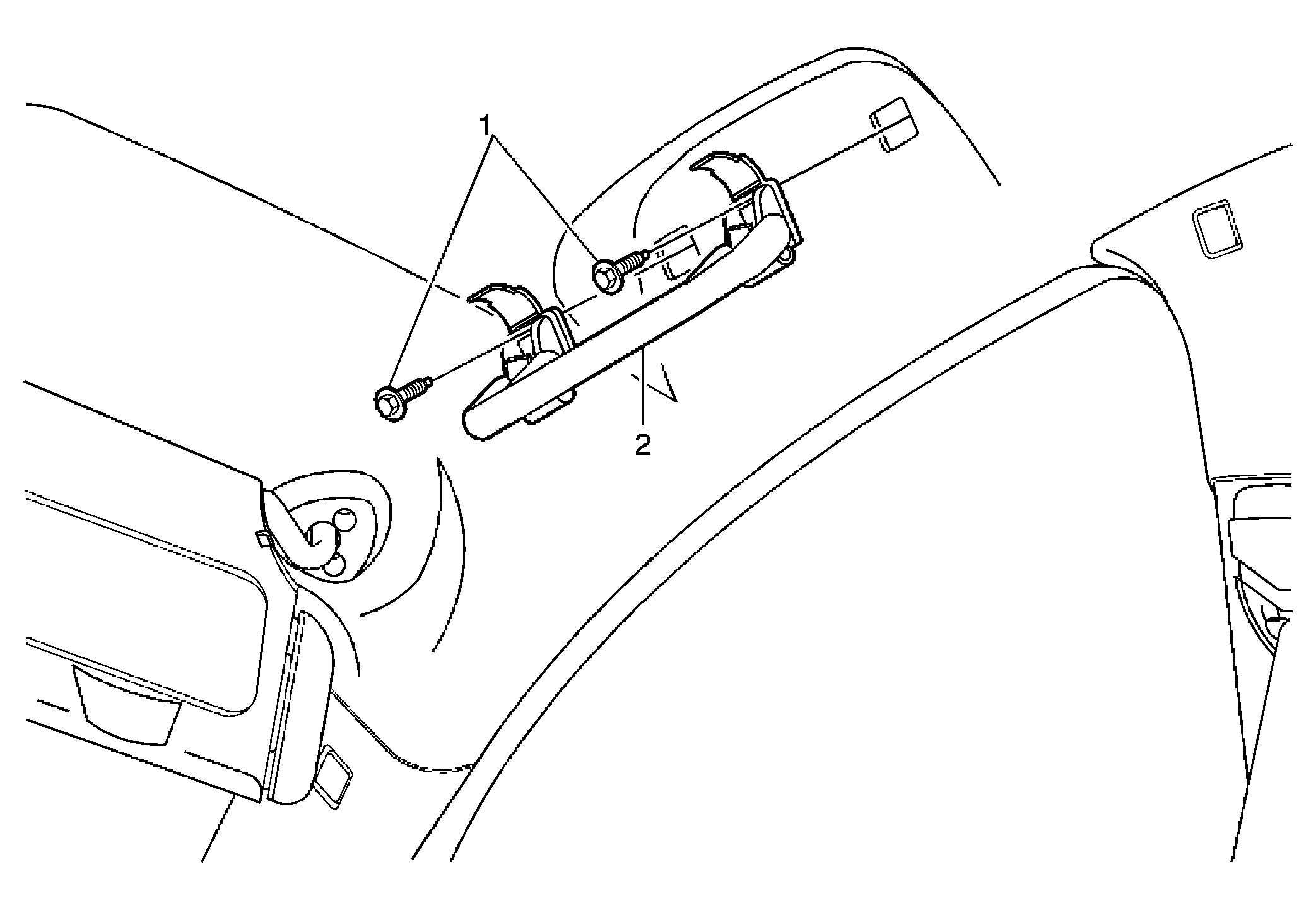

Fig 1: Assist Handle - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screw, Roof Rail Front Assist Handle (Qty: 2) Tip: Use a small flat bladed tool to lift up the plastic cover to expose the screws. Tighten: 9 N.m (80 lb in)
2	Handle, Roof Rail Front Assist
